BE-AC101P｜For small diameter tubes Optical Bubble Sensor BE-AH

Download

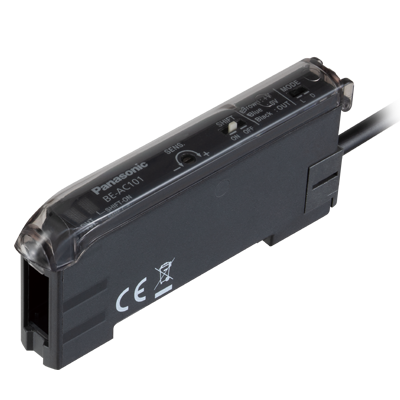

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

Product Number

BE-AC101P

Part Number

BE-AC101P

Product

For small diameter tubes Optical Bubble Sensor

Details

Sensitivity adjustment unit

Product Name

 For small diameter tubes Optical Bubble Sensor BE-AH

Contact Us

*Specifications and design of the products are subject to change without notice for the product improvement.

Spec Detail

Specifications and design of the products are subject to change without notice for the product improvement.
ItemSpecifications
Part NumberBE-AC101P
Product NumberBE-AC101P
Product detailsSensitivity adjustment unit
Products NameFor small diameter tubes Optical Bubble Sensor
Applicable regulationsCE Marking(EMC Directive, RoHS Directive)
Supply voltage5 to 24 V DC ±10% Ripple P-P 10% or less
Current consumption900 mW or less
OutputPNP open-collector transistor
• Maximum source current: 16 mA
• Applied voltage: 30 V DC or less (between output and +V)
• Residual voltage: 2 V or less (source current at 16 mA)
Output : Output operationLight-ON (Liquid-absent-ON) /
Dark-ON (Liquid-present-ON) selectable
(Note): Operation mode switch is set to Dark-ON (Liquid-present-ON) by default.
Output : Short-circuit protectionIncorporated
Response time:When detecting bubble80 μs or less,
(Note):The indicated response time is a typical value in the use of a compatible tube. Note that actual response time varies depending on the size, light transmission degree, surface condition, etc. of the tube used.
Response time:When detecting liquid200 μs or less
(Note):The indicated response time is a typical value in the use of a compatible tube. Note that actual response time varies depending on the size, light transmission degree, surface condition, etc. of the tube used.
Output indicatorOrange LED (lights up when the output is ON)
SHIFT ON indicatorGreen LED (lights up when sensitivity SHIFT switch is ON)
Sensitivity adjuster18-turn potentiometer
(Note) :To adjust the sensitivity, turn the sensitivity adjuster slowly using a slotted screwdriver (not provided). Turning the adjuster with excessive force can cause malfunction. The sensitivity adjuster is a multi-rotational variable resistor. When the adjuster is turned fully to one side, the clutch mechanism allows the dial to rotate freely with a clicking sound. The clicking sound may not be heard or very low to notice.
If the output indicator does not light when the sensitivity adjuster is turned, check the tube installation condition. If the air gap is not correctly detected during the replacement of the tube, adjust the sensitivity adjuster again.
Sensitivity SHIFT switchShifts the set sensitivity level
(Note): The sensitivity SHIFT switch is set to OFF by default.
Protection circuitsPower supply reverse polarity protection,
Output reverse polarity protection
Environmental resistance : Ambient temperature-10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed),Storage: -20 to +70 ℃ -4 to +158 ℉
Environmental resistance : Ambient humidity35 to 85 % RH, Storage: 35 to 85 % RH
Environmental resistance : Voltage withstandability1,000 V AC for one min. between all supply terminals connected together and enclosure
Environmental resistance : Insulation resistance20 MΩ or more, with 250 V DC megger between all supply terminals connected together and enclosure
Environmental resistance : Vibration resistance10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each
Environmental resistance : Shock resistance100 m/s2 acceleration in X, Y, and Z directions three times each
MaterialEnclosure: PBT, Case cover: Polycarbonate
Cable0.2 mm2 3-core cabtyre cable 1 m 3.281 ft long
Cable extensionExtension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.
(Note): Confirm that the power supply voltage at the end of cable is more than 4.5 V when using an extension of over 20 m 65.617 ft.
WeightNet weight: 35 g approx., Gross weight: 80 g approx.
