Amplifier Built-in / U-shaped Micro Photoelectric Sensor [Compact / Connector built-in type] PM-65

  • Basic Information

  • Applications

  • Order guide

  • Option

  • Specifications

  • Dimensions

  • Circuit/ Wiring

  • Sensing characteristics

  • Cautions For Use

------------------------------ Tab1 showing ------------------------------

Basic Information

One step ahead in performance and mounting ease

UL/C-UL,CE,UKCA Approved

UL : Recognition

------------------------------ Tab2 showing ------------------------------

Applications

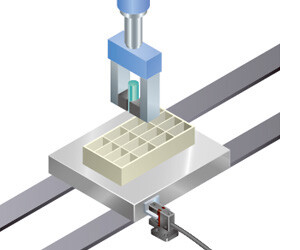

Positioning of a pallet

Positioning of a pallet

Pallet is stopped by sensing the dog*.

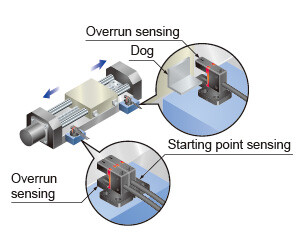

Sensing the starting point and overrun of a moving body

Sensing the starting point and overrun of a moving body

Starting point and overrun is sensed using the dog* on the base.

* "Dog" refers to the sensing object for activating the sensor's detecting operation.

Sensing the starting point on a rotating body

Sensing the starting point on a rotating body

The starting point can be sensed by making a slit in the rotating body.

------------------------------ Tab3 showing ------------------------------

Order guide

Compact / Connector built-in type

TypeAppearance
(mm in)
Sensing rangeModel No.OutputOutput operation
K type

6 mm
0.236 in
(fixed)
PM-K65NPN open-collector
transistor
Incorporated with 2 outputs:
Light-ON / Dark-ON
PM-K65-PPNP open-collector
transistor
T type

PM-T65NPN open-collector
transistor
PM-T65-PPNP open-collector
transistor

PM-T65WNPN open-collector
transistor
PM-T65W-PPNP open-collector
transistor
L type

PM-L65NPN open-collector
transistor
PM-L65-PPNP open-collector
transistor
Y type

PM-Y65NPN open-collector
transistor
PM-Y65-PPNP open-collector
transistor
F type

PM-F65NPN open-collector
transistor
PM-F65-PPNP open-collector
transistor

PM-F65WNPN open-collector
transistor
PM-F65W-PPNP open-collector
transistor
R type

PM-R65NPN open-collector
transistor
PM-R65-PPNP open-collector
transistor

PM-R65WNPN open-collector
transistor
PM-R65W-PPNP open-collector
transistor

Note :

PM-T65W is mounting-compatible with our conventional model "PM-T64W".
PM-F65W(-P) is mounting-compatible with our conventional model "PM-F54(P)".
PM-R65W(-P) is mounting-compatible with our conventional model "PM-R54(P)".

------------------------------ Tab4 showing ------------------------------

Option

DesignationModel No.Description
Connector
attached
cable
CN-14A-C1Length: 1m 3.281 ft0.2 mm2 4-core cabtyre cable with connector on one end
Cable outer diameter: ø3.7mm ø0.146 in
CN-14A-C2Length: 2m 6.562 ft
CN-14A-C3Length: 3m 9.843 ft
CN-14A-C5Length: 5m 16.404 ft
Connector
attached
cable
(Flexible
cable)
CN-14A-R-C1Length: 1m 3.281 ft
CN-14A-R-C2Length: 2m 6.562 ft
CN-14A-R-C3Length: 3m 9.843 ft
CN-14A-R-C5Length: 5m 16.404 ft
ConnectorCN-14ASet of 10 housings and 40 contacts

Connector attached cable

CN-14A(-R)-C□

CN-14A(-R)-C□

Connector

CN-14A

CN-14A

Recommended connector

Contact: SPHD-001T-P0.5, Housing: PAP-04V-S (Manufactured by J.S.T. Mfg. Co., Ltd.)
Note : Contact the manufacturer for details of the recommended products.

Recommended crimping tool

Model No. : YC-610R (Manufactured by J.S.T. Mfg. Co., Ltd.)
Note : Contact the manufacturer for details of the recommended products.

Recommended e-CON connector

Manufactured by 3M Japan Limited
Adapted connector : 37104-3122-000 FL

Please refer to "Introducing the 3M™ mini-clamp connector" for details.

------------------------------ Tab5 showing ------------------------------

Specifications

TypeCompact / Connector built-in type
 Mounting-compatible with conventional model
(Note 2)
Model No.NPN outputPM-□65PM-□65W
PNP outputPM-□65-PPM-□65W-P
Applicable regulations and certificationsCE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), UL/c-UL Recognition certification

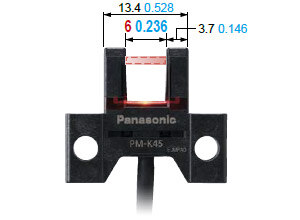

Sensing range6 mm 0.236 in (fixed)
Minimum sensing object0.8 × 1.2 mm 0.031 × 0.047 in opaque object
Hysteresis0.05 mm 0.002 in or less
Repeatability0.01 mm 0.0004 in or less
Supply voltage5 to 24 V DC ±10 % Ripple P-P 10 % or less
Current consumption15 mA or less
Output<NPN output type>
NPN open-collector transistor
・Maximum sink current: 50 mA
・Applied voltage: 30 V DC or less (between output and 0 V)
・Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current)

<PNP output type>
PNP open-collector transistor
・Maximum source current: 50 mA
・Applied voltage: 30 V DC or less (between output and + V)
・Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current)
 Output operationIncorporated with 2 outputs: Light-ON / Dark-ON
Short-circuit protectionIncorporated
Response timeUnder light received condition: 20 μs or less
Under light interrupted condition: 80 μs or less
(Maximum response frequency: 3 kHz) (Note 3)
Operation indicatorOrange LED (lights up under light received condition)
Pollution degree3
ProtectionIP40(IEC)
Ambient temperature–25 to +55 ℃ –13 to +131 ℉ (No dew condensation or icing allowed), Storage: –30 to +80 ℃ –22 to +176 ℉
Ambient humidity5 to 85 % RH, Storage: 5 to 95 % RH
Ambient illuminanceFluorescent light: 1,000 ℓx at the light-receiving face
Voltage withstandability1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance10 to 2,000 Hz frequency, 1.5 mm 0.059 in double amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each
Shock resistance15,000 m/s2 acceleration (1,500 G approx.) in X, Y and Z directions three times each
Emitting elementInfrared LED (Peak emission wavelength: 855 nm 0.034 mil, non-modulated)
MaterialEnclosure: PBT, Display section: Polycarbonate
Cable lengthExtension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. (Note 4)
WeightNet weight: 3 g approx., Gross weight: 3 g approx.

Notes:

1) Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃ +73.4 ℉.

2) PM-T65W is mounting-compatible with our conventional model "PM-T64W".
PM-F65W(-P) is mounting-compatible with our conventional model "PM-F54(P)".
PM-R65W(-P) is mounting-compatible with our conventional model "PM-R54(P)".

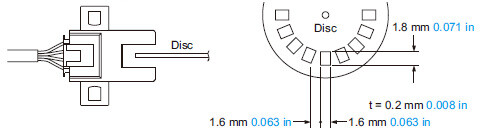

3) The response frequency is the value when the disc, given in the figure below, is rotated.

4) If the cable is extended to 20 m 65.617 ft or longer, confirm that the supply voltage at the end of the cable attached to the sensor is 4.5 V or higher.

------------------------------ Tab6 showing ------------------------------

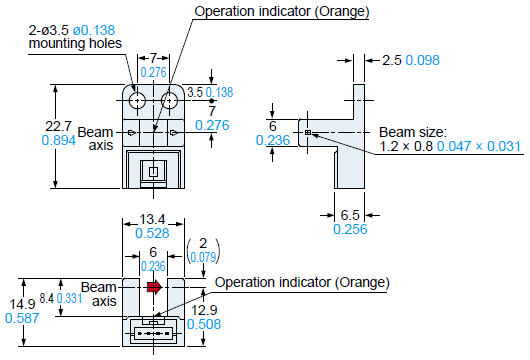

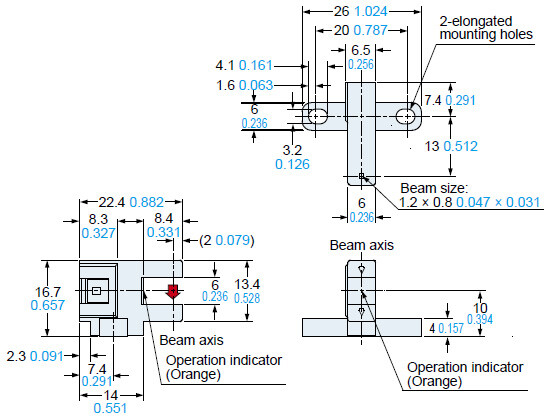

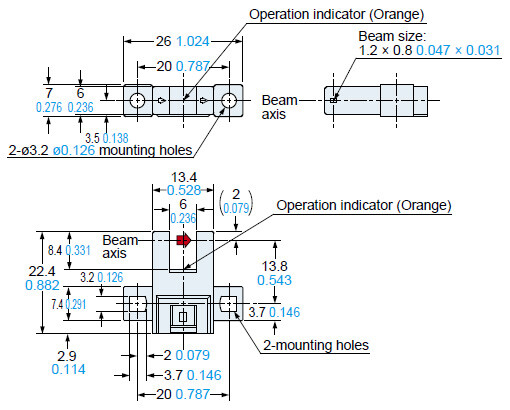

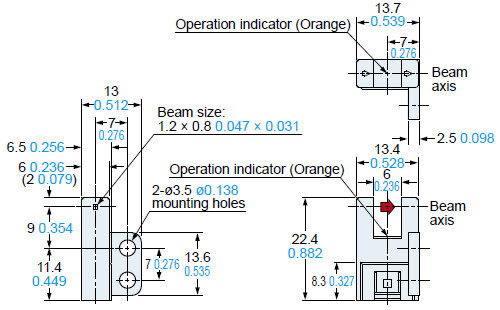

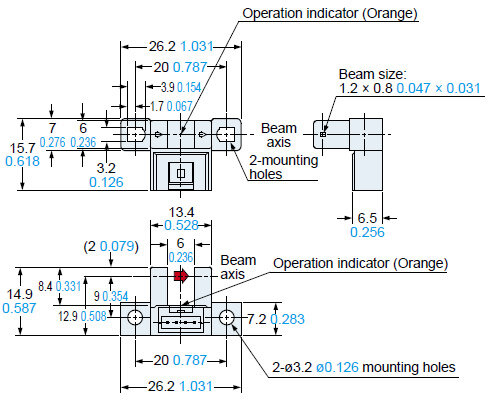

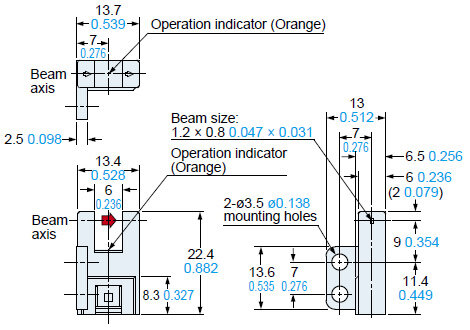

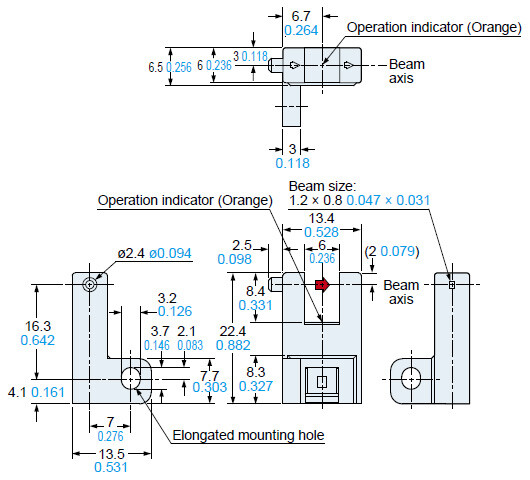

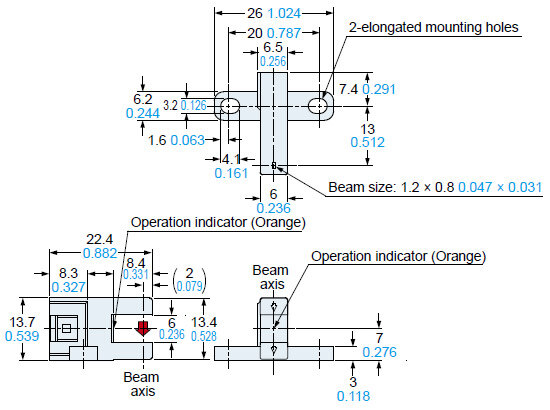

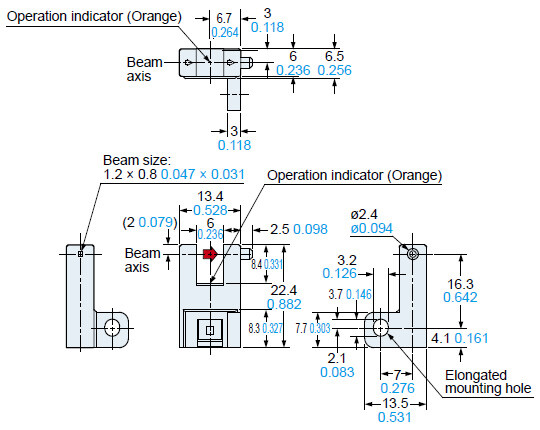

Dimensions

  • Unit: mm in

PM-K65
PM-K65-P

Sensor

PM-K65 PM-K65-P

PM-T65
PM-T65-P

Sensor

PM-T65 PM-T65-P

PM-T65W
PM-T65W-P

Sensor

PM-T65W PM-T65W-P

PM-L65
PM-L65-P

Sensor

PM-L65 PM-L65-P

PM-Y65
PM-Y65-P

Sensor

PM-Y65 PM-Y65-P

PM-F65
PM-F65-P

Sensor

PM-F65 PM-F65-P

PM-F65W
PM-F65W-P

Sensor

PM-F65W PM-F65W-P

PM-R65
PM-R65-P

Sensor

PM-R65 PM-R65-P

PM-R65W
PM-R65W-P

Sensor

PM-R65W PM-R65W-P

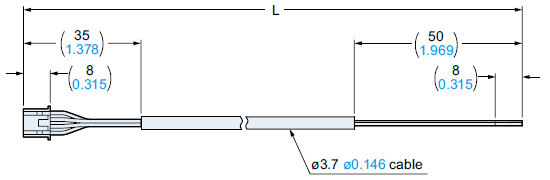

CN-14A-C□
CN-14A-R-C□

Connector attached cable (Optional)

CN-14A-C□ CN-14A-R-C□

Model No.Length L
CN-14A(-R)-C11,000 39.370
CN-14A(-R)-C22,000 78.740
CN-14A(-R)-C33,000 118.110
CN-14A(-R)-C55,000 196.850

------------------------------ Tab7 showing ------------------------------

I/O Circuit and Wiring diagrams

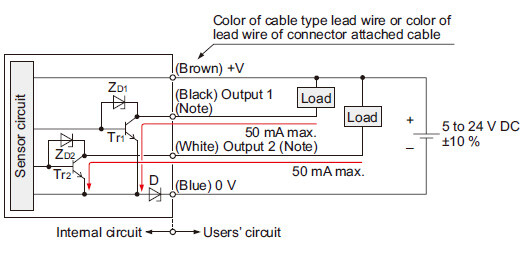

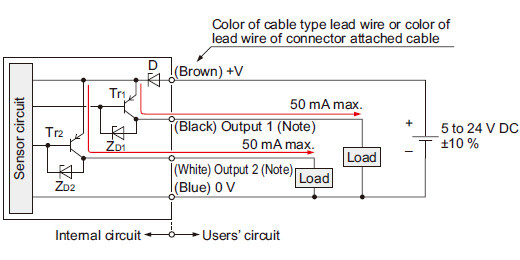

NPN output type

I/O circuit diagram

NPN output type I/O circuit diagram

Note:

Ensure to insulate the unused output wire.

Output operation

 Color codeOutput operation
Output 1BlackLight-ON
Output 2WhiteDark-ON

  Terminal arrangement diagram

NPN output type Terminal arrangement diagram

Terminal No.Designation
+ V
Output 1: Light-ON
Output 2: Dark-ON
0 V

PNP output type

I/O circuit diagram

PNP output type I/O circuit diagram

Note:

Ensure to insulate the unused output wire.

Output operation

 Color codeOutput operation
Output 1BlackLight-ON
Output 2WhiteDark-ON

  Terminal arrangement diagram

PNP output type Terminal arrangement diagram

Terminal No.Designation
+ V
Output 1: Light-ON
Output 2: Dark-ON
0 V

------------------------------ Tab8 showing ------------------------------

Sensing characteristics

*TYPICAL

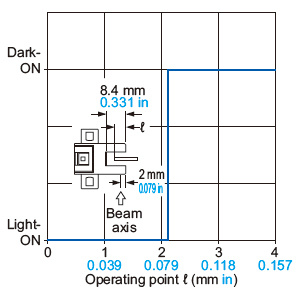

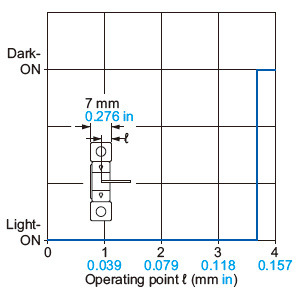

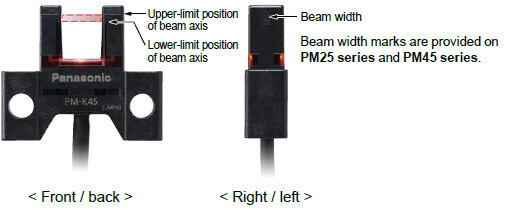

Sensing position

PM-65 Sensing position

PM-65 Sensing position

------------------------------ Tab9 showing ------------------------------

Cautions For Use

  • Never use this product as a sensing device for personnel protection.
  • In case of using sensing devices for personnel protection, use products which meet laws and standards, such as OSHA, ANSI or IEC etc., for personnel protection applicable in each region or country.

Mounting

ScrewSpring washerFlat washerTightening torque
M3 screw1 pc.ø6 mm ø0.236 in
(small round washer)
0.5N・m
  • The following conditions must be observed when using screws to mount the sensor unit.

Mounting

Cable extension

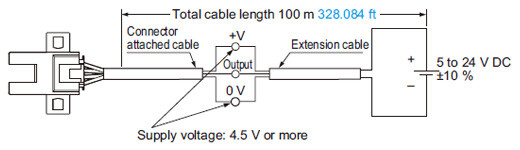

  • Cable extension is possible up to an overall length of 100 m 328.084 ft with a 0.3 mm2, or more, cable. However, since a voltage drop shall occur due to the cable extension, ensure that the power supply voltage at the end of the connector attached cable of the sensor or at the sensor terminals is within the rating.

Cable extension

But, when the overall cable length, including the cable attached to the sensor, is as given below, there is no need to confirm the voltage.

Conductor crosssection
area of extension cable
Total cable length
0.08 to 0.1 mm2Up to 5 m 16.404 ft
0.2mm2Up to 10 m 32.808 ft
0.3mm2Up to 20 m 65.617 ft

Wiring

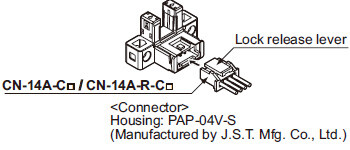

Connection method

  • Insert the connector attached cable CN‑14A-C□ / CN‑14A-R-C□ in the connector part of this product as shown in the figure below.

Wiring Connection method

<Connector pin position>

Connector pin position

Connector pin No.
Terminal designation+VOutput 1Output 20V

Disconnection method

Other

  • This device has been developed / produced for industrial use only.
  • Since the sensor is intended for use inside machines, no special countermeasures have been taken against extraneous light. Take care that extraneous light is not directly incident on the beam receiving section.

  • Do not use during the initial transient time (50 ms) after the power supply is switched on.
  • If the sensor is used in a place having excessive dust, periodically clean the emitting and receiving sections with a dry, soft cloth.
  • If there is a large surge generating equipment, such as, motor, solenoid, electromagnetic valve, etc., in the vicinity of the sensor, use a surge absorber on that equipment. Further, do not run the sensor cables along power lines and use a capacitor between +V and 0 V, if required. Use the sensor after confirming that the surge has been eliminated.
