Metal-free Fiber (Discontinued Products)

Download

  • Discontinued Products

  • Specifications

  • Dimensions

Ⅾiscontinued

Last time buy (JST)

September 30, 2015

We are sorry, the products have been discontinued.
Please refer to the details of the discontinued products and the recommended substitutes list below.

------------------------------ Tab1 showing ------------------------------

Discontinued Products

pic01-1

------------------------------ Tab2 showing ------------------------------

Specifications

TypeThru-beamCoaxial reflective
Model No.FT-41FD-G60FD-G40
Applicable amplifiersFX-500/100/300/400 series
Sensing range
(Note)		HYPR3,300 mm
129.921 in		1,000 mm
39.370 in		550 mm
21.654 in
U-LG2,000 mm
78.740 in		680 mm
26.772 in		330mm
12.992 in
LONG1,550 mm
61.024 in		600 mm
23.622 in		270 mm
10.630 in
STD1,100 mm
43.307 in		420 mm
16.535 in		140 mm
5.512 in
FAST445 mm
17.520 in		200 mm
7.874 in		80 mm
3.150 in
H-SP150 mm
5.906 in		60 mm
2.362 in		27 mm
1.063 in
Allowable bending radiusR25 mm R0.984 in or more
Tightening torque0.15 N・m or less0.5 N・m or less0.15 N・m or less
Ambient temperature-40 to +70 ℃ -40 to +158 ℉
(No dew condensation or icing allowed)
Storage: -40 to +70 ℃ -40 to +158 ℉
Ambient humidity35 to 85 % RH / Storage: 35 to 85 % RH
Vibration resistance10 to 500 Hz frequency, 3 mm 0.118 in amplitude
in X, Y and Z directions for two hours each
Shock resistance490 m/s2 acceleration in X, Y and Z directions for three times each
MaterialFiber coreAcrylic
SheathPolyethylene
Fiber headPPS
NutPolyamide resin
Flat washerUrethane rubber
AccessoriesFX-AT3
(Fiber attachment) 1pc.		FX-AT6
(Fiber attachment) 1pc.
FX-CT2 (Fiber cutter) 1pc.
Nuts and flat
washers 4 pcs. each		Nuts and flat washers 2 pcs. each

Note: The sensing range are the values for FX-500 series.

------------------------------ Tab3 showing ------------------------------

Dimensions

  • Unit: mm in

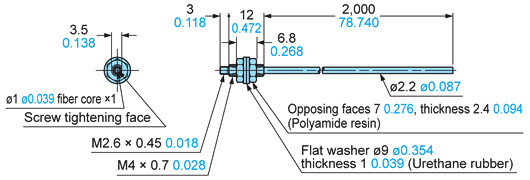

FT-41

Free-cut

<with FX-AT3>

FT-41

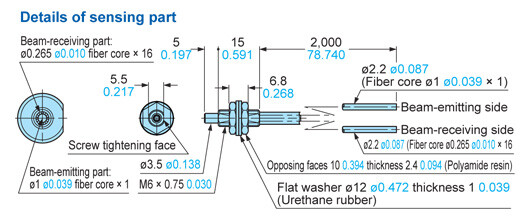

FD-G60

Free-cut

<with FX-AT3>

FD-G60

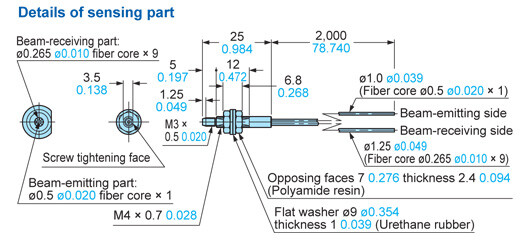

FD-G40

Free-cut

<with FX-AT6>

FD-G40
