Basic Information
Sensing transparent objects is its advantage.
Features
■ Compared with the thru-beam type, it is easier to arrange the fibers since one side is a reflector. Sensing transparent objects is also its advantage.
Applications
Detecting transparent film
Detection of transparent seals on transparent sheet
Introducing a tough fiber that transcends common knowledge!
It has toughness that can be used in moving parts, toughness that can be bent with precision,and high-quality for all purposes.
It changes common knowledge about fibers.
* Bending radius: R10 mmR0.394 in, Reciprocating bending: 180°
Order guide
Retroreflective type
| Type | Shape of fiber head (mm) | Model No. | Bending radius (mm) | Fiber cable length | Free-cut | Protection | Ambient temp. | |
|---|---|---|---|---|---|---|---|---|
| With polarizing filters | W5.2×H9.5×D16
W30×H30×D0.5 | FR-Z50HW | R1 | 2m | Available | IP40 | -25 to +55℃ | |
| Ultra-narrow beam | W7.5×H2.2×D11.2
W4×H2×D21.5 |
FR-KZ22E | R2 Bending durability | IP30 | -40 to +60℃ | |||
| Narrow beam | Top sensing | W5.2×H9.5×D21
W10.6×H28×D10.1 |
FR-KZ50H | |||||
| Side sensing | W9.5×H25×D5.2
W28×H10.6×D10.1 |
FR-KZ50E | ||||||
・Refer to "Digital Fiber Sensor FX-550/FX-550L List of fibers", "Digital Fiber Sensor FX-500 Ver.2 List of fibers" and "Digital Fiber Sensor FX-100 List of fibers" for the sensing range.
・
:
Refers to a fiber which possesses both unbreakable (bending radius: R10 mm R0.394 in, reciprocating bending: 180°) and more flexible (bending radius: R4 mm R0.157 in or less) features.
Sensing range when FR-Z50HW is used in combination with a reflector (optional)
| Reflector model No. | Sensing range (mm in) | |||||||
|---|---|---|---|---|---|---|---|---|
| FX-500 series | FX-101 | FX-102 | ||||||
| HYPR | U-LG | LONG | STD | FAST | H-SP | |||
| RF-230 | 100 to 19,000 3.937 to 748.030 | 100 to 8,000 3.937 to 314.960 | 100 to 5,000 3.937 to 196.850 | 100 to 3,600 3.937 to 141.732 | 100 to 2,900 3.937 to 114.173 | 100 to 1,400 3.937 to 55.118 | 100 to 2,400 3.937 to 94.488 | 100 to 5,000 3.937 to 196.850 |
| RF-220 | 100 to 8,000 3.937 to 314.960 | 100 to 4,700 3.937 to 185.039 | 100 to 3,500 3.937 to 137.795 | 100 to 3,000 3.937 to 118.110 | 100 to 1,800 3.937 to 70.866 | 100 to 830 3.937 to 32.677 | 100 to 1,300 3.937 to 51.181 | 100 to 2,600 3.937 to 102.362 |
| RF-210 | 100 to 5,500 3.937 to 216.535 | 100 to 2,700 3.937 to 106.299 | 100 to 2,400 3.937 to 94.488 | 100 to 1,500 3.937 to 59.055 | 100 to 1,200 3.937 to 47.244 | 100 to 530 3.937 to 20.866 | 100 to 980 3.937 to 38.583 | 100 to 1,300 3.937 to 51.181 |
| Reflector model No. | Sensing range (mm) | ||||
|---|---|---|---|---|---|
| FX-550 series | |||||
| HYPR | U-LG | LONG | STD | FAST | |
| RF-230 | 100 to 20,000 | 100 to 11,000 | 100 to 7,000 | 100 to 5,000 | 100 to 3,500 |
| RF-220 | 100 to 10,000 | 100 to 6,500 | 100 to 4,500 | 100 to 3,500 | 100 to 2,500 |
| RF-210 | 100 to 7,000 | 100 to 4,000 | 100 to 3,600 | 100 to 2,800 | 100 to 2,100 |
Note:The sensing range is the possible setting range for the reflector. The fiber can detect an object less than 100 mm 3.937 in. However, note that if there are any white or highly-reflective surfaces near the fiber head, reflected incident light may affect the fiber head. If this occurs, adjust the threshold value of the amplifier unit before use.
Dimensions
- Unit: mm in

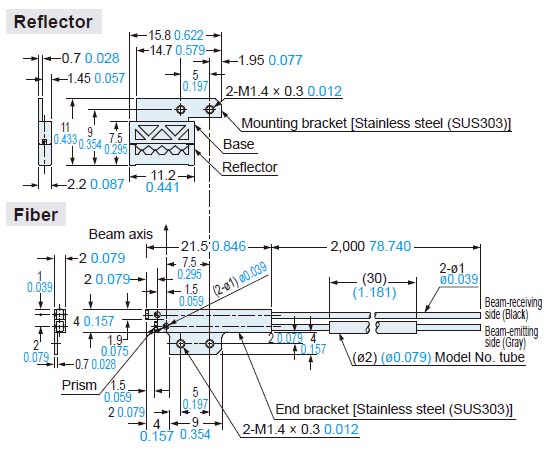

FR-KZ22E
Retroreflective type
Free-cut
<with FX-AT4>

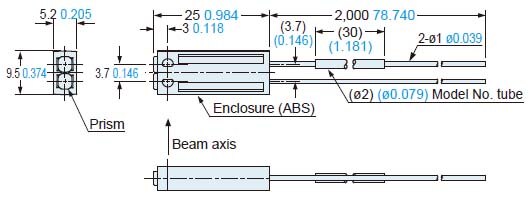

FR-KZ50E
Retroreflective type
Free-cut
<with FX-AT4>
Fiber

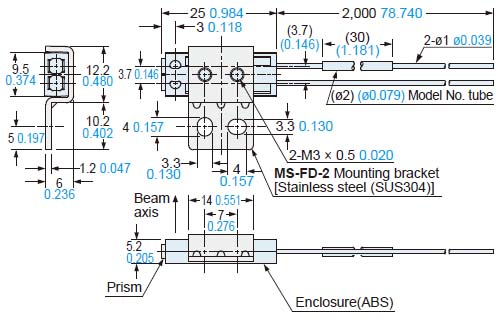

Assembly dimensions with MS-FD-2 (attached mounting bracket)

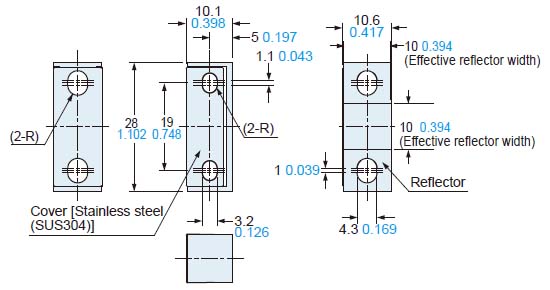

Reflector RF-003 (Accessory for FR-KZ50E)

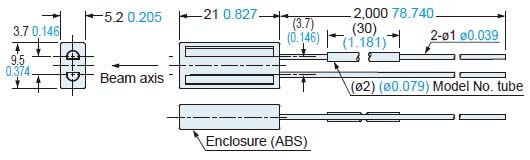

FR-KZ50H
Retroreflective type
Free-cut
<with FX-AT4>
Fiber

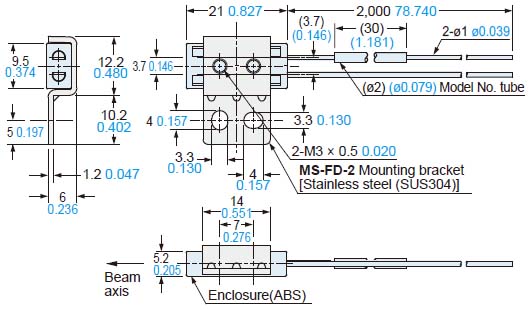

Assembly dimensions with MS-FD-2 (attached mounting bracket)

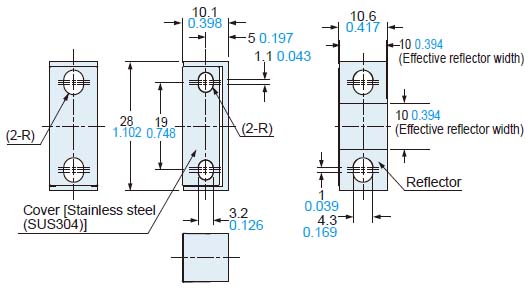

Reflector RF-003 (Accessory for FR-KZ50H)

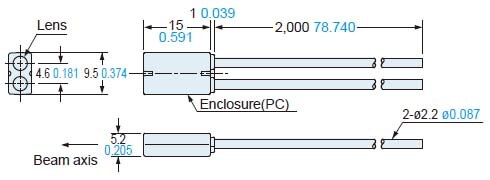

FR-Z50HW
Retroreflective type
Free-cut
<with FX-AT3>
Fiber

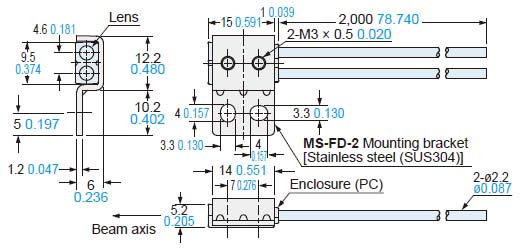

Assembly dimensions with MS-FD-2 (attached mounting bracket)
Reflective tape RF-13 (Accessory for FR-Z50HW)
Material : Acrylic (Reflective surface)
