Since it has a thin, rectangular shape, it can be installed in narrow locations.
Features
■ Since it has a thin, rectangular shape, it can be installed in narrow locations. It is also a fiber with good workability and can be mounted directly with screws.

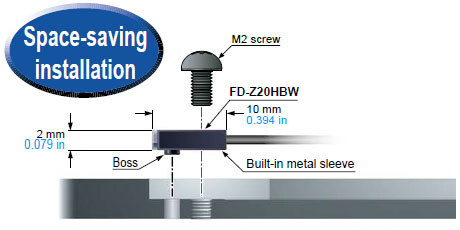

Supplied with a boss that allows for a single mount point
The fiber can be fastened with either a single M2 or M3 screw, and all mounting holes are reinforced with a metal sleeve for durability against excess tightening torque.
• Models that use a M2 screw
FT-Z20W, FT-Z20HBW, FD-Z20W, FD-Z20HBW
• Models that use a M3 screw
FT-Z40W, FT-Z40HBW, FD-Z40W, FD-Z40HBW
Fiber guide provides additional space savings

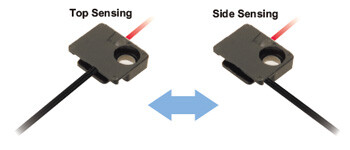

FT-Z□HBW and FD-Z□HBW are equipped with a fiber guide feature. Top sensing and side sensing can be selected with one head.
Introducing a tough fiber that transcends common knowledge!
It has toughness that can be used in moving parts, toughness that can be bent with precision,and high-quality for all purposes.
It changes common knowledge about fibers.
* Bending radius: R10 mmR0.394 in, Reciprocating bending: 180°
Order guide
Thru-beam type (one pair set)
| Type | Shape of fiber head (mm) | Model No. | Bending radius (mm) | Fiber cable length | Free-cut | Beam axis dia.(mm) | Protection | Ambient temp. | |
|---|---|---|---|---|---|---|---|---|---|
| Flat | Top sensing
|
FT-Z30H | R2 Bending durability | 2m | Available | 2x3 | IP40 | －40 to ＋60℃ | |
| Top sensing
| FT-Z30HW | R1 | |||||||
| Side sensing
|
FT-Z30E | R2 Bending durability | |||||||
| Side sensing
| FT-Z30EW | R1 | |||||||
| Front sensing
|
FT-Z30 (Note 1) | R2 Bending durability | ø2 | ||||||
| Front sensing
| FT-Z30W (Note 1) | R1 | |||||||
| With boss | Front sensing
| FT-Z20W | 1m | Available | ø1.5 | ||||
| Fiber bending type
| FT-Z20HBW | ø0.5 | IP67 | ||||||
| Front sensing
| FT-Z40W | 2m | Available | ø1.5 | IP40 | ||||
| Fiber bending type
| FT-Z40HBW | ø1 | IP67 | ||||||
(Note 1) :
The material of reflector incorporated inside the fiber head has been changed from production in June, 2015.
[Reflector color] Old: gold / New: silver
Due to this change, the sensing ranges of FX-301B/G and FX-411B/G (blue/green LED types) are improved.
Refer to "List of fibers" on each amplifier page for the sensing range.
・Refer to "Digital Fiber Sensor FX-550/FX-550L List of fibers", "Digital Fiber Sensor FX-500 Ver.2 List of fibers" and "Digital Fiber Sensor FX-100 List of fibers" for the sensing range.
・
:
Refers to a fiber which possesses both unbreakable (bending radius: R10 mm R0.394 in, reciprocating bending: 180°) and more flexible (bending radius: R4 mm R0.157 in or less) features.
Reflective type
| Type | Shape of fiber head (mm) | Model No. | Bending radius (mm) | Fiber cable length | Free-cut | Protection | Ambient temp. |
|---|---|---|---|---|---|---|---|
| With boss | Front sensing
| FD-Z20W | R1 | 1m | Available | IP40 | －40 to ＋60℃ |
| Fiber bending type
| FD-Z20HBW | IP67 | |||||
| Front sensing
| FD-Z40W | 2m | IP40 | ||||
| Fiber bending type
| FD-Z40HBW | IP67 |
・Refer to "Digital Fiber Sensor FX-500 Ver.2 List of fibers" and "Digital Fiber Sensor FX-100 List of fibers" for the sensing range.
Dimensions
- Unit: mm in

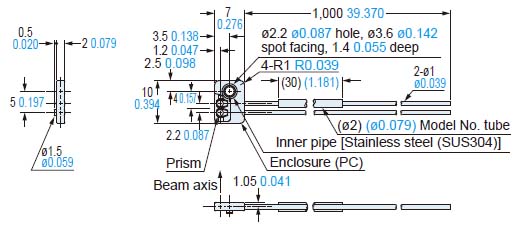

FD-Z20HBW
Reflective type
Free-cut
<with FX-AT4>

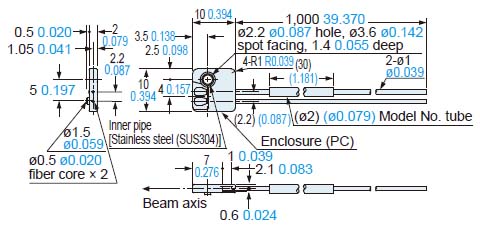

FD-Z20W
Reflective type
Free-cut
<with FX-AT4>

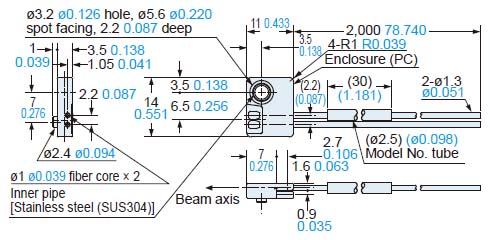

FD-Z40HBW
Reflective type
Free-cut
<with FX-AT5>

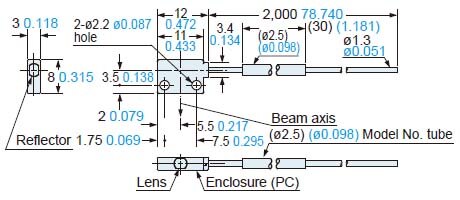

FD-Z40W
Reflective type
Free-cut
<with FX-AT5>

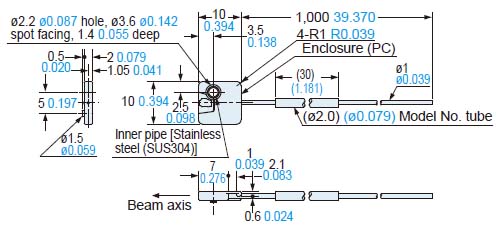

FT-Z20HBW
Thru-beam type
Free-cut
<with FX-AT4>
FT-Z20W
Thru-beam type
Free-cut
<with FX-AT4>

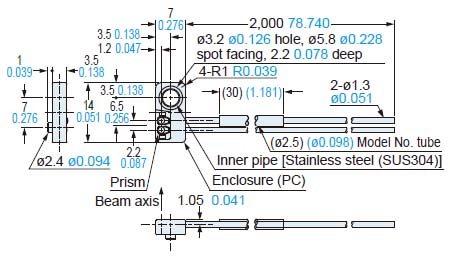

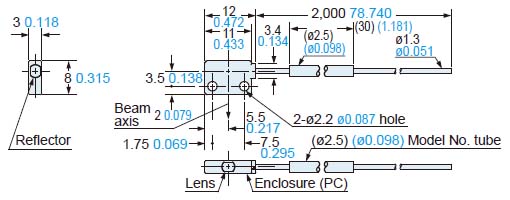

FT-Z30
Thru-beam type
Free-cut
<with FX-AT5>

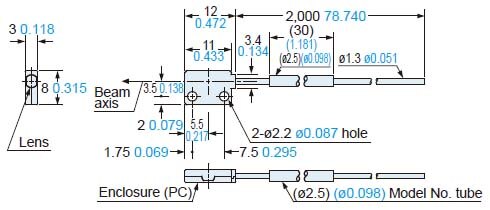

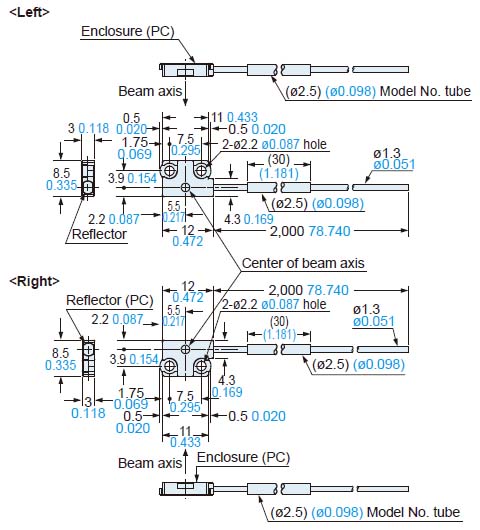

FT-Z30E
Thru-beam type
Free-cut
<with FX-AT5>

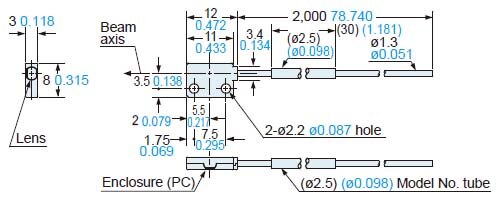

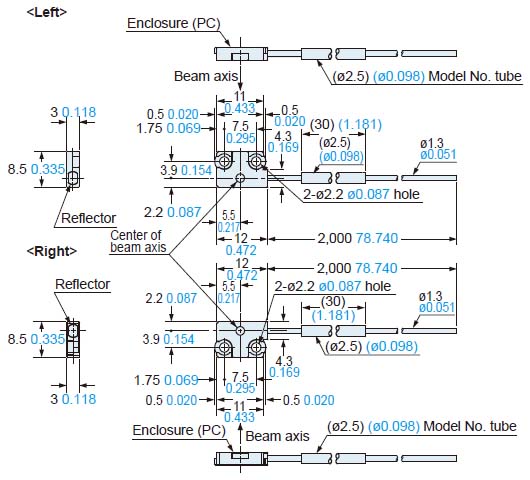

FT-Z30EW
Thru-beam type
Free-cut
<with FX-AT5>
FT-Z30H
Thru-beam type
Free-cut
<with FX-AT5>
FT-Z30HW
Thru-beam type
Free-cut
<with FX-AT5>
FT-Z30W
Thru-beam type
Free-cut
<with FX-AT5>

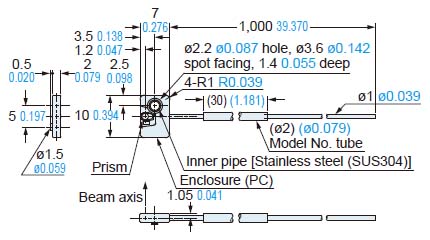

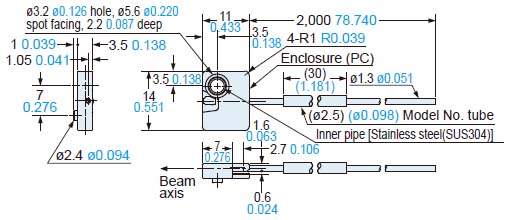

FT-Z40HBW
Thru-beam type
Free-cut
<with FX-AT5>

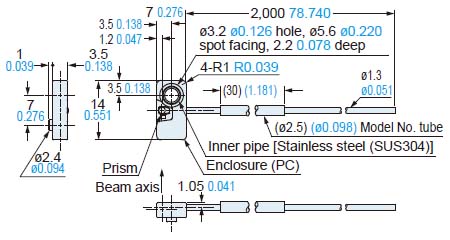

FT-Z40W
Thru-beam type
Free-cut
<with FX-AT5>
