Basic Information
It is a fiber in which the sensing distance is limited to a specific range
Features
■ It is a fiber in which the sensing distance is limited to a specific range so it is not easily affected by the background. It is effective when a workpiece is accumulated or when the background is near.
Applications
LCD transportation
Mounting in handring arms
Introducing a tough fiber that transcends common knowledge!
It has toughness that can be used in moving parts, toughness that can be bent with precision,and high-quality for all purposes.
It changes common knowledge about fibers.
* Bending radius: R10 mmR0.394 in, Reciprocating bending: 180°
------------------------------ Tab2 showing ------------------------------
Order guide
Reflective type
| Type | Shape of fiber head (mm) | Model No. | Bending radius (mm) | Fiber cable length | Free-cut | Protection | Ambient temp. |
|---|---|---|---|---|---|---|---|
| Glass substrate detection | Mapping
W25×H7.3×D30 | FD-L32H | R4 Bending durability | 4m | Available | IP40 | -40 to +60℃ |
| Alignment
W20×H29×D3.8 |
FD-L30A | R2 Bending durability | 3m | 0 to +70℃ | |||
| Alignment
W23.5×H29×D4.5 |
FD-L31A | R4 Bending durability | |||||
| Alignment
W17×H29×D3.8 |
FD-L22A | R2 Bending durability | 2m | ||||
| Seating confirmation
W18×H29×D3.8 |
FD-L23 | 3m | -20 to +70℃ | ||||
| Seating confirmation
W12×H19×D3 |
FD-L11 | R4 Bending durability | 2m | -40 to +60℃ | |||
| Seating confirmation
W12×H19×D3 |
FD-L10 | ||||||
W24×H21×D4 |
FD-L21 | R2 Bending durability | |||||
W24×H21×D4 | FD-L21W | R1 | |||||
| General purpose |
W6×H18×D14 |
FD-L20H | R2 Bending durability | -40 to +70℃ | |||
| Ultla-small |
W7.2×H7.5×D2 | FD-L12W | R1 | 1m | IP30 | -40 to +60℃ |
・Refer to "Digital Fiber Sensor FX-550/FX-550L List of fibers", "Digital Fiber Sensor FX-500 Ver.2 List of fibers" and "Digital Fiber Sensor FX-100 List of fibers" for the sensing range.
・
:
Refers to a fiber which possesses both unbreakable (bending radius: R10 mm R0.394 in, reciprocating bending: 180°) and more flexible (bending radius: R4 mm R0.157 in or less) features.
------------------------------ Tab3 showing ------------------------------
------------------------------ Tab4 showing ------------------------------
Dimensions
- Unit: mm in

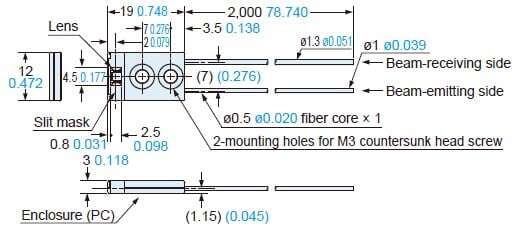

FD-L10
Reflective type
Free-cut
<with FX-AT6>

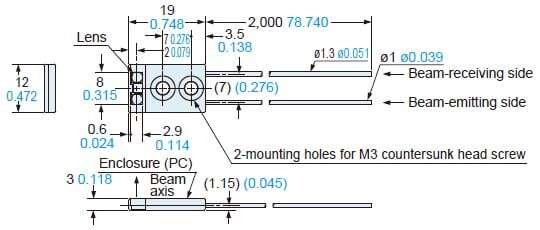

FD-L11
Reflective type
Free-cut
<with FX-AT6>

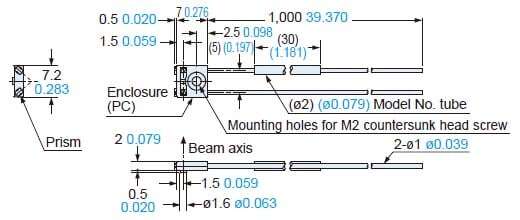

FD-L12W
Reflective type
Free-cut
<with FX-AT4>

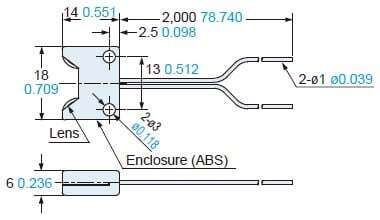

FD-L20H
Reflective type
Free-cut
<with FX-AT4>

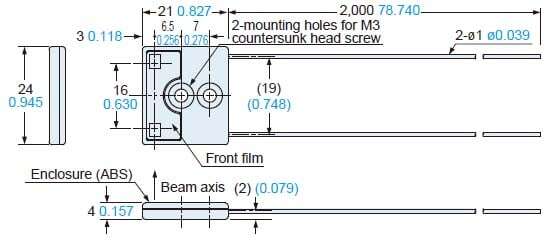

FD-L21
Reflective type
Free-cut
<with FX-AT4>

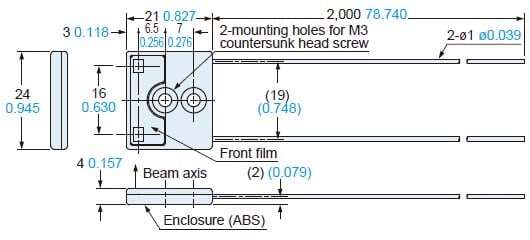

FD-L21W
Reflective type
Free-cut
<with FX-AT4>

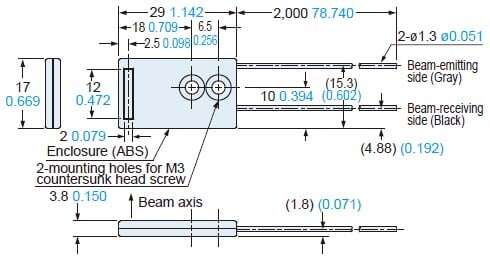

FD-L22A
Reflective type
Free-cut
<with FX-AT5>

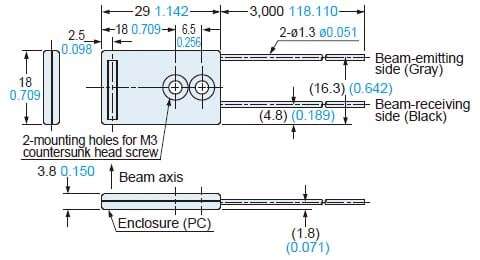

FD-L23
Reflective type
Free-cut
<with FX-AT5>

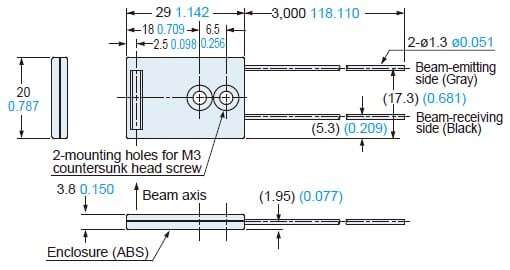

FD-L30A
Reflective type
Free-cut
<with FX-AT5>

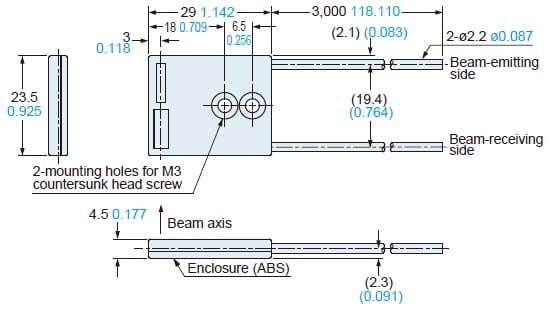

FD-L31A
Reflective type
Free-cut
<with FX-AT3>

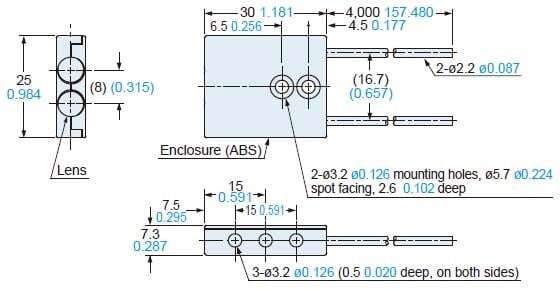

FD-L32H
Reflective type
Free-cut
<with FX-AT3>
