Optical Lamp Fiber Sensor LX-23 (Discontinued Products)

Download

  • Discontinued Products

  • Specifications

  • Dimensions

Ⅾiscontinued

Last time buy (JST)

September 30, 2016

We are sorry, the products have been discontinued. Please refer to the details of the discontinued products and the recommended substitutes list below.

------------------------------ Tab1 showing ------------------------------

Discontinued Products

pic01-1



------------------------------ Tab2 showing ------------------------------

Specifications

Fibers

TypeThru-beamCoaxial reflectiveFixed coaxial reflective
Model No.FT-3FR-3FF
Applicable amplifierLX-23
Sensing range
(Note 2)		30 mm
1.181 in		1 to 3 mm 0.039 to 0.118 in
(Center: 1.5 mm 0.059 in)
Min. sensing objectø1.5 mm
ø0.059 in		0.1 mm 0.004 in width black line on white paper
(under the optimum condition)
Fiber cable length300 mm
11.811 in		300 mm
11.811 in		-
Allowable bending radius
(Note 3)		R 30 mm 1.181 in or more-
Ambient temperature–20 to +70 ℃ –4 to +158 ℉
(No dew condensation or icing allowed)
Storage: –20 to +70 ℃ –4 to +158 ℉		–10 to +40℃ +14 to +104 ℉
(No dew condensation or icing allowed)
Storage: –10 to +40 ℃ +14 to +104 ℉
MaterialSheath: Silicone tube
Fiber core: Acrylic		Sheath: Brass (nickel plated)
Fiber core: Acrylic

Note 1 :Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃ +73.4 ℉.

Note 2 :The sensing range of the reflective type fiber is specified for white non-glossy paper (50 x 50 mm 1.969 x 1.969 in) as the object.

Note 3 :The allowable bending radius indicates the value when bending a fiber at a 90° angle.

Amplifier

TypeOptical lamp
Model No.LX-23
Supply voltage12 V DC ±10 % Ripple P-P 10 % or less
Current consumption150 mA or less
OutputNPN transistor universal
・Maximum sink current: 80 mA
・Residual voltage: 1 V or less (at 80 mA sink current)
 Output operationLight-ON
Response time0.1 ms (Max. response frequency: 10 kHz)
Sensitivity adjusterOptical multi-turn adjuster
ProtectionIP62 (IEC)
Ambient temperature−10 to +40 ℃ +14 to +104 ℉ (No dew condensation or icing allowed),
Storage: −10 to 40 ℃ +14 to +104 ℉
Emitting elementOptical tungsten lamp (average lifetime: 20,000 hours)
Case grounding typeDirect grounding
MaterialDie-cast zinc alloy
WeightNet weight: 150 g approx.

Note :Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃ +73.4 ℉.

------------------------------ Tab3 showing ------------------------------

Dimensions

  • Unit: mm in

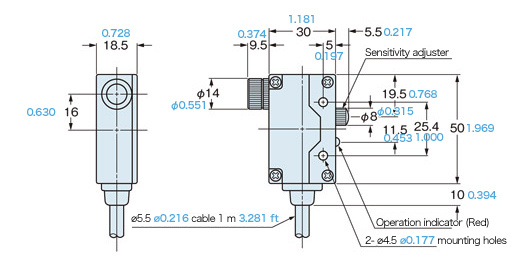

LX-23

Amplifier

LX-23

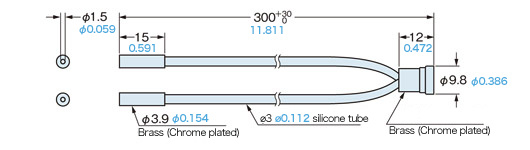

FT-3

Thru-beam type fiber

FT-3

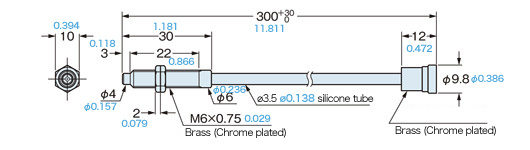

FR-3

Coaxial reflective type fiber

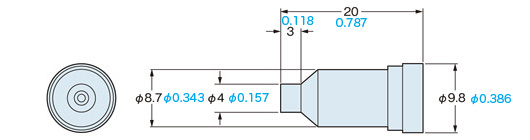

FF

Fixed coaxial reflective type fiber

FF

Material: Brass (Chrome plated)

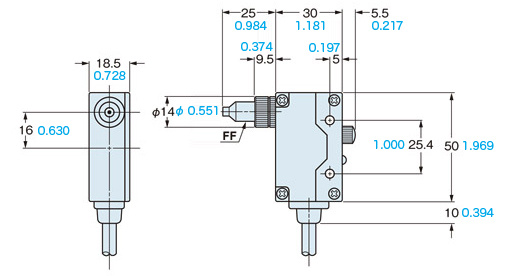

Assembly Dimensions
