Basic Information
※Actual products may differ from the photos.
It can be used under environments of -60 to +350 ℃ -76 to +662 ℉.
Option
Lens for fiber
For details of lens for fiber, refer to "Lens for thru-beam type fiber".
>>Go to "Lens for thru-beam type fiber"
Fiber Options
For details of fiber options, refer to "Fiber Options".
>>Go to "Fiber Options"
Order guide
Thru-beam type (one pair set)
| Type | Heat- resistant temp. | Shape of fiber head (mm) | Model No. | Bending radius (mm) | Fiber cable length | Free-cut | Beam axis dia. (mm) | Ambient temp. |
|---|---|---|---|---|---|---|---|---|
| Heat- resistant | 350℃ | Lens mountable (FX-LE1/LE2/SV1)
| FT-H35-M2 | R25 | 2m | - | ø1.2 | -60 to +350℃ |
| Sleeve 60mm
| FT-H35-M2S6 | Fiber R25 Sleeve R10 | - | |||||
| 200℃ | Allows flexible wiring Lens mountable (FX-LE1/LE2/SV1)
| FT-H20W-M1 | R10 | 1m | - | ø0.8 | -60 to +200℃ | |
| Lens mountable (FX-LE1/LE2/SV1)
| FT-H20-M1 | R25 | - | ø1.2 | ||||
| 130℃ | Lens mountable (FX-LE2 only)
| FT-H13-FM2 | 2m | Available | ø1.5 | -60 to +130℃ | ||
| Heat- resistant (joint) | 200℃ | Lens mountable (FX-LE1/LE2/SV1)
| FT-H20-J20-S (Note 3) | Heatresistant side R18 (Note 2) | 200mm (Note 1) | Available | ø1.2 | -60 to +200℃ |
| FT-H20-J30-S (Note 3) | 300mm (Note 1) | Available | ||||||
| FT-H20-J50-S (Note 3) | 500mm (Note 1) | Available | ||||||
| Side-view
| FT-H20-VJ50-S (Note 3) | Available | ||||||
| FT-H20-VJ80-S (Note 3) | 800mm (Note 1) | Available |
Refer to "Digital Fiber Sensor FX-500 Ver.2 List of fibers" and "Digital Fiber Sensor FX-100 List of fibers" for the sensing range.
(Note 1):Fiber length (fixed-length) for heat-resistant fiber side. Fiber length for ordinary temperature side is 2 m 6.562 ft (free-cut).
(Note 2):Bending durable fiber R4 mm R0.157 in or more for ordinary temperature side.
(Note 3):Heat-resistant joint fibers and ordinary-temperature fibers (FT-42) are sold as a set.

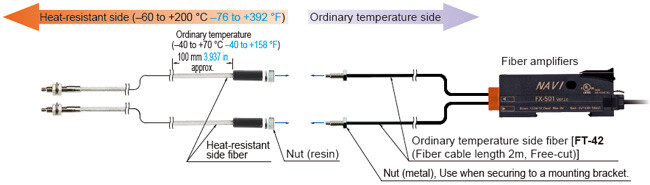

Heat-resistant joint fiber set contents
Model No. when ordering individually as spare parts
• Heat-resistant side fiber [one pair set]
FT-H20-J20, FT-H20-J30, FT-H20-J50, FT-H20-VJ50, FT-H20-VJ80
• Ordinary temperature side fiber [one pair set]
FT-42
Reflective type
| Type | Heat- resistant temp. | Shape of fiber head (mm) | Model No. | Bending radius (mm) | Fiber cable length | Free-cut | Ambient temp. | |
|---|---|---|---|---|---|---|---|---|
| Heat- resistant | Threaded | 350℃ | Coaxial
| FD-H35-M2 | R25 | 2m | - | -60 to +350℃ |
| Sleeve60mm
| FD-H35-M2S6 | Fiber R25 Sleeve R10 | - | |||||
| Sleeve90mm
| FD-H35-20S | 1m | - | |||||
| 200℃ | Coaxial
| FD-H20-M1 | R25 | - | -60 to +200℃ | |||
| Coaxial
| FD-H20-21 | - | ||||||
| 130℃ |
| FD-H13-FM2 | 2m | Available | -60 to +130℃ | |||
| Glass substrate detection convergent reflective | 300℃ |
W19×H27×D5 | FD-H30-L32 | 2m | - | -60 to +300℃ | ||
| 180℃ |
W19×H27×D5 | FD-H18-L31 | 2m | Available | -60 to +180℃ | |||
Refer to "Digital Fiber Sensor FX-500 Ver.2 List of fibers" and "Digital Fiber Sensor FX-100 List of fibers" for the sensing range.
Option
Lens for fiber
For details of lens for fiber, refer to "Lens for thru-beam type fiber".
>>Go to "Lens for thru-beam type fiber"
Fiber Options
For details of fiber options, refer to "Fiber Options".
>>Go to "Fiber Options"
Dimensions
- Unit: mm in
FD-H13-FM2
Reflective type
Free-cut
<with FX-AT3>
FD-H18-L31
Reflective type
Free-cut
<with FX-AT3>
FD-H20-21
Reflective type
FD-H20-M1
Reflective type
FD-H25-L43 [Discontinued Products]
Reflective type
<with FX-AT2>
FD-H25-L45 [Discontinued Products]
Reflective type
<with FX-AT2>
FD-H30-L32
Reflective type
FD-H35-20S
Reflective type
FD-H35-M2
Reflective type
FD-H35-M2S6
Reflective type
FT-H13-FM2
Thru-beam type
Free-cut
<with FX-AT3>
FT-H20-J20-S
FT-H20-J30-S
FT-H20-J50-S
Thru-beam type
Free-cut (*Note)
<with FX-AT3>
Heat-resistant side unit diagram (side view)
Ordinary temperature side fiber (FT-42) connection diagram (front view)
| Model No. | A | B |
|---|---|---|
| FT-H20-J20-S | 200 +2507.874 +0.9840 | 185 +3007.284 +1.1810 |
| FT-H20-J30-S | 300 +25011.811 +0.9840 | 285 +30011.221 +1.1810 |
| FT-H20-J50-S | 500 +25019.685 +0.9840 | 485 +30019.095 +1.1810 |
Note: Ordinary temperature side fiber (FT-42) only.
FT-H20-M1
Thru-beam type
FT-H20-VJ50-S
FT-H20-VJ80-S
Thru-beam type
Free-cut (*Note)
<with FX-AT3>
Heat-resistant side unit diagram (side view)
Ordinary temperature side fiber (FT-42) connection diagram (front view)
| Model No. | A | B |
|---|---|---|
| FT-H20-VJ50-S | 500 +25019.685 +0.9840 | 485 +30019.095 +1.1810 |
| FT-H20-VJ80-S | 800 +50031.496 +1.9690 | 785 +55030.906 +2.1650 |
Note: Ordinary temperature side fiber (FT-42) only.
FT-H20W-M1
Thru-beam type
<with FX-AT2>
FT-H35-M2
Thru-beam type
FT-H35-M2S6
Thru-beam type
