Manual Setting Fiber Sensor FX-M1 (Discontinued Products)

Download

  • Discontinued Products

  • Specifications

  • Dimensions

Ⅾiscontinued

Last time buy (JST)

September 30, 2005

We are sorry, the products have been discontinued. Please refer to the details of the discontinued products and the recommended substitutes list below.

------------------------------ Tab1 showing ------------------------------

Discontinued Products

pic01-1

------------------------------ Tab2 showing ------------------------------

Specifications

TypeManual setting
Basic model No.NPN outputPNP output
FX-M1FX-M1P
Emitting elementRed LED
Supply voltage12 to 24 V DC±10 % Ripple P-P 10 % or less
Current / Power consumption45 mA or less
Sensing outputNPN open-collector transistor
・Maximum sink current: 100 mA
・Applied voltage: 30 V DC or less (between output and 0 V)
・Residual voltage:
1 V or less (at 100 mA sink current.)
0.4 V or less (at 16 mA sink current.)		PNP open-collector transistor
・Maximum source current: 100 mA
・Applied voltage: 30 V DC or less (between output and +V)
・Residual voltage:
1 V or less (at 100 mA source current.)
0.4 V or less (at 16 mA source current.)
 Output operationSelectable either Light-ON or Dark-ON, with selection switch
Response time0.5 ms or less (Emission Frequency 1)
0.65 ms or less (Emission Frequency 2)
0.75 ms or less (Emission Frequency 3)
Sensitivity adjusterIncorporated with 12-turn potentiometer with indicator
Timer functionIncorporated with approx. 40 ms fixed OFF-delay timer,
switchable either effective or ineffective
Automatic interference prevention functionIncorporated
(Three units of sensors can be mounted close together.)
Sensitivity setting2-level teaching / Limit teaching / Full-auto teaching
Ambient temperature0 to +50 ℃ +32 to +122 ℉(Auto-setting type: -10 to +50 ℃ +14 to + 122 ℉)(No dew condensation or icing allowed),
Storage: -20 to +70 ℃ -4 to +158 ℉
MaterialEnclosure: Heat-resistant ABS, Case cover: Polycarbonate
Fiber lock lever: PES
Connecting methodCable type 0.2 mm2 4-core cabtyre cable, 2 m 6.562 ft long
Weight70 g approx.
AccessoriesMS-DIN-2 (Amplifier mounting bracket): 1 No.
Adjusting screwdriver: 1 No.

------------------------------ Tab3 showing ------------------------------

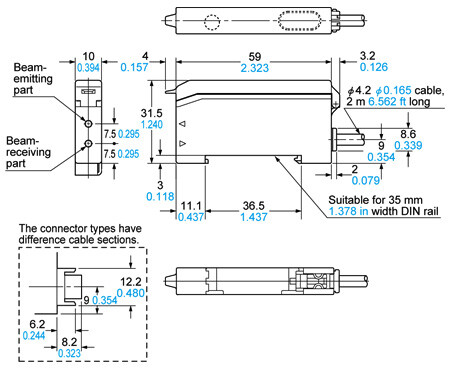

Dimensions

  • Unit: mm in
