Slim Body Automatic Sensitivity Setting Fiber Sensor FX-7 (Discontinued Products)

Download

  • Discontinued Products

  • Specifications

  • Dimensions

Ⅾiscontinued

Last time buy (JST)

September 30, 2005

We are sorry, the products have been discontinued.
Please refer to the details of the discontinued products and the recommended substitutes list below.

------------------------------ Tab1 showing ------------------------------

Discontinued Products

pic01-1



------------------------------ Tab2 showing ------------------------------

Specifications

TypeNPN outputPNP output
Basic model No.FX-7FX-7P
Emitting elementRed LED
Supply voltage12 to 24 V DC±10 % Ripple P-P 10 % or less
Current / Power consumption30 mA or less
Sensing outputNPN open-collector transistor
・Maximum sink current: 100 mA
・Applied voltage: 30 V DC or less(between output and 0 V)
・Residual voltage:
1.0 V or less(at 100 mA sink current)
0.4 V or less(at 16 mA sink current)		PNP open-collector transistor
・Maximum source current: 100 mA
・Applied voltage: 30 V DC or less(between output and +V)
・Residual voltage:
2.0 V or less(at 100 mA source current)
0.1 V or less(at 16 mA source current)
 Output operationSelectable either Light-ON or Dark-ON with the order of pressing ON and OFF buttons
Response time0.5 ms or less (0.7 ms or less when the interference prevention function is used)
Sensitivity setting2-level teaching
Ambient temperature-10 to +50℃ -14 to +122 ℉(No dew condensation or icing allowed),
Storage :-20 to +70℃ -4 to +158 ℉
Connecting method0.2 mm2 4-core cabtyre cable, 2 m 6.562 ft long
MaterialEnclosure: Heat-resistant ABS, Case cover: Polycarbonate
Fiber lock lever: PPS
Weight65 g approx.

------------------------------ Tab3 showing ------------------------------

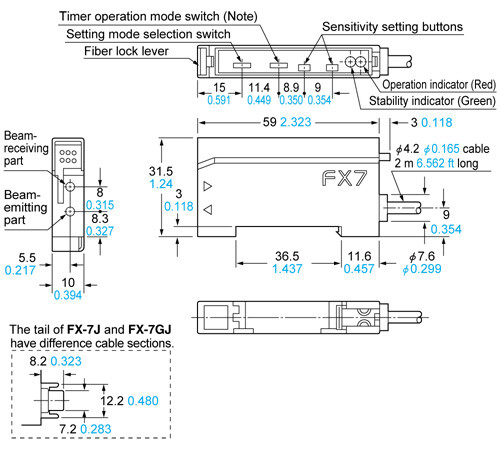

Dimensions

  • Unit: mm in

Note: The external synchronization input type is an external synchronization select switch.
