Slim Body Analog Fiber Sensor FX-11A (Discontinued Products)

  • Discontinued Products

  • Specifications

  • Dimensions

Ⅾiscontinued

Last time buy (JST)

September 30, 2021

e are sorry, the products have been discontinued.
Please refer to the details of the discontinued products and the recommended substitutes list below.

Discontinued Products

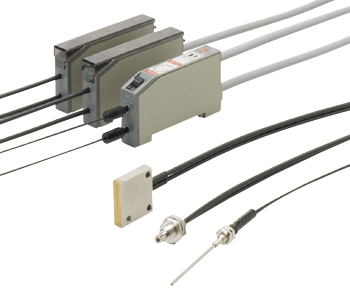

pic01-1

Specifications

Amplifier

Model No.FX-11A
Supply voltage12 to 24 V DC ± 10 % Ripple P-P 10 % or less
Current consumption35 mA or less
Analog outputAnalog voltage
・Output voltage: 1 to 5 V (proportional to incident light intensity)
・Output current: 5 mA or less
・Output impedance: 47 Ω
・Load resistance: 2 kΩ or more
・Temperature characteristics: 0.3 % F.S./℃ or less
Response timeSwitchable either 1 ms or less, or 10 ms or less
Incident beam indicatorRed LED
(brightens up in proportion to analog output voltage)
Saturation indicatorGreen LED
(lights up when the analog output voltage reaches 5 V)
Sensitivity adjuster8-turn potentiometer with indicator
Interference prevention functionIncorporated
Ambient temperature-10 to +55 ℃ +14 to +131 ℉
(No dew condensation or icing allowed),
Storage: -20 to +70 ℃ -4 to +158 ℉
Ambient humidity35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminanceIncandescent light: 1,000 lx at the light-receiving face
Voltage withstandability1,000 V AC for one min. between all supply terminals connected together and enclosure (Note 2)
Insulation resistance20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure (Note 2)
Vibration resistance10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude in X, Y and Z directions for two hours each
Shock resistance100 m/s2 acceleration (10 G approx.) in X, Y and Z directions for five times each
Emitting elementRed LED
(Peak emission wavelength: 660 nm 0.026 mil, modulated)
MaterialEnclosure: Heat-resistant ABS, Case cover: Polycarbonate, Fiber lock lever: PES
Cable0.2 mm2 4-core cabtyre cable, 2 m 6.562 ft long
Cable extensionExtension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. (Note 3)
WeightNet weight: 60 g approx., Gross weight: 100 g approx.
AccessoriesMS-DIN-2 (Amplifier mounting bracket): 1 pc., Adjusting screwdriver: 1 pc.

Notes :

1)Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃ +73.4 ℉.

2)The voltage withstandability and the insulation resistance values given in the above table are for the amplifier only.

3)Take care that the output voltage drops when the cable is extended.

Dimensions

  • Unit: mm in

FX-11A

Amplifier

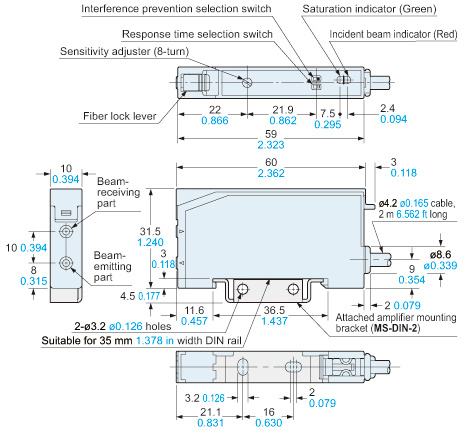

Assembly dimensions with attached amplifier mounting bracket

FX-11A

Note:The top view is shown without the cover.

MS-DIN-2

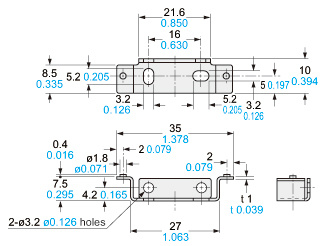

Amplifier mounting bracket (Accessory for FX-11A)

MS-DIN-2

Malerial:Cold rolled carbon steel (SPCC)(Uni-chrome plated)
