Slim body manually sensitivity set fiber sensor FX-10 (Discontinued Products)

Download

  • Discontinued Products

  • Specifications

  • Dimensions

Ⅾiscontinued

Last time buy (JST)

September 30, 2005

We are sorry, the products have been discontinued. Please refer to the details of the discontinued products and the recommended substitutes list below.

Discontinued Products

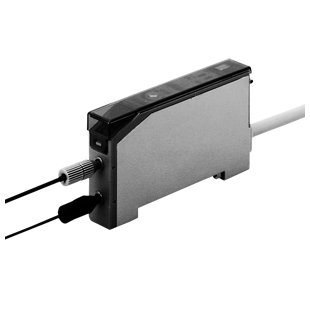

pic01

Specifications

Sensitive type / Long sensing range type

TypeNPN outputPNP output
Sensitive typeLong sensing range typeSensitive typeLong sensing range type
Basic model No.FX-11FX-12FX-11PFX-12P
Emitting elementRed LED
Supply voltage12 to 24 V DC±10 % Ripple P-P 10 % or less
Current / Power consumption35 mA or less
Sensing outputNPN open-collector transistor
・Maximum sink current: 100 mA
・Applied voltage: 30 V DC or less(between output and 0 V)
・Residual voltage:
1.5 V or less(at 100 mA sink current)
0.4 V or less(at 16 mA sink current)		PNP open-collector transistor
・Maximum source current: 100 mA
・Applied voltage: 30 V DC or less(between output and +V)
・Residual voltage:
1.5 V or less(at 100 mA source current)
0.4 V or less(at 16 mA source current)
 Output operationSelectable either Light-ON or Dark-ON, with selection switch
Response time0.3 ms or less0.4 ms or less0.3 ms or less0.4 ms or less
Sensitivity adjuster8-turn potentiometer with indicator
Ambient temperature-10 to +55 ℃ -14 to +131 ℉ (No dew condensation or icing allowed),
Storage: -20 to +70 ℃ -4 to +158 ℉
MaterialEnclosure: Heat-resistant ABS
Case cover: Polycarbonate, Fiber lock lever: PES
Connecting method0.2 mm2 4-core cabtyre cable, 2 m 6.562 ft long
Weight60 g approx.
AccessoriesMS-DIN-2 (Mounting bracket): 1 pc., Adjusting screwdriver: 1 pc.

High speed type

TypeNPN outputPNP output
Basic model No.FX-13FX-13P
Emitting elementRed LED
Supply voltage12 to 24 V DC±10 % Ripple P-P 10 % or less
Current / Power consumption35 mA or less
Sensing outputNPN open-collector transistor
・Maximum sink current: 100 mA
・Applied voltage: 30 V DC or less(between output and 0 V)
・Residual voltage:
1.5 V or less(at 100 mA sink current)
0.4 V or less(at 16 mA sink current)		PNP open-collector transistor
・Maximum source current: 100 mA
・Applied voltage: 30 V DC or less(between output and +V)
・Residual voltage:
1.5 V or less(at 100 mA source current)
0.4 V or less(at 16 mA source current)
 Output operationSelectable either Light-ON or Dark-ON, with selection switch
Response time30 μs or less
Sensitivity setting8-turn potentiometer with indicator
Ambient temperature-10 to +55 ℃ -14 to +131 ℉ (No dew condensation or icing allowed),
Storage: -20 to +70 ℃ -4 to +158 ℉
MaterialEnclosure: Heat-resistant ABS
Case cover: Polycarbonate, Fiber lock lever: PES
Connecting method0.2 mm2 4-core cabtyre cable, 2 m 6.562 ft long
Weight60 g approx.
AccessoriesMS-DIN-2 (Mounting bracket): 1 pc., Adjusting screwdriver: 1 pc.

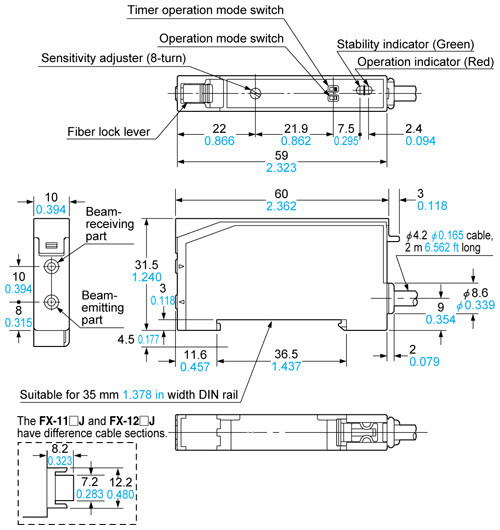

Dimensions

  • Unit: mm in
