NA2-N24-K｜General Purpose & Slim Body Area Sensor NA2-N

Download

Discontinued

Last time buy (JST)

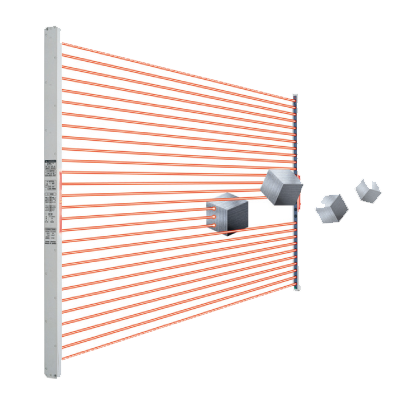

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

    Product Number

    NA2-N24-K

    Part Number

    NA2-N24-K

    Product

    General Purpose & Slim Body Area Sensor

    Details

    NPN output

    Product Name

    		 General Purpose & Slim Body Area Sensor NA2-N
    Substitute
    Sub Prod No.
    Sub Part No.
    Remark

    Spec Detail

    ItemSpecifications
    Part NumberNA2-N24-K
    Product NumberNA2-N24-K
    Products NameGeneral Purpose & Slim Body Area Sensor
    Product detailsNPN output
    The price of the productPlease contact our office
    CE marking directive complianceEMC Directive, RoHS Directive
    Sensing height460 mm 18.110 in
    Sensing range5 m 16.404 ft
    Beam pitch20 mm 0.787 in
    Sensing objectdia. 30 mm dia. 1.181 in or more opaque object (completely beam interrupted objects)
    Supply voltage12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
    Power consumption:Emitter:Job indicator ON1.1 W or less
    Power consumption:Emitter:Job indicator OFF1.0 W or less
    Power consumption:Receiver:Job indicator ON1.1 W or less
    Power consumption:Receiver:Job indicator OFF1.0 W or less
    OutputNPN open-collector transistor
    - Maximum sink current: 100 mA
    - Applied voltage: 30 V DC or less (between output and 0 V)
    - Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current)
    Output:Utilization categoryDC-12 or DC-13
    Output:Output operationON when all beam channels are received (OFF when one or more beam channels are interrupted)
    Output:Short-circuit protectionIncorporated
    Response time10 ms or less (12 ms or less when the interference prevention function is used)
    Indicators:EmitterEmitting indicator: Green LED x 2 (light up during emission; one LED lights up for Frequency A setting, both LEDs light up for Frequency B setting)
    Job indicator: Red LED (lights up, blinks or lights off when the job indicator input is applied, selected by operation mode switch)
    Indicators:ReceiverOperation indicator: Red LED (lights up when one or more beam channels are interrupted)
    Stable incident beam indicator: Green LED (lights up when all beam channels are stably received)
    Job indicator: Red LED (lights up, blinks or lights off when the job indicator input is applied, selected by operation mode switch)
    * When an excess current flows through the output, the stable incident beam indicator and the operation indicator on the receiver blink simultaneously due to operation of the short-circuit protection circuit.
    Interference prevention functionIncorporated
    Test input (emission halt) functionIncorporated
    Pollution degree3 (Industrial environment)
    ProtectionIP40(IEC)
    Ambient temperature-10 to +55 degrees +14 to +131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -10 to +60 degrees +14 to +140 degrees Fahrenheit
    Ambient humidity35 to 85 % RH, Storage: 35 to 85 % RH
    Ambient illuminanceIncandescent light: 3,000 lx or less at the light-receiving face
    Voltage withstandability1,000 V AC for one min. between all supply terminals connected together and enclosure
    Insulation resistance20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
    Vibration resistance10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each
    Shock resistance500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
    Emitting elementInfrared LED (Peak emission wavelength: 870 nm 0.034 mil, modulated) (Note：Peak emission wavelength has been changed from production in March, 2017.)
    MaterialEnclosure: Heat-resistant ABS
    Lens cover: Polyester
    Indicator cover: Acrylic
    Cable0.2 mm2 4-core cabtyre cable, 3 m 9.843 ft long
    Cable extensionExtension up to total 25 m 82.021 ft is possible for both emitter and receiver, with 0.2 mm2, or more, cable.
