High-performance Digital Pressure Sensor DP2 (Discontinued Products)

Download

Manual

Discontinued Products
Specifications

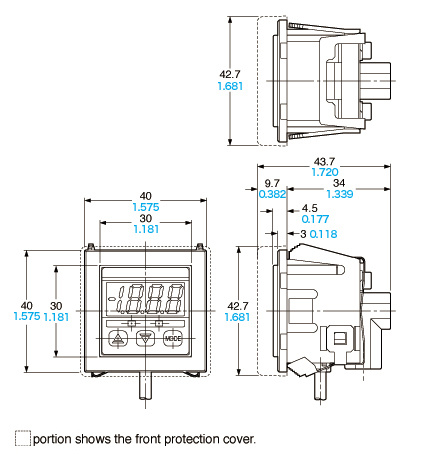

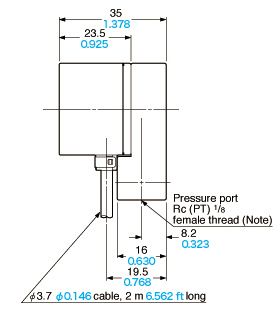

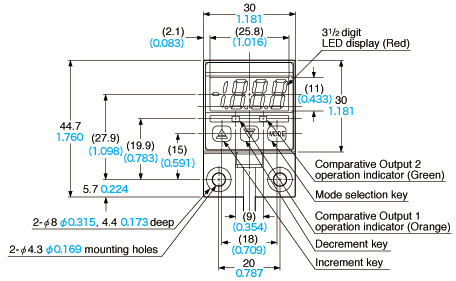

Dimensions

Ⅾiscontinued

Last time buy (JST)

September 30, 2015

We are sorry, the products have been discontinued. Please refer to the details of the discontinued products and the recommended substitutes list below.

------------------------------ Tab1 showing ------------------------------

Discontinued Products

Recommended Substitutes

Discontinued product
Product number/Part number	Last time buy	Product number/Part number	Product name	Remark
Product number: DP2-20 Part number: DP2-20	September 30, 2015 To be discontinued	Product number:- Part number:-	Dual Display Digital Pressure Sensor [For Gas] DP-100	Suggested alternative products may be different under the conditions of use. Contact us
Product number: DP2-20-C5 Part number: DP2-20-C5	September 30, 2015 To be discontinued	Product number:- Part number:-	Dual Display Digital Pressure Sensor [For Gas] DP-100	Suggested alternative products may be different under the conditions of use. Contact us
Product number: DP2-20F Part number: DP2-20F	September 30, 2015 To be discontinued	Product number:- Part number:-	Dual Display Digital Pressure Sensor [For Gas] DP-100	Suggested alternative products may be different under the conditions of use. Contact us
Product number: DP2-20F-P Part number: DP2-20F-P	September 30, 2015 To be discontinued	Product number:- Part number:-	Dual Display Digital Pressure Sensor [For Gas] DP-100	Suggested alternative products may be different under the conditions of use. Contact us
Product number: DP2-21 Part number: DP2-21	September 30, 2015 To be discontinued	Product number:- Part number:-	Dual Display Digital Pressure Sensor [For Gas] DP-100	Suggested alternative products may be different under the conditions of use. Contact us
Product number: DP2-21-C5 Part number: DP2-21-C5	September 30, 2015 To be discontinued	Product number:- Part number:-	Dual Display Digital Pressure Sensor [For Gas] DP-100	Suggested alternative products may be different under the conditions of use. Contact us
Product number: DP2-21F Part number: DP2-21F	September 30, 2015 To be discontinued	Product number:- Part number:-	Dual Display Digital Pressure Sensor [For Gas] DP-100	Suggested alternative products may be different under the conditions of use. Contact us
Product number: DP2-21F-P Part number: DP2-21F-P	September 30, 2015 To be discontinued	Product number:- Part number:-	Dual Display Digital Pressure Sensor [For Gas] DP-100	Suggested alternative products may be different under the conditions of use. Contact us
Product number: DP2-22 Part number: DP2-22	September 30, 2015 To be discontinued	Product number:- Part number:-	Dual Display Digital Pressure Sensor [For Gas] DP-100	Suggested alternative products may be different under the conditions of use. Contact us
Product number: DP2-22-C5 Part number: DP2-22-C5	September 30, 2015 To be discontinued	Product number:- Part number:-	Dual Display Digital Pressure Sensor [For Gas] DP-100	Suggested alternative products may be different under the conditions of use. Contact us
Product number: DP2-22F Part number: DP2-22F	September 30, 2015 To be discontinued	Product number:- Part number:-	Dual Display Digital Pressure Sensor [For Gas] DP-100	Suggested alternative products may be different under the conditions of use. Contact us
Product number: DP2-22F-P Part number: DP2-22F-P	September 30, 2015 To be discontinued	Product number:- Part number:-	Dual Display Digital Pressure Sensor [For Gas] DP-100	Suggested alternative products may be different under the conditions of use. Contact us
Product number: DP2-40E Part number: DP2-40E	September 30, 2015 To be discontinued	Product number:- Part number:-	Dual Display Digital Pressure Sensor [For Gas] DP-100	Suggested alternative products may be different under the conditions of use. Contact us
Product number: DP2-40N Part number: DP2-40N	September 30, 2015 To be discontinued	Product number:- Part number:-	Dual Display Digital Pressure Sensor [For Gas] DP-100	Suggested alternative products may be different under the conditions of use. Contact us
Product number: DP2-41 Part number: DP2-41	September 30, 2015 To be discontinued	Product number:- Part number:-	Dual Display Digital Pressure Sensor [For Gas] DP-100	Suggested alternative products may be different under the conditions of use. Contact us
Product number: DP2-41-C5 Part number: DP2-41-C5	September 30, 2015 To be discontinued	Product number:- Part number:-	Dual Display Digital Pressure Sensor [For Gas] DP-100	Suggested alternative products may be different under the conditions of use. Contact us
Product number: DP2-41E Part number: DP2-41E	September 30, 2015 To be discontinued	Product number:- Part number:-	Dual Display Digital Pressure Sensor [For Gas] DP-100	Suggested alternative products may be different under the conditions of use. Contact us
Product number: DP2-41N Part number: DP2-41N	September 30, 2015 To be discontinued	Product number:- Part number:-	Dual Display Digital Pressure Sensor [For Gas] DP-100	Suggested alternative products may be different under the conditions of use. Contact us
Product number: DP2-42 Part number: DP2-42	September 30, 2015 To be discontinued	Product number:- Part number:-	Dual Display Digital Pressure Sensor [For Gas] DP-100	Suggested alternative products may be different under the conditions of use. Contact us
Product number: DP2-42-C5 Part number: DP2-42-C5	September 30, 2015 To be discontinued	Product number:- Part number:-	Dual Display Digital Pressure Sensor [For Gas] DP-100	Suggested alternative products may be different under the conditions of use. Contact us
Product number: DP2-42E Part number: DP2-42E	September 30, 2015 To be discontinued	Product number:- Part number:-	Dual Display Digital Pressure Sensor [For Gas] DP-100	Suggested alternative products may be different under the conditions of use. Contact us
Product number: DP2-42N Part number: DP2-42N	September 30, 2015 To be discontinued	Product number:- Part number:-	Dual Display Digital Pressure Sensor [For Gas] DP-100	Suggested alternative products may be different under the conditions of use. Contact us
Product number: DP2-60 Part number: DP2-60	September 30, 2015 To be discontinued	Product number:- Part number:-	-	Sorry, no suggested alternative products.
Product number: DP2-60E Part number: DP2-60E	September 30, 2015 To be discontinued	Product number:- Part number:-	-	Sorry, no suggested alternative products.
Product number: DP2-60N Part number: DP2-60N	September 30, 2015 To be discontinued	Product number:- Part number:-	-	Sorry, no suggested alternative products.
Product number: DP2-61 Part number: DP2-61	September 30, 2015 To be discontinued	Product number:- Part number:-	-	Sorry, no suggested alternative products.
Product number: DP2-61E Part number: DP2-61E	September 30, 2015 To be discontinued	Product number:- Part number:-	-	Sorry, no suggested alternative products.
Product number: DP2-61N Part number: DP2-61N	September 30, 2015 To be discontinued	Product number:- Part number:-	-	Sorry, no suggested alternative products.
Product number: DP2-62 Part number: DP2-62	September 30, 2015 To be discontinued	Product number:- Part number:-	-	Sorry, no suggested alternative products.
Product number: DP2-62E Part number: DP2-62E	September 30, 2015 To be discontinued	Product number:- Part number:-	-	Sorry, no suggested alternative products.
Product number: DP2-62N Part number: DP2-62N	September 30, 2015 To be discontinued	Product number:- Part number:-	-	Sorry, no suggested alternative products.
Product number: DP2-80 Part number: DP2-80	September 30, 2015 To be discontinued	Product number:- Part number:-	Dual Display Digital Pressure Sensor [For Gas] DP-100	Suggested alternative products may be different under the conditions of use. Contact us
Product number: DP2-80-C5 Part number: DP2-80-C5	September 30, 2015 To be discontinued	Product number:- Part number:-	Dual Display Digital Pressure Sensor [For Gas] DP-100	Suggested alternative products may be different under the conditions of use. Contact us

Recommended Substitutes for Accessories/Options

Discontinued product
Product name	Product number/Part number	Last time buy	Product number/Part number	Product name	Remark
Ultra-compact Digital Panel Controller CA2(Discontinued)	Product number: CA2-T2 Part number: CA2-T2	September 29, 2023	Product number:- Part number:-	-	Sorry, no suggested alternative products.
Pressure port attachment	Product number: DPX-01 Part number: DPX-01	September 30, 2015	Product number:- Part number:-	-	Sorry, no suggested alternative products.
Hexagon-socket-head plug for pressure port	Product number: DPX-02 Part number: DPX-02	September 30, 2015	Product number:- Part number:-	-	Sorry, no suggested alternative products.
Straight bush	Product number: DPX-03 Part number: DPX-03	September 30, 2015	Product number:- Part number:-	-	Sorry, no suggested alternative products.

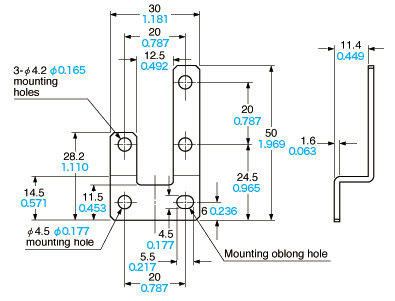

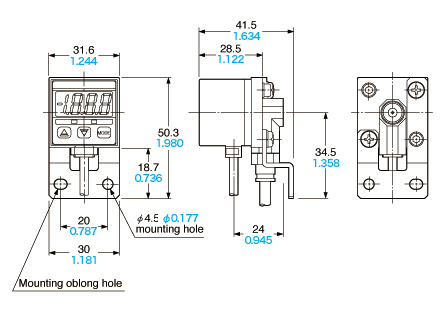

Mounting bracket	Product number: MS-DPX Part number: MS-DPX	September 30, 2015	Product number:- Part number:-	-	Sorry, no suggested alternative products.

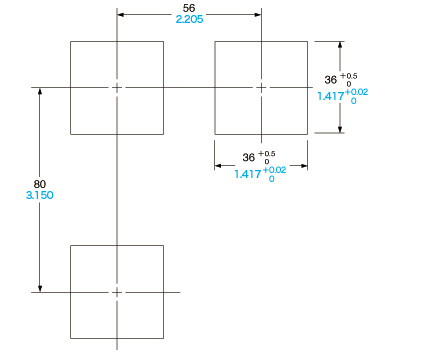

Panel mounting bracket	Product number: MS-DPX-2 Part number: MS-DPX-2	September 30, 2015	Product number:- Part number:-	-	Sorry, no suggested alternative products.

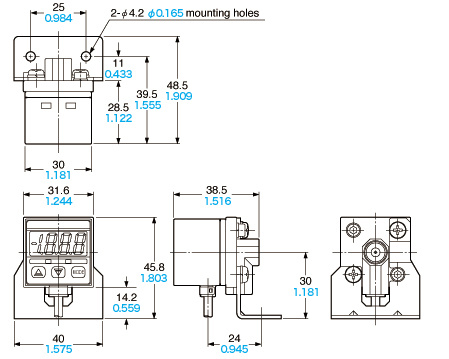

Mounting bracket	Product number: MS-DPX-4 Part number: MS-DPX-4	September 30, 2015	Product number:- Part number:-	-	Sorry, no suggested alternative products.

[Note]
The following applicable products and options are available continuously.

Designation	Model No.	Description
Front protection cover (For standard type)	DPX-04	It protects the sensor's adjustment panel. (It can be fitted when the panel mounting bracket is used.)

------------------------------ Tab2 showing ------------------------------

Specifications

Type		Vacuum pressure
		-101 kPa type
		Standard	Light weight	Flat	IP67
Model No.	Asia	DP2-20	DP2-80	-	DP2-60
	North America (Note 2)	DP2-20F(-P)	-	DP2-40N	DP2-60N
	Europe	-	-	DP2-40E	DP2-60E
Type of pressure		Gauge pressure
Rated pressure range		0 to -101.3 kPa
Set pressure range		5.1 to -101.3 kPa
Pressure withstandability		490 kPa
Applicable fluid		Non-corrosive gas
Selectable units		kPa, kgf/cm², bar, psi, mmHg, inHg
Supply voltage		12 to 24 V DC ⁺¹⁰ /_-15 % Ripple P-P 10 % or less
Current consumption		50 mA or less
Comparative outputs (Comparative Output 1 Comparative Output 2)		<Asia, North America (Standard NPN output, flat and IP67 types)> NPN open-collector transistor ・Maximum sink current: 100 mA <North America (Standard PNP output type), Europe> PNP open-collector transistor ・Maximum source current: 100 mA
	Output modes	Equipped with 4 types of modes: hysteresis mode, window comparator mode, dual output mode, automatic sensitivity setting mode (selectable by key operation)
	Response time	2.5 ms or less
Analog voltage output		Output voltage: 1 to 5 V (over rated pressure range), Zero-point: within 1 V ± 5 % F.S. Span: within 4 V ± 5 % F.S., Linearity: within ±1 % F.S., Output impedance: 1 kΩ approx.
Display		3 1/2 digit red LED display (Sampling rate: 4 times/sec. approx.)
	Displayable pressure range	5.1 to -101.3 kPa
Analog bar display		LED bar display in steps of 10 % F.S. approx.
Protection		Standard, Flat and Light weight types: IP40 (IEC), IP67 type: IP67 (IEC)
Ambient temperature		-10 to +50 ℃ +14 to +122 ℉ (No dew condensation or icing allowed), Storage: -10 to +60 ℃ +14 to +140 ℉
Pressure port	Asia	Standard, Flat and IP67 types: Rc (PT) 1/8 female thread, Light weight type: M5 female thread
	North America	Standard type: NPTF 1/8 female thread, Flat and IP67 types: NPT 1/8 female thread
	Europe	Flat and IP67 types: G (PF) 1/8 female thread
Material		Front case: ABS, Rear case: PPS (glass fi ber reinforced), Display surface: Acrylic Pressure port attachment: Die-cast zinc alloy [Light weight type: POM (glass fi ber reinforced), pressure port is brass (nickel plated)] Front cover (IP67 type only): Polycarbonate
Net weight		Standard type: 95 g approx., Flat type: 120 g approx., IP67 type: 370 g approx., Light weight type: 70 g approx.

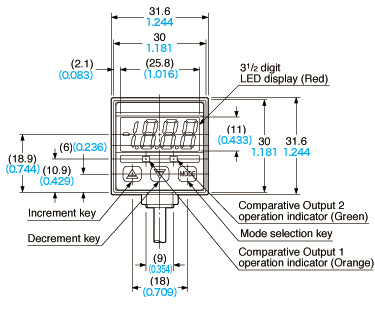

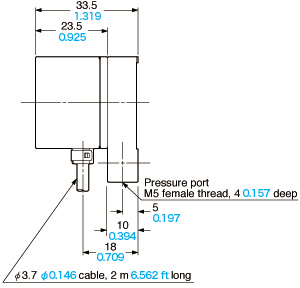

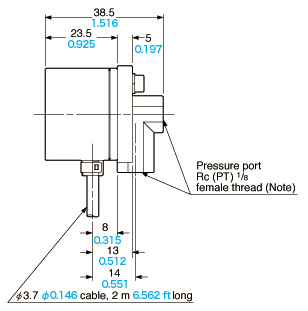

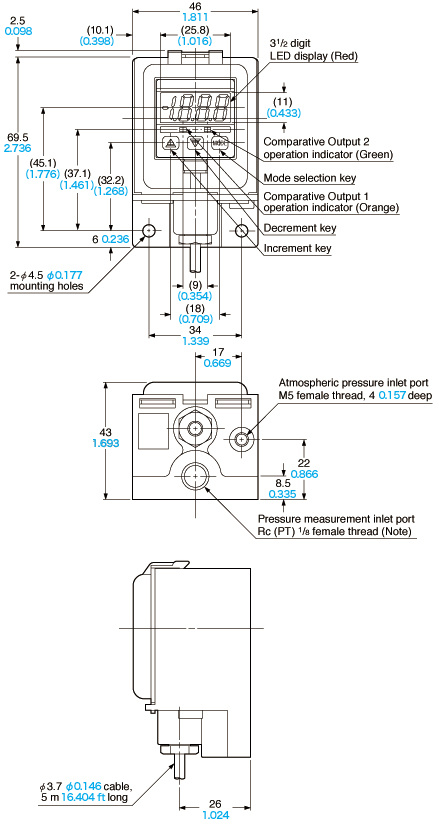

Dimensions		DP2-20□ : W31.6 x H31.6 x D38.5 mm W1.244 x H1.244 x D1.516 in DP2-40□ : W30 x H44.7 x D35 mm W1.181 x H1.760 x D1.378 in DP2-60□ : W46 x H69.5 x D43 mm W1.811 x H2.736 x D1.693 in DP2-80□ : W30 x H41 x D33.5 mm W1.181 x H1.614 x D1.319 in
Accessories		DPX-02 (Hexagon-socket-head plug for pressure port): 1 pc. (Standard type only), Pressure unit label: 1 pc.

Type		Positive pressure
		100 kPa type			1 MPa type
		Standard	Flat	IP67	Standard	Flat	IP67
Model No.	Asia	DP2-21	DP2-41	DP2-61	DP2-22	DP2-42	DP2-62
	North America (Note 2)	DP2-21F(-P)	DP2-41N	DP2-61N	DP2-22F(-P)	DP2-42N	DP2-62N
	Europe	-	DP2-41E	DP2-61E	-	DP2-42E	DP2-62E
Type of pressure		Gauge pressure
Rated pressure range		0 to 100.0 kPa			0 to 1.000 MPa
Set pressure range		-5.0 to 100.0 kPa			-0.050 to 1.000 MPa
Pressure withstandability		490 kPa			1.47 MPa
Applicable fluid		Non-corrosive gas
Selectable units		kPa, kgf/cm², bar, psi			MPa, kgf/cm², bar, psi
Supply voltage / Current consumption		12 to 24 V DC ⁺¹⁰ /_-15 % Ripple P-P 10 % or less / 50 mA or less
Comparative outputs (Comparative Output 1 Comparative Output 2)		<Asia, North America (Standard NPN output, flat and IP67 types)> NPN open-collector transistor ・Maximum sink current: 100 mA <North America (Standard PNP output type), Europe> PNP open-collector transistor ・Maximum source current: 100 mA
	Output modes	Equipped with 4 types of modes: hysteresis mode, window comparator mode, dual output mode, automatic sensitivity setting mode (selectable by key operation)
	Response time	2.5 ms or less
Analog voltage output		Output voltage: 1 to 5 V (over rated pressure range), Zero-point: within 1 V ± 5 % F.S. Span: within 4 V ± 5 % F.S., Linearity: within ±1 % F.S., Output impedance: 1 kΩ approx.
Display		3 1/2 digit red LED display (Sampling rate: 4 times/sec. approx.)
	Displayable pressure range	-5.0 to 100.0 kPa			-0.050 to 1.000 MPa
Analog bar display		LED bar display in steps of 10 % F.S. approx.
Protection		Standard, Flat and Light weight types: IP40 (IEC), IP67 type: IP67 (IEC)
Ambient temperature		-10 to +50 ℃ +14 to +122 ℉ (No dew condensation or icing allowed), Storage: -10 to +60 ℃ +14 to +140 ℉
Pressure port	Asia	Standard, Flat and IP67 types: Rc (PT) 1/8 female thread, Light weight type: M5 female thread
	North America	Standard type: NPTF 1/8 female thread, Flat and IP67 types: NPT 1/8 female thread
	Europe	Flat and IP67 types: G (PF) 1/8 female thread
Material		Front case: ABS, Rear case: PPS (glass fi ber reinforced), Display surface: Acrylic Pressure port attachment: Die-cast zinc alloy [Light weight type: POM (glass fi ber reinforced), pressure port is brass (nickel plated)] Front cover (IP67 type only): Polycarbonate
Net weight		Standard type: 95 g approx., Flat type: 120 g approx., IP67 type: 370 g approx., Light weight type: 70 g approx.
Dimensions		DP2-21□ / DP2-22□ : W31.6 x H31.6 x D38.5 mm W1.244 x H1.244 x D1.516 in DP2-41□ / DP2-42□ : W30 x H44.7 x D35 mm W1.181 x H1.760 x D1.378 in DP2-61□ / DP2-62□ : W46 x H69.5 x D43 mm W1.811 x H2.736 x D1.693 in
Accessories		DPX-02 (Hexagon-socket-head plug for pressure port): 1 pc. (Standard type only), Pressure unit label: 1 pc.
