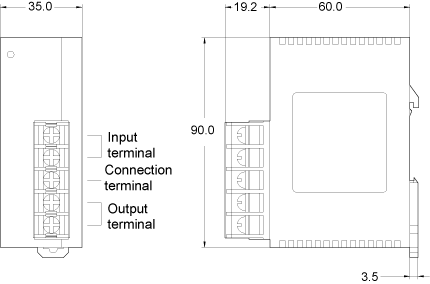

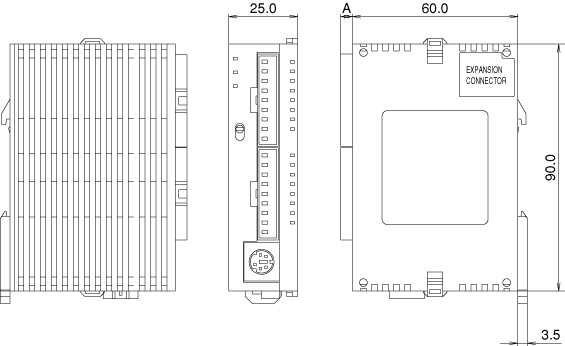

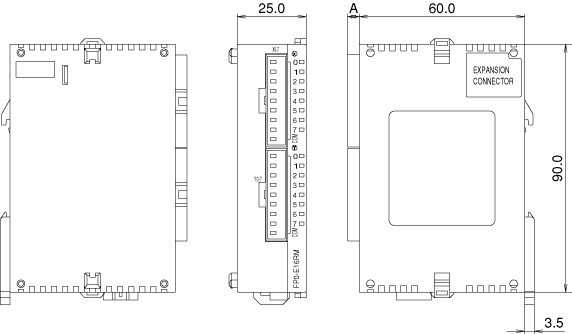

| Power supply and I/O Specifications | Power supply | 24V DC |
|---|
| Input | 24V DC ± common |
|---|
| Relay: 2 A, Transistor: 0.1 A (varies with different models) | Relay 2 A (resistor load)/Transistor 0.1 A (varies with different models) |
|---|
| Performance Specifications | Number of I/O points | C10 | 10 points |
|---|
| C14 | 14 points |
|---|
| C16 | 16 points |
|---|
| C32/T32 | Max. 128 at S-LINK block |
|---|
| I/O points when expanded | C10 | Max. 106 points |
|---|
| C14 | Max. 110 points |
|---|
| C16 | Max. 112 points |
|---|
| C32/T32 | Max. 128 points |
|---|
| SL1 | Max. 96 at expansion block |
|---|
| Operation speed | 0.9µs/step |
|---|
| Internal memory | EEP-ROM |
|---|
| Program capcity | 2.7 ksteps (C10/C14/C16), 5 ksteps (C32), 10 ksteps (T32) |
|---|
| Basic instructions | 83 |
|---|
| Applied instructions | 145 |
|---|
| Operation memory | Internal relay | 1008 points |
|---|
| Timer/Counter | 144 points in total |
|---|
| Data register (DT) | 1660 words (C10/C14/C16), 6144 words (C32/SL1), 16384 words (T32) |
|---|
| Special functions | Pulse catch input | 6 points (Sl1 excluded) |
|---|
| Interrupt input | 6 points (Sl1 excluded) |
|---|
| Analog I/O | Input: Max. 24 ch, Output: Max. 12 ch (When using FP0 analog unit) |
|---|
| Volume input | — |
|---|
| High-speed counter | Single-phase: 4 ch in total, Max. 10 kHz (SL1 excluded)
2-phase: 2 ch in total, Max. 2 kHz (SL1 excluded) |
|---|
Pulse
output | Single-phase: 1 ch x Max. 40 Hz to 10kHz
2-phase: 2 ch x Max. 40 Hz to 5kHz (C16/C32/T32) |
|---|
| Serial interface | RS232C.RS485 (when using C-NET adopter) |
|---|
| Network function | CC-Link, S-Link, Computer Link, Modem |
|---|
| Other functions | Program editing during RUN, Constant scan, 4-digit password, Calendar timers (T32), PID processing |
|---|
