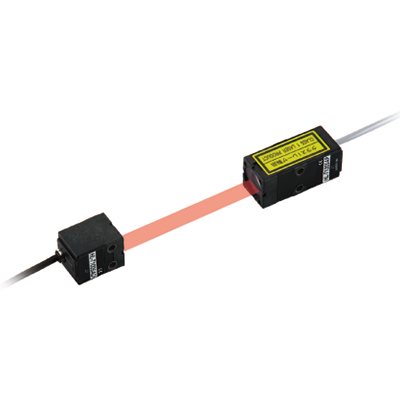

HL-T1005F｜Ultra-compact Laser Collimated Beam Sensor HL-T1

Download

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

Product Number

HL-T1005F

Part Number

HL-T1005F

Product

Ultra-compact Laser Collimated Beam Sensor

Details

Sensor head (Sensing width 5 mm 0.197 in type)

Product Name

 Ultra-compact Laser Collimated Beam Sensor HL-T1

Contact Us

*Specifications and design of the products are subject to change without notice for the product improvement.

Spec Detail

Specifications and design of the products are subject to change without notice for the product improvement.
ItemSpecifications
Part NumberHL-T1005F
Product NumberHL-T1005F
Products NameUltra-compact Laser Collimated Beam Sensor
Product detailsSensor head (Sensing width 5 mm 0.197 in type)
The price of the productPlease contact our office
TypeSensing width 5 mm 0.197 in type
Applicable controllerHL-AC1, HL-AC1P
Sensing range■■【In the case of(0 to 500 mm 0 to 19.685 in)】■■
Sensing width:
ø1 mm ø0.039 in

Min. sensing object:
ø8 micro m ø0.315 mil opaque object

Repeatability (During the state in which light is half blocked):
4 micro m 0.157 mil
(Note：In case of an average sampling rate of 64 times.)

Linear output resolution:
4 micro m 0.157 mil
(Note) In case of an average sampling rate of 64 times.
(Note)Value calculated with the linear output allowance factor (plus or minus 3 sigma) when connected to the controller included in the calculation of the detection width.
(Note：This value was obtained by converting the range of linear output fluctuation (plus or minus 3 sigma) into a sensing width, assuming that the smallest sensing object blocks the beam at the approximate center of the beam diameter of ø1 mm ø0.039 in.)


■■【In the case of (500 to 2,000 mm 19.685 to 78.74 in)】■■
Sensing width:
ø1 to ø2.5 mm ø0.039 to ø0.098 in

Min. sensing object:
ø50 micro m ø1.969 mil opaque object
Repeatability (During the state in which light is half blocked): -

Linear output resolution: -
-
Emission indicatorGreen LED (lights up during laser emission)
Interference prevention functionTwo units of sensors can be mounted close together. (When the controller interference prevention function is used)
Pollution degree3 (industrial environment)
Environmental resistance : Ambient temperature0 to +50 ℃ +32 to +122 ℉ (No dew condensation allowed), Storage: -25 to +65 ℃ -13 to +149 ℉
Environmental resistance : Ambient humidity35 to 85 % RH, Storage: 35 to 85 % RH
Environmental resistance : Ambient illuminanceIncandescent light: 10,000 liter x or less at the light-receiving face
Voltage withstandability1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance100 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Environmental resistance : Vibration resistance10 to 500 Hz frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each
Environmental resistance : Shock resistance300 m/s2 acceleration (30 G approx.) in X, Y and Z directions three times each
Emitting element : FDA regulations conforming typeRed semiconductor laser Class II (FDA)
(modulated, max. output: 0.35 mW, peak emission wavelength: 650 nm 0.026 mil)
(IEC / JIS / EN / GB : Class 1)
MaterialEnclosure: Polyetherimide
Case cover: Polycarbonate
Front cover: Glass
Cable0.09mm2 3-core shielded cable with connector, 0.5 m 1.640 ft long
Cable extensionExtension up to total 10 m 32.808 ft is possible, with the optional cable.
WeightEmitter: 15 g approx.
Receiver: 15 g approx.
Accessory• Sensor head-controller connection cable(CN-HLT1-1) × 1
• Sensor head mounting bracket set (MS-HLT1-1 or MS-LA3-1) × 2
• Chinese explanatory label × 1
• Light beam alignment stickers × 2
• Instruction Manual × 1
• Japanese / English explanatory label, label for opening section, caution label, label for protective casing (one each)
