GT01 (Discontinued Products)

Download

  • Discontinued Products

  • Specifications

  • Dimensions

Ⅾiscontinued

Last time buy (JST)

September 30, 2013

We are sorry, the products have been discontinued. Please refer to the details of the discontinued products and the recommended substitutes list below.

------------------------------ Tab1 showing ------------------------------

Discontinued Products

pic01

Accessories (Option)

[Note]
The following applicable products and options are available continuously.

DesignationAppearanceDescriptionPart No
Spare connector

COM. port connectors, 5 connectors in a set
One piece is installed on main unit.		AIGT084

Screen data transmission cable (for DOS/V computers)

AppearanceDescriptionPart No

9-pin D-SUB connector -- 5-pin mini-DIN connector
(L type: 3 m)		AFC8503

PLC connection cable

Programmable DisplayConnection cablePart No.PLC
GT01/GT01R
(5V DC、RS232C)


PLC connection cable (2 m 6.562 ft),
5-pin mini-DIN connector
— 4 single wires + Shielding wire		AIGT8142
(Note)		Panasonic Electric Works
FP Series
GT01/GT01R
(5V DC、RS422/RS485)


PLC connection cable (2 m 6.562 ft),
8-pin mini-DIN connector
— 6 single wires + Shielding wire		AIGT8152
(Note)		Mitsubishi Electric
FX Series
GT series
(24V DC、RS232C)


PLC connection cable (2 m 6.562 ft),
5-pin mini-DIN connector
— 3 single wires + Shielding wire
AIGT8165 (5 m 16.404 ft) is also available.		AIGT8162Panasonic Electric Works
FP Series
GT series
(24V DC、RS422/RS485)


PLC connection cable (5 m 16.404 ft),
8-pin mini-DIN connector — 4 single wires
+ Shielding wire		AIGT8175Mitsubishi Electric
FX Series
GT series
(24V DC、RS232C)


PLC connection cable (2 m 6.562 ft),
9-pin D-SUB connector — open wire		AIP81842Panasonic Electirc Works
FP2/FP2SH COM port,
9-pin D-SUB connector
example, CCU

(Note): This cable is for GT01/GT01R, and power is supplied through the TOOL port.

------------------------------ Tab2 showing ------------------------------

Specifications

Specifications

ItemGT01 specifications
5V/RS232C5V/RS42224V/RS232C24V/RS422
Rated voltage5 V DC24 V DC
Operating voltage range4.5 to 5.5 V DC21.6 to 26.4 V DC
Power consumption1W max.1.1W max.2W max.
Power supply unit isolation method-
Ambient temperature0 to 50°C
Ambient humidity20 to 85% RH (No dew condensation)
Storage temperature-20 to 60°C
Storage humidity10 to 85% RH (No dew condensation)
Vibration resistance10 to 55 Hz (1-minute cycle):Double amplitude: 0.75 mm, 10 minutes in each of the X, Y, and Z directions
Shock resistance98 m/s2 min: 4 times in each of the X, Y, and Z directions
Superposed noise
suppression		1,000 V [P-P] min, pulse width of 50 ns, 1 ms between power supply terminals (by a noise simulator)
*AIGT0030B1/AIGT0030H1: When the ferrite device supplied with our PLC connection cable (AIGT8142) is mounted
Environmental resistanceIP65 (in the initial stages) Dust-proof and drip-proof from the front of the panel only (Rubber packing is attached to the panel contact surface.)
*When reattaching the panel, replace the waterproof packing.
MassApprox. 160 g
DisplayDisplay deviceSTN monochrome LCD
Resolution128 (W) x 64 (H) dots
Display color2 colors (black/white)
Displayable area70.38 (W) x 35.18 (H) mm
Backlight3-color LED (green, orange, red) *No need for replacement
FunctionsFont typesFixed (GTWIN) : 8 x 8, 16 x 8, and 16 x 16 dots Characters can be displayed in the 1, 2, 4, or 8 times width or height.
TrueType (GTWIN): 10, 12, 14, 16, 24, 26, 28, 32, 36, 48, and 64 Windows (R): 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 32, 36, 48, and 64
LanguagesJapanese, English, Korean, German, French, Spanish, Italian, Simplified Chinese, Traditional Chinese, Turkish
GraphicsStraight lines, continuous straight lines, squares, circles, ovals, arcs, elliptic arcs, fan shapes, elliptic fan shapes, beveled squares, bitmaps
Number of screensApprox. 160 screens*1
Screen No.
that can be set		Base screens: No. 0 to 3FF, Keyboard screens: No. 0 to 7
Part functionsMessages, lamps, switches, data, bar graphs, clocks (*), keyboards, and line graphs
Other functionsRecipe, flow display, write device, and language switching
Clock functionRefers to and displays external clock data.(Not provided with a built-in clock function.)
Contrast adjustmentContrast can be adjusted by using the touch panel.
Automatic communication settingsThe communication conditions of dedicated software and PLC can be automatically set by connecting a cable.
Debugging functionGT connected between a PC and PLC allows the PLC to be debugged without a direct connection with the PC.
Screen creationDedicated software should be used. Applicable OS: Windowsｮ 95 (OSR2 or later)/98/Me/2000/NT/XP
Touch key resolutionFree layout (8 dots min)
Touch key operation force0.5 N max
Touch key life1 million operations min
COM. portCommunication standardConforms to RS232CConforms to RS422Conforms to RS232CConforms to RS422
External communication conditionsBaud rate: 9,600/19,200/38,400/57,600/115,200 bps
Data bits: 7 or 8 bits
Parity: None, Odd, Even
Stop bits: 1 bit
ProtocolOur FP series supported/General-purpose serial interface supported/Other companies' PLC supported
ConnectorConnector terminal base (8 pins)
Screen data transfer interfaceCommunication standardTool port (Conforms to RS232C)
Communication conditions with personal computersBaud rate: 9,600/19,200/115,200/230,400 bps*2
Data bits: 8 bits
Parity: None, Odd, Even
Stop bits: 1 bit
ProtocolOur dedicated protocol
Connector5-pin mini-DIN
Ethernet port-

※1　The number of screens that can be registered varies according to the registered contents.

※2　A USB/RS232C conversion cable should be used to achieve a communication speed of 230,400 bps. When the TOOL port of GT is set to 230,400 bps, the auto communication setting function of GTWIN cannot be used. Set the communication speed to 230,400 bps on GTWIN before transferring data.

Conformance to the UL/cUL standards

UL/cUL file No.UL Standard No.
E96300UL508

Memory

Screen data and GTWIN configuration setting data

Itemspecifications
User's memoryF-ROM
Memory capacity384 Kbyte

------------------------------ Tab3 showing ------------------------------

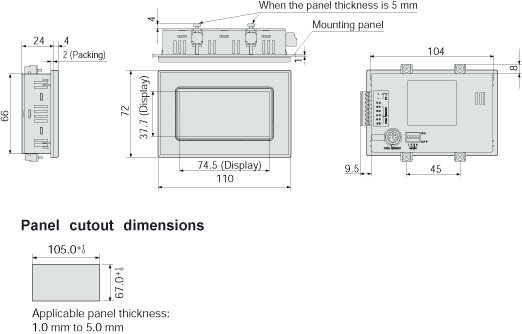

Dimensions

  • Unit: mm in

Dimensions
