Control Unit ELC500 (Discontinued)
Download
-
Discontinued Products
-
Specifications
-
Dimensions
-
Software
Ⅾiscontinued
Last time buy
September 30, 2024
------------------------------ Tab1 showing ------------------------------
Discontinued Products
Software
Product name | Model No. | Descriptions |
---|---|---|
Configurator EL500 (Note) | - | Main unit setting software |
Control FPWIN Pro7 | AFPSPR7A | Programming tool |
Configurator WD (Note) | - | IP address search tool |
Control Web Creator (Note) | AFPSWC | Custom website creation software (Key unit must be purchased.) |
Key unit | AFPSWCKEY | License key for Control Web Creator, 1 license, USB port connection |
(Note) : Can be downloaded free from the Panasonic website.
------------------------------ Tab2 showing ------------------------------
Specifications
Main unit specifications
Item | Specification |
---|---|
Rated operating voltage | 24 V DC |
Current consumption | 300 mA or less (Note) |
Ambient temperature | 0 to +55 ℃ +32 to +131 ℉ |
Ambient humidity | 10 to 95% RH(at +25 ℃ +77 ℉, no dew condensation allowed) |
Serial communication | Ethernet: 1 port, RS-232C: 1 port, RS-485 / 422: 2 ports |
Compatible regulations | Low Voltage Directive, EMC Directive, RoHS Directive |
Note :
Regarding system consumption current, see the User’s Manual for ELC500 Control Unit.
External memory specifications
Item | Specification |
---|---|
Supported media | SD memory card |
Compatible format | Compatible with SD / SDHC standards (FAT16 and FAT32 only) |
Capacity | 2 to 32 GB |
Speed class | Class 2 to Class 10 |
Notes :
1) If a (momentary) power outage occurs during writing, data can become corrupted. Use of UPS (Uninterruptible Power Supply) is recommended.
2) Please use the SLC type SD memory card.
For the handling of SD memory card, see the User’s Manual for ELC500 Control Unit.
Main specifications
Item | Specification |
---|---|
Communication (Downstream communication) | • Ethernet: 1 port [supported protocols: MEWTOCOL-COM, Modbus TCP; number of nodes: 197 units; number of simultaneous connections: 20] • RS-232C: 1 port [supported protocols: MEWTOCOL-COM, Modbus RTU, general-purpose communication] • RS-485 / 422: 2 ports [supported protocols: MEWTOCOL-COM, Modbus RTU, PLC link, general-purpose communication] |
Data collection (logging) function | • Stored data: Instantaneous values, differential values • Data storage location, storage format: SD / SDHC memory card, CSV file format • Maximum number of registerable points: 512 points/16 files (Up to 16 files can be registered. Up to 128 points can be registered in 1 file.) • Number of storable files: 100 files |
Demand monitoring function | • Demand type: Constant-cycle (15 / 30 / 60 min) demand; demand cycle: 5 sec (high speed)/min, IEC demand (Note 1) (demand / interval time span: 1 to 60 min) • Total number of demand monitoring target units: 50 units • Number of registerable I/O control devices / control patterns: 16 points / alarm-linked control, startup control, cyclic control (ON/OFF control for all) (Note 2) |
Network function | • Communication protocols: TCP/IP, UDP/IP • Application protocols: SMTP (SMTP AUTH supported), FTP (client / server), SNTP, DHCP, DNS, HTTP (server) |
Email transmission function | • Number of registerable points: 16 points • Subject title: 64 half-width characters (32 full-width characters), Message: 256 half-width characters (128 full-width characters) |
Others | • Web server function: Custom Web region, 8 MB (Control Web Creator is required), number of simultaneous sessions: 16 • Extension function: Addition of FP7 (PLC) units enables acquisition of information such as I/O signals, analog data and temperature data. Maximum of 8 units (Note 3) • Program function: 32-k steps Programming is possible when Control FPWIN Pro7 is used. |
Notes :
1) Demand in compliance with IEC 61557-12, “Performance measuring and monitoring devices (PMD)”
2) Use ECOnect® series remote I/O units (UENU2D4R12).
3) The number of connectable units is limited. For details, refer to the ELC500 Control Unit Specifications or manual.
Note :
Ethernet is a registered trademark of Fuji Xerox Co., Ltd. and Xerox Corporation in the U.S.
Modbus protocol is a communication protocol developed by Modicon Inc. for use with programmable logic controllers (PLCs).
Others
------------------------------ Tab3 showing ------------------------------

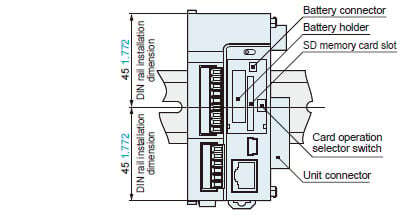

Dimensions
- Unit: mm in
Tolerance: ±1.0
<Shown with card cover and end unit removed>
------------------------------ Tab4 showing ------------------------------
Software
Configrator EL500
Software for entering settings for data collection / storage, demand monitoring / control, email, etc. in ELC500 Control Unit
*
SD / SDHC memory card must be purchased separately.
Easy setting

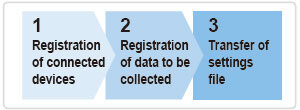

■Setting flow
For collection of data necessary for visualization

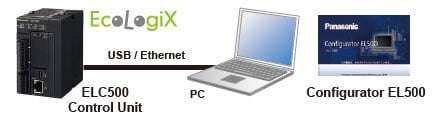

■Connection of ELC500 to PC
■Examples of typical screens

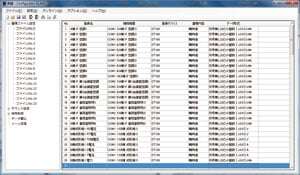

Registration of data storage devices
Used to register devices that collect data. Maximum of 512 points can be registered.

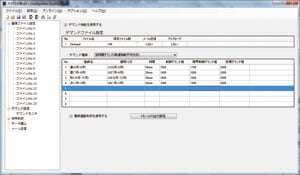

Demand monitoring / control setting
Used to set demand type and file and enter alarm output control setting.
Current value monitor
Monitors the storage device and main unit status. This screen is useful for checking equipment operations in startup.
■Items necessary for demand control setting
- Demand type setting
- Target demand setting
- Demand monitoring device setting
- Remote I/O unit control setting

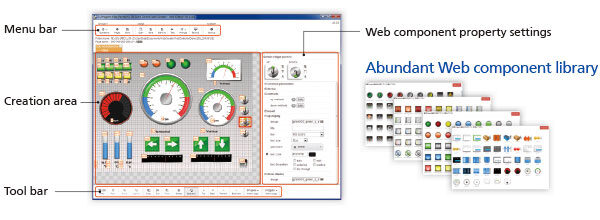

Control Web Creator
This is a graphics creation tool that allows you to easily design Web content that is published by the ELC500 Control unit. You can creatively design content by arranging Web components such as switches, lamps and meters on the screen and then setting the properties. You can link your content to information in the ELC500 without any knowledge of HTML.
- Same style of operation as the program display image creation tool.
- Components can be arranged by dragging and dropping.
- Detailed component settings are easy using properties.
- Components can be resized without reduction in quality.
- Images can be pasted in.
