KS1 (Discontinued Products)

  • Discontinued Products

  • System Configuration

  • Specifications

  • Dimensions

  • Cautions For Use

Ⅾiscontinued

Last time buy

September 29, 2023

We are sorry, the products have been discontinued. Please refer to the details of the discontinued products and the recommended substitutes list below.

------------------------------ Tab1 showing ------------------------------

Discontinued Products

------------------------------ Tab2 showing ------------------------------

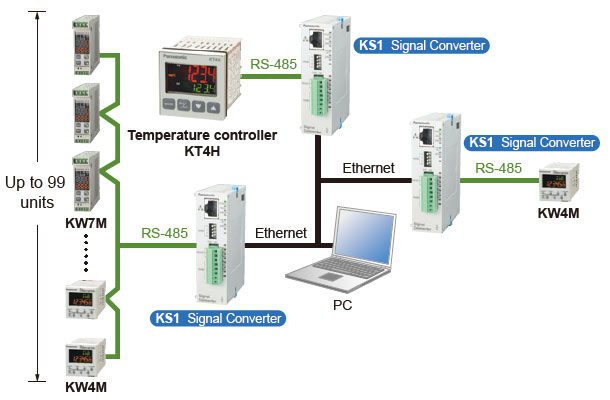

システム構成

KS1信号変換器_(終了品)

------------------------------ Tab3 showing ------------------------------

Specifications

General Specifications

ItemSpecifications
Rated voltage24 V DC
Operating voltage range90 to 110%V of rated voltage (21.6 to 26.4 V DC)
Rush current12 A or less
Current consumption100 mA or less
Allowed momentary power off time10 ms
FuseBuilt-in type
Terminal screwM2
Ambient temperature0 to 55°C
Storage temperature-20 to +75°C
Ambient humidity30 to 85% RH (at 20°C, non-condensing)
Breakdown voltage500 V AC 1 minuteRS485 terminals ⇔ Combined power and ground terminals
Insulation resistance100 Mohm or higher (500 V DC using an insulation resistance meter)
Vibration resistance10 to 55 Hz, 1 cycle/min.: double amplitude of 0.75 mm, 1 hour on 3 axes
Shock resistance294 m/s2 or more, 5 times on 3 axes
Dimensions25 X 60 X 90
WeightApprox. 80 g

Communication Specifications Interface: RS232C and RS485

ItemSpecifications
InterfaceRS-232C (non-insulated)RS-485 (insulated)
Conversion COM port*1COM1COM2
Communication style1:1 communication1:N communication
Number of connection units1 unitMax. 99 units
Communication methodFull duplex systemHalf-duplex operation
Synchronous systemSynchronous communication method
Transmission distance15 m 49 ftMax. 1,200 m 3,937 ft*2,3
Transmission speed2,400 / 4,800 / 9,600 / 19,200 / 38,400 / 57,600 / 115,200 bps
Connection connector quantityMax. 3
COM reception time-outSetting range 10 ms to 300 s
Non-transmission connection cut-off timeSetting range: 0 to 1800 s (Setting value of 0 is not cut off)
Transmission
format
Data length8 bit fixed
ParityOdd / even / none
Stop bit1 bit/2 bit
Terminator codeCR / CR+LF / None
Serial ⇔ Ethernet conversion formatCommand response format

*1  COM1 and COM2 can be used simultaneously.

*2  When connecting a commercially available device, please confirm operation using the actual device. In some case, the number of stations, transmission distance, and communication speed vary depending on the connected device.

*3  The values for the transmission distance, communication speed and number of stations should be within the values noted in the graph.

Communication Specifications Interface: Ethernet

ItemSpecifications
InterfaceIEEE802.3u, 10BASE-T/100BASE-TX
Connector shapeRJ45
Transmission specificationsTransmission speed10Mbps / 100Mbps
Transmission methodBase band
Max. segment length100 m
Communication cableCategory 5 UTP cable
ProtocolModbus TCP (RTU, ASCII), TCP/IP
FunctionsAuto negotiation function, MDI/MDI-X, Auto crossover function

* Ethernet is a registered trademark of Xerox Corporation.

------------------------------ Tab4 showing ------------------------------

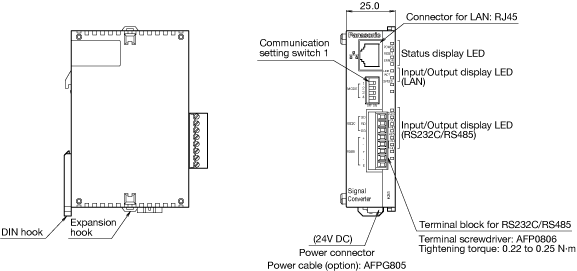

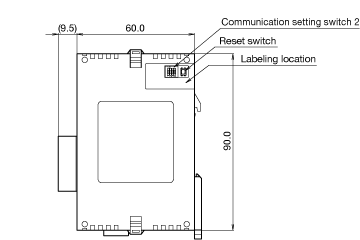

Dimensions

  • Unit: mm in

------------------------------ Tab5 showing ------------------------------

Cautions For Use

1.When using this unit with other companies' equipment, check the operation with the actual equipment connected.
2.To ensure correct operation, read the "Installation Instructions" carefully before use.
3.For details, specifications, and handling methods, check the KS1 Signal Converter User's Manual.
