ATB71228｜A-TB72/72Q Flat Time Switches (Flush-Mount Type, Direct Mount Type)(Discontinued)

Download

Discontinued

Last time buy (JST)

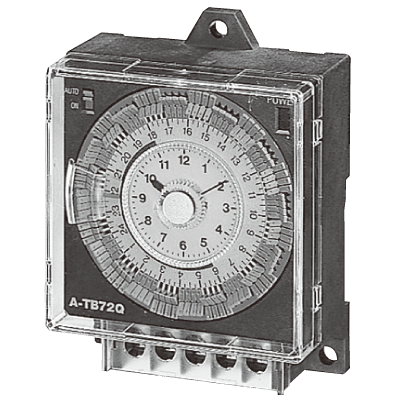

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

    Product Number

    A-TB72-DD-HR1C-220V

    Part Number

    ATB71228

    Product

    A-TB72/72Q Flat Time Switches

    Details

    Direct Mount Type [AC motor type]

    Product Name

    		 A-TB72/72Q Flat Time Switches (Flush-Mount Type, Direct Mount Type)(Discontinued)
    Substitute
    Sub Prod No.
    Sub Part No.
    Remark

    Spec Detail

    ItemSpecifications
    Part NumberATB71228
    Product NumberA-TB72-DD-HR1C-220V
    Products NameA-TB72/72Q Flat Time Switches
    Product detailsDirect Mount Type [AC motor type]
    The price of the productPlease contact our office
    Rating:Frequency50 / 60Hz (Switchable)
    Rating:Power consumption1.5W or less
    Rating:Load:CircuitInput / output separate circuit
    Rating:Load:Manual ON / AUTOManual switch provided
    Rating:Load:Capacity(Resistive load)15A 250V AC
    Rating:Setting:SystemBuilt-in setting element swing type
    Rating:Setting:Minimum unit15-minute intervals
    Rating:Setting:Minimum range15 minutes
    Rating:Setting:No. of settingMax. 48 (ON / OFF)
    Rating:Power failure compensation-
    Time accuracy:Clock accuracySynchronous with power supply frequency
    Time accuracy:ON clock accuracyplus or minus 5 min. (at 25 degrees ), not including time synchronization errors
    Contact specifications:Contact arrangement1 Form C
    Contact specifications:Contact typeCrimp terminal or bare wires
    Contact specifications:Contact materialSilver alloy
    Life:Mechanical life(contact)10 5 times or more
    Life:Electrical life(at rated load)2 x 10 4 times or more (ON / OFF)
    Electrical characteristics:Allowable operating voltage range85 to 115% of rated voltage
    Electrical characteristics:Insulation resistance (initial)More than 100MOhm between charged and uncharged sections
    More than 100MOhm between contacts (at 500V DC megger)
    Electrical characteristics:Dielectric strength (initial)Between charged and uncharged sections: 1,500V AC/1 min.
    Between contacts: 1,000V AC/1 min.
    Electrical characteristics:Surge resistanceSurge voltage 7,000V (plus or minus 1.2 x 50micro s one time)
    Electrical characteristics:Noise resistanceNoise simulator 2,000V
    Electrical characteristics:Temperature rise60degrees or less (at 25degrees )
    Mechanical characteristics:Malfunctional vibration10 to 55Hz (amplitude: 0.3mm) for 10 minutes in each vertical, horizontal and lateral direction
    Mechanical characteristics:Destructive vibration16.7Hz (amplitude: 4.0mm) for 1 hour in each vertical, horizontal and lateral direction
    Mechanical characteristics:Malfunctional shock49m/s2 [5G] or more, 4 times in each vertical, horizontal and lateral direction
    Mechanical characteristics:Destructive shock490m/s2 [50G] or more, 5 times in each vertical, horizontal and lateral direction
    Ambient conditions:Ambient operating temperature-10 degrees to +50 degrees +14 degrees Fahrenheit to +122 degrees Fahrenheit
    Ambient conditions:Ambient operating humidity45 to 85% RH (non-condensing)
    Weight190 g 6.70 oz
