EVPAT2G1B000｜3.4mm x 1.7mm Side-operational Edge Mount

Download

Discontinued

Last time buy (JST)

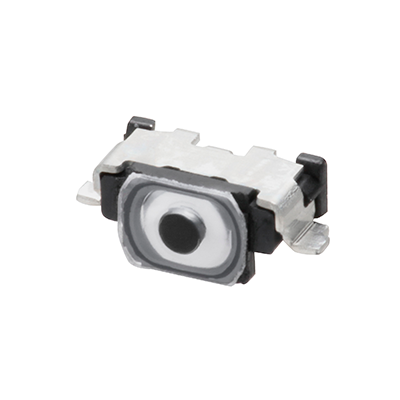

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

    Product Number

    EVPAT2G1B000

    Part Number

    EVPAT2G1B000

    Product Name

    		 3.4mm x 1.7mm Side-operational Edge Mount

    Features

    Side operational type with small size and improved soldering strength in operationg direction. IP67
    Substitute
    Sub Prod No.
    Sub Part No.
    Remark

    Spec Detail

    ItemSpecifications
    Part NumberEVPAT2G1B000
    Product NumberEVPAT2G1B000
    Type:EVPAT
    External dimensions (LxW) (mm)3.4 x 1.9
    External dimensions (H) (mm)1.65
    Mounting Height (mm)1.105
    Dimensions excluding push plate (mm)1.73
    Operating directionSide push
    Applicable solderingReflow
    Mounting typeEdge Mount
    TypeSnap action / Push-on type SPST
    Rating10μA 2V DC to 20mA 15V DC (Resistive load)
    Contact Resistance (mΩ max.)500
    Insulation Resistance (MΩ min. at 100V DC)50
    Dielectric Withstanding Voltage 250 V AC (for 1minute)
    Bouncing10ms max. (ON, OFF)
    Operating Force (N)1.6
    Travel TypeShort Push Travel
    Travel (mm)0.11
    Operating Life500,000 cycles
    Protective constructionIP67
    Operating Temperature-40℃ to +85℃
    Storage Temperature-40℃ to +85℃ (Bulk)
    -20℃ to +60℃ (Taping)
    Terminal typeFlat
    Push Plate
    (Actuator)    		With
    Ground TerminalWith
    BossWithout
    PackagingEmbossed Taping (Reel Pack)
    Minimum Quantity/Packing Unit10,000 pcs.
    Quantity/Carton50,000 pcs.
