AQ1398｜AQ1 Solid State Relay
Download
Discontinued
Last time buy (JST)

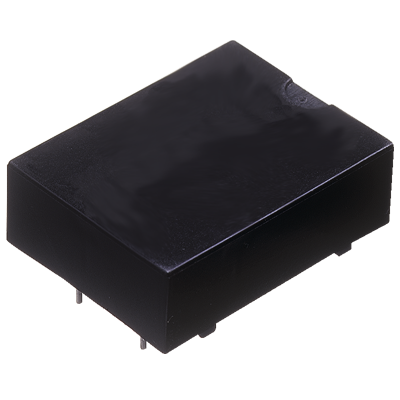

*Photo may vary from actual product.
This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.
| Product Number | AQ3A2-J-ZT4/32VDC |
|---|---|
| Part Number | AQ1398 |
| Details | AC type |
| Product Name | AQ1 Solid State Relay |
| Features | High capacity up to 3 A/10 A PC board terminal type |
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | AQ1398 |
| Product Number | AQ3A2-J-ZT4/32VDC |
| Product details | AC type |
| Type of load | AC type |
| Method | Zero-cross |
| Package | SIL4pin |
| Type of shape | Flat |
| Snubber circuit | With snubber circuit |
| Terminal shape | Standard PC board terminal |
| Packing style | Carton |
| Packing: Carton (pcs.) | 20 |
| Packing: Case (pcs.) | 200 |
Ratings
| Item | Specifications |
|---|---|
| Input side: Input voltage | 4 to 32V DC |
| Input side:Drop-out voltage | Min. 1.0V |
| Output side: Max. load current | 3A |
| Output side: Load voltage | 75 to 250Vrms |
| Output: Non-repetitive surge current | 100A |
| Output side: Max. OFF-State leakage current | 5mA |
Characteristics
| Item | Specifications |
|---|---|
| Operate time, Max. | 1/2 cycle of voltage sine wave + 1ms |
| Release time, Max. | 1/2 cycle of voltage sine wave + 1ms |
| I/O isolation voltage | 4,000 Vrms between input and output 2,500 Vrms between input, output and case |
| Ambient temperature | -30℃ to +80℃ |
| Storage temperature | -30℃ to +100℃ |
Information on Compliance with Standards
| Status | Status | Information on Compliance | ||
|---|---|---|---|---|
| UL/C-UL | Approval | File No. | E43149 | |
| Rating | 3A 250V AC | |||
| Remarks | - | |||
| Last update | ||||
| CSA | N/A | File No. | - | |
| Rating | - | |||
| Remarks | - | |||
| Last update | ||||
| VDE | Approval | File No. | 40018273 | |
| Rating | 3A 264V AC | |||
| Remarks | - | |||
| Last update | ||||
| Mark on products* | ||||
* The "Mark on products" field shows the standards' certificate type marked to products. Note that not all certified products have a certificate mark affixed to them.
