AJVN5244F｜JV-N Relays
Download

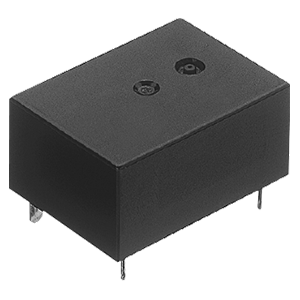

*Photo may vary from actual product.
| Product Number | JVN1aF-100V-F |
|---|---|
| Part Number | AJVN5244F |
| Product Name | JV-N Relays |
| Features | 1 Form A 16 A, low profile: 10.9 mm power relays for heater control |
The external content (including but not limited to ECAD data) displayed hereafter is provided solely as reference data for design evaluation and review purposes. We make no warranties whatsoever with respect to such content, including, without limitation, its accuracy, completeness, usefulness, reliability, fitness for a particular purpose, non-infringement of intellectual property rights or other rights of any third party, or any other matter. In particular, please note that the content displayed hereafter may be presented after being simplified or converted by a third party based on data originally provided by us.
To the maximum extent permitted by applicable law, any use, editing, or any design, evaluation, manufacture, or other activities based on such content shall be undertaken solely at your own risk and responsibility. We shall not be liable for any damages, losses, or expenses arising from or in connection with any of the foregoing, whether in contract, tort (including negligence), strict liability, or otherwise.
Content provided by third parties may be subject to terms and conditions established by such third parties.
If you have read and agree to the above, please click "OK".
- Download RoHS Compliance Certificate
- Download EU REACH SVHC Report
- A List of Part Numbers in This Series
Contact Us
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | AJVN5244F |
| Product Number | JVN1aF-100V-F |
| Protective construction | Flux-resistant |
| Operating function | Single side stable |
| Terminal shape | PC board terminal |
| Relay shape | Flat type |
| Coil insulation class | Class E insulation |
| Packing style | Carton |
| Standard packing Carton (pieces) | 100 |
| Standard packing Case (pieces) | 1,000 |
Coil data
| Item | Specifications |
|---|---|
| Rated coil voltage | 100 V DC |
| Operate voltage (at20℃) | Max. 60 V DC (Initial) |
| Release voltage (at20℃) | Min. 4 V DC (Initial) |
| Rated operating current [±10%] (at 20℃) | 6 mA |
| Coil resistance [±10%] (at 20℃) | 16,600 Ω |
| Rated operating power | 600 mW |
| Max. allowable voltage (at 20℃) | 110 V DC |
Specifications
| Item | Specifications |
|---|---|
| Contact arrangement | 1 Form A |
| Contact shape | Single |
| Contact resistance (initial) | Max. 100 mΩ (by voltage drop 6 V DC 1 A) |
| Contact material | AgSnO2 type |
| Contact rating (resistive load) | 16 A 125 V AC, 10 A 277 V AC, 10 A 30 V DC |
| Max. switching power (resistive load) | 2,770 VA, 300 W |
| Max. switching voltage | 277 V AC, 110 V DC (0.3 A) |
| Max. switching current | 16 A (AC), 10 A (DC) |
| Min. switching load (reference value) | 100 mA 5 V DC |
| Insulation resistance (initial) | Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.) |
| Dielectric strength (initial) : Between open contacts | 1,000 Vrms for 1 min (detection current: 10 mA) |
| Dielectric strength (initial) : Between contact and coil | 2,500 Vrms for 1 min (detection current: 10 mA) ( coil de-energized condition ) |
| Surge withstand voltage (initial) : Between contact and coil | 4,500 V ( coil de-energized condition ) |
| Operate time (initial) (at 20℃) | Max. 8 ms (100 V DC) at rated coil voltage (without bounce) |
| Release time (initial) (at 20℃) | Max. 20 ms at rated coil voltage ( without bounce, coil with diode ) |
| Shock resistance (Functional) (initial) | 200 m/s2 (half-sine shock pulse: 11 ms, detection time: 10 μs) |
| Shock resistance (Destructive) (initial) | 1,000 m/s2 (half-sine shock pulse: 6 ms) |
| Vibration resistance (Functional)(initial) | 10 to 55 Hz (at double amplitude of 1.6 mm, detection time: 10 μs) |
| Vibration resistance (Destructive)(initial) | 10 to 55 Hz (at double amplitude of 2 mm) |
| Mechanical life | Min. 20x106 ope. (switching frequency: at 180 times/min) ( coil with diode ) |
| Conditions | Ambient temperature: -40 to +60℃ Humidity: 5 to 85% RH (Avoid icing and condensation) |
| Unit weight | Approx. 8 g |
Expected electrical life
| Item | Specifications |
|---|---|
| Resistive load | [switching frequency: 20 times/min, Coil without diode] Min. 10x103 ope. 16 A 125 V AC Min. 50x103 ope. 10 A 125 V AC Min. 100x103 ope. 8 A 125 V AC Min. 50x103 ope. 10 A 277 V AC Min. 100x103 ope. 10 A 30 V DC |
Information on Compliance with Standards
| Status | Status | Information on Compliance | ||
|---|---|---|---|---|
| UL | Approval 認定書(写)を 請求する | File No. | E43028 | |
| Rating | 16A 125V AC Genaral Use 16A 277V AC General Use 10A 30V DC Resistive 0.3A 110V DC Resistive 1/10 HP 125V AC 1/10 HP 277V AC | |||
| Remarks | - | |||
| Last update | ||||
| CSA | Approval 認定書(写)を 請求する | File No. | 1678144 | |
| Rating | 16A 125V AC 16A 277V AC 10A 30V DC 0.3A 110V DC 1/10 HP 125V AC 1/10 HP 277V AC | |||
| Remarks | - | |||
| Last update | ||||
| VDE | Approval 認定書(写)を 請求する | File No. | 40055712 | |
| Rating | 16A 250V AC(cosφ=1.0) -40°C / +60°C * 16A 250V AC(cosφ=0.4) -40°C / +60°C * 10A 30V DC(0ms) -40°C / +60°C * | |||
| Remarks | - | |||
| Last update | ||||
| Mark on products* | ||||
* The "Mark on products" field shows the standards' certificate type marked to products. Note that not all certified products have a certificate mark affixed to them.
