AEP19012｜EP Relays

Download

Discontinued

Last time buy (JST)

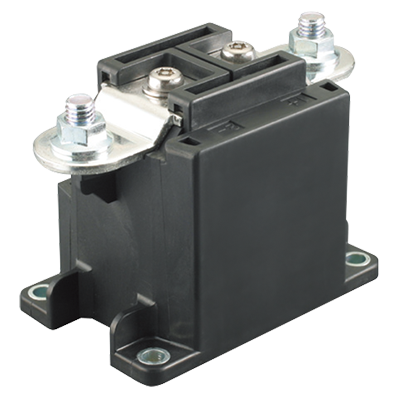

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

Product Number

AEP19012

Part Number

AEP19012

Product Name

 EP Relays

Features

High capacity of Max. 1,000 V DC Cut-off possible
Substitute
Sub Prod No.
Sub Part No.
Remark

Spec Detail

ItemSpecifications
Part NumberAEP19012
Product NumberAEP19012
Protective constructionSealed capsule
Operating functionSingle Side Stable Type
Terminal shapeConnector type
AccessoriesOne female connector lead wire
Rated coil voltage12V DC
Operate voltageMax. 75% V of rated coil voltage (initial) (at 20℃)
Release voltageMin. 16.7% V of rated coil voltage (initial) (at 20℃)
Rated operating powerWhen input: 40W max.
(0.1 sec. from time of input)
When retained: 4W max.
Contact arrangement1 Form A
Contact materialCopper alloy
Contact rating (resistive)300A 400V DC
Max. switching voltage1,000V DC
Max. switching current300A
Min. switching load (reference value)1A 24V DC
Dielectric strength (initial)
Between open contacts		2500Vrms
Dielectric strength (initial)
Between contact and coil		2500Vrms
Expected life; Mechanical lifeMin. 200x103 ope.
Expected life; Electrical life300 A 400 V DC Min. 103ope. (switching frequency: 6 times/min) (Resistive load)
Conditions for usage, transport and storageAmbient temperature: -40° to +80°C (storage: Max. +85°C)
Humidity: 5 to 85% RH (Avoid icing and condensation)

Information on Compliance with Standards

StatusStatusInformation on Compliance
UL/C-ULApprovalFile No.E43149
Rating300A 277V AC Resistive
Remarks-
Last update
CSAN/AFile No.-
Rating-
Remarks-
Last update
Mark on products*This product does not have markings.

* The "Mark on products" field shows the standards' certificate type marked to products. Note that not all certified products have a certificate mark affixed to them.
