ARS1203｜RS Relays

Download

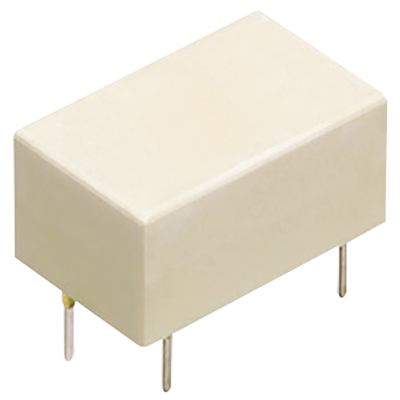

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

Product Number

ARS1203

Part Number

ARS1203

Product Name

 RS Relays

Features

3 GHz capable, 10 W carrying power (at 3 GHz), 50/75 Ω, 1 Form C Relays

Contact Us

*Specifications and design of the products are subject to change without notice for the product improvement.

Spec Detail

Specifications and design of the products are subject to change without notice for the product improvement.
ItemSpecifications
Part NumberARS1203
Product NumberARS1203
Protective constructionSealed Type
Operating function2 Coil Latching Type
Terminal shapeStandard PC board terminal
Packing styleCarton
Frequency3GHz
V.S.W.RMax. 1.15 (to 900MHz), Max. 1.4 (to 3GHz)
Insertion lossMax. 0.1dB (to 900MHz), Max. 0.3dB (to 3GHz)
IsolationMin. 60dB (to 900MHz), Min. 30dB (to 3GHz)
Impedance75Ω
Rated coil voltage3V DC
Set voltage (at 20 ℃)Max. 75 % V of rated coil voltage (Initial)
Reset voltage (at 20 ℃)Max. 75 % V of rated coil voltage (Initial)
Rated operating power400mW
Contact arrangement1 Form C
Contact materialAu plating
Contact rating1W (3GHz, 75Ω, V.S.W.R. Max. 1.4), 10mA 24V DC (resistive load)
Contact input power (CW)Max. 10W (3GHz, 75Ω, V.S.W.R. Max. 1.4)
Dielectric strength Between open contacts (initial)500 V rms for 1 min (detection current: 10 mA)
Dielectric strength Between contact and coil (initial)1,000 V rms for 1 min (detection current: 10 mA)
Expected mechanical life (cold switch)Min. 106 ope. (switching frequency: at 180 times/min)
ConditionsAmbient temperature: －40 to ＋70 ℃ (Allowable temperature is from －40 to ＋70 ℃ at our standard packing condition)
Humidity: 5 to 85% RH (Avoid icing and condensation)
Expected electrical life (hot switch)Conditions: Switching frequency at 20 times/min
Resistive load Min. 300×103ope. 10mA 24V DC
High frequency load 1W (3GHz, 75Ω, V.S.W.R. Max.1.4)
