Contact reliability
Automotive Connectors Board to FPC CF1Reduction of operational workload : No relay wires
Suitable for automotive applications that
require vibration and heat resistance (125℃) characteristics
FPCs and boards can be directly connected without relay wiring harnesses
Contact reliability is preserved by double-sided contact structure
Lights, BMSs, heaters, sliding doors, power trains, head-up displays, etc.
Multiple pins
Automotive Connectors Board to FPC CF2Available for multiple pins
Suitable for automotive applications that
require vibration and heat resistance (125℃) characteristics
FPCs and boards can be directly connected without relay wiring harnesses
Contact reliability is preserved by double-sided contact structure
Lights, BMSs, heaters, sliding doors, power trains, head-up displays, etc.
3.4 mm low profile
Automotive Connectors Board to wire CW1Low profile contributes to the design of thinner devices and modules
3.4 mm low profile design
Suitable for automotive applications that
require vibration and heat resistance (125℃) characteristics
“Anti-misoperation bridge structure” prevents
unintended operation of mating lock
Lights, BMSs, heaters, sliding doors, power trains, head-up displays, etc.
Small size
Automotive Relays CN-H RELAYSSpace saving suitable for smart J/B
Small yet maximum carrying current 20A possible (640mW type @ 16V)
Terminal layout make PC board pattern design easy
Small size
Automotive Relays TG RELAYSLarge switching capacity and small size and possible to replace micro ISO terminal type relays.
Small size yet maximum carrying current 35A possible (@12V DC, 20℃）
Low operating power type
Small size
Automotive Relays TL RELAYSHigh capacity (40A rating) yet small size contributes to
module miniaturization
Small high capacity (40A) relay possible to replace micro ISO.
Support 40A fuse
Pin in Paste type available
Small size
Automotive Relays TT RELAYSHigh capacity (60 A) PC board Relay for Smart J/B
Compact and high capacity (60 A and supports fuse)
Contact arrangement:
Double make contact 2 Form A (1 Form U)
Pin in Paste compliant type is available.
High-capacity
Automotive Relays EV RELAYSHigh capacity relay creating safe, light weight and small sized module.
Compact, lightweight, and safety
High contact reliability
Compact high short-circuit capacity type and Quiet types available
High voltage DC, High capacity Cut-off Relays using
Capsule Contact Mechanism

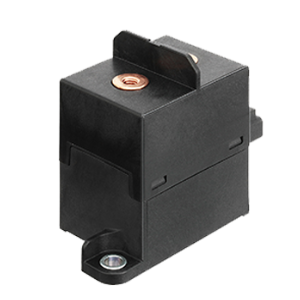

High-capacity
Automotive Relays EV-B RELAYSHigh cut-off capacity 2,000 A at 500 V DC
Same shape and size as EV-A relay ( 250 A )
High cut-off capacity 2,000 A at 500 V DC without contact polarity
Horizontal confi guration is also available
High voltage DC, High capacity Cut-off Relays using
Capsule Contact Mechanism
DIP 2a
PhotoMOS GU 2a DIP-8pin (SMD) Small leakage current suppresses battery consumption
Optimal for 300-V class batteries
Compact and high withstand voltage (600 V)
Small leakage current
Capable of high-speed switching operations
2-channel structure
BMS leakage monitoring (insulation degradation detection), etc.
DIP 1a
PhotoMOS GU 1a DIP-6pin (SMD) Ensuring safety margins even for high voltage batteries
Optimal for 450-V class batteries
Compact and high withstand voltage (900 V)
Small leakage current
Capable of high-speed switching operations
BMS leakage monitoring (insulation degradation detection), etc.
DIP 1a
PhotoMOS HE 1a DIP-6pin (SMD)Ensuring safety margins even for high voltage batteries
Optimal for 750-V class batteries
Compact and high withstand voltage (1,500 V)
Small leakage current
Capable of high-speed switching operations
BMS leakage monitoring (insulation degradation detection), etc.
Contact reliability and small size
Seal Type Switches Turquoise Stroke Mini Switches
A small and light body contributes to saving space and reducing weight.
Small, long travel (only 1a or 1b contact)
Double-sided clip - the sliding contact achieves high contact reliability.
Protection structure: IP67
Shifter P detection, hood, flash handle, doors, charger inlet, trunk, seat position, etc.
Improve the safety
Seal Type Switches Turquoise Stroke mini Switch, Resistor installed type
Wiring failure detection contributes to safety and reliability.
Built-in resistance can detect wiring failures (disconnection/short-circuiting).
The very quiet operation and waterproof performance make the switches applicable to various uses.
The sliding contact structure achieves long travel and high contact reliability.
Shifter P detection, hood, flash handle, doors, charger inlet, trunk, seat position, etc.
Improve the safety
Seal Type Switches Two circuits detection Switches
Two switching cercuits inside and each switching cercuit can work independently.
For passenger's safety by detecting the door open during autonomous driving
For theft prevention by detecting the hood open and wire cutting
For high-voltage electric shock prevention by detecting the connection of charging port and gun
For high-voltage electric shock prevention by detecting the lid open of a high-voltage device
For functional safety by these redundancy and failure detection
Space saving, labor saving, and cost saving by reducing the number of switches and wire
■ 2step detection type
For pinching prevantion by detecting door ajar when the door closing assist starts
Space saving, labor saving, and cost saving by reducing the number of switches and wire
For door, hood, charging port, charging gun, and high-voltage electric devices, etc
