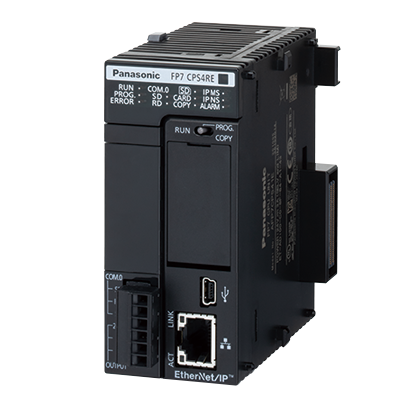

AFP7CPS4RES｜FP7

下載

※ 實際商品可能與照片不同。

適合不含有規定:EU RoHS指令 2011/65/EU的6物質、以及EU RoHS指令2015/863/EU的4物質

品名

AFP7CPS4RES

型號

AFP7CPS4RES

產品

FP7 CPU units

詳細

Security enhanced type

商品名稱

 FP7

聯繫我們

※為了商品改進，規格和外觀可能會在不事先通知的情況下變更，敬請諒解。

詳細規格

為了商品改進，規格和外觀可能會在不事先通知的情況下變更，敬請諒解。
項目內容
品名AFP7CPS4RES
型號AFP7CPS4RES
產品名FP7 CPU units

Control specifications

項目內容
Memory capacity:Memory selection pattern1Program (steps): 234,000
Data register (Note) : 65,536
Number of max. program block (PB): 468
(Note) For data register (DT), data up to 262,144 words can be backed up.
Memory capacity:Memory selection pattern2Program (steps): 221,500
Data register (Note) : 131,072
Number of max. program block (PB): 443
(Note) For data register (DT), data up to 262,144 words can be backed up.
Memory capacity:Memory selection pattern3Program (steps): 196,000
Data register (Note 1): 262,144
Number of max. program block (PB): 392
(Note) The factory default setting is pattern 3.
(Note 1) For data register (DT), data up to 262,144 words can be backed up.
Memory capacity:Memory selection pattern4Program (steps): 144,500
Data register (Note) : 524,288
Number of max. program block (PB): 289
(Note) For data register (DT), data up to 262,144 words can be backed up.
Memory capacity:Memory selection pattern5Program (steps): 51,500
Data register (Note) : 999,424
Number of max. program block (PB): 103
(Note) For data register (DT), data up to 262,144 words can be backed up.
Programming methodRelay symbol method
Control methodCyclic operation method
Program memoryBuilt-in flash ROM (no backup battery required)
Operation speedBasic instruction: min. 11 ns / step
External input (X)8,192 points
(Note) Hardware configuration governs the actually usable number of I / O points. When I / O points are not actually used, usable as internal relays.
External output (Y)8,192 points
(Note) Hardware configuration governs the actually usable number of I / O points. When I / O points are not actually used, usable as internal relays.
Internal relay (R)32,768 points
System relay (SR)Indicate operation status of various relays is shown.
Link relay (L)16,384 points
Timer (T)4,096 points: Timer capable of counting (units: 10 micro s, 1 ms, 10 ms, 100 ms or 1 sec.) x 4,294,967,295
Counter (C)1,024 points, Counter capable of counting 1 to 4,294,967,295
Link data register (LD)16,384 words
System data register (SD)Internal operation status of various registers is shown.
Index register (I0 to IE)15 long words / With switching function
Master control relay (MCR)Unlimited
Number of labels (LOOP)Max. 65,535 points for each program block (PB)
Differential pointsUnlimited
Number of step laddersUnlimited
Number of subroutinesMax. 65,535 points for each program block (PB)
Number of interrupt program1 periodical interrupt program
SD memory card functionSDHC memory cards of up to 32 GB are usable.
Constant scanAvailable (0 to 125 ms)
Clock / calendarYear (last two digits), month, day, hours (24-hour display) minutes, seconds, day of week
(Note)Precision of calendar; At 0 ℃ +32 ℉, 95 sec. or less error per month, at +25 ℃ +77 ℉, 15 sec. or less error per month, at +55 ℃ +131 ℉, 130 sec. or less error per month
Battery life (Value applies when no power is supplied at all.)3.3 years or more (when no power is supplied) actual usage value: 20 years approx. (at 25 degrees 77 degrees Fahrenheit )
Safety functionPassword / Restricted distribution / Read disable setting / Encryption
PLC link function
(Serial communication / MEWNET-W0)		Max. 16 units, link relays: 1,024 points, link registers: 128 words. (Data transfer and remote programming are not supported) (Link area allocation is switchable between the first and the second half)

Communication specifications for COM port

項目內容
InterfaceRS-232C, three-wire system, 1 channel
(Note) SD, RD and SG terminals are isolated from internal circuits.
Transmission distance15 m 49.213 ft
Transmission speed300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400 bits / sec,
Communication methodHalf-duplex system
Synchronous methodStart-stop synchronization system
Transmission formatStop bit: 1 bit / 2 bits
Parity: none / odd / even
Data length: 7 bits / 8 bits
Start code: with STX / without STX
End code: CR / CR + LF / none / ETX
Data transmission orderTransmit from bit 0 in character units.
ConnectionGeneral-purpose communication, Computer link and MODBUS-RTU

Dedicated power supply output port specifications for GT series programmable display

項目內容
Terminal:5VFor 5 V DC type GT series Programmable Display
(Note) 5 V and 24 V DC types are not usable at the same time.
Terminal:24VFor 24 V DC type GT series Programmable Display
(Note 1) 5 V and 24 V DC types are not usable at the same time.
(Note 2) Use 21.6 to 26.4 V DC to power the CPU unit. Please check the “GT Series Hardware Manual” for grounding of the GT series programmable display.

LAN communication port specifications

項目內容
Communication interfaceEthernet 100BASE-TX / 10BASE-TX
Communication speed100 Mbps, 10 Mbps auto negotiation function
Total cable length100 m 328 ft (500 m 1,640 ft when a repeater is used)
Number of nodesMax. 254 units
Number of simultaneous connectionsMax. 220 connections (user connection: 216, system connection: 4)
Communication protocol (Communication layer)TCP / IP, UDP
DNSSupports name servers
DHCP / DHCPV6Automatic IP address acquisition
FTP server / Client (SSL compatible)Server function, file transfer, number of user: 3
Client function, data and file transfer
HTTP server / Client (SSL compatible)Server function, system web, Customer web (8 MB), number of concurrent session: 16
Client function, data transfer
SMTP client (SSL compatible) Client function, mail transfer
SNTPTime adjustment function
General-purpose communication16 kB / 1 connection (user connection: 1 to 16)
Dedicated communicationSlave communication (MEWTOCOL-COM, MEWTOCOL7-COM, MEWTOCOL-DAT, MODBUS-TCP, MC protocol (Note))
Master communication (MEWTOCOL-COM, MEWTOCOL-DAT, MODBUS-TCP, MC protocol (Note))
(Note): MC protocol is a short form denoting MELSEC communication protocol; MELSEC is a registered trademark of Mitsubishi Electric Corporation. QnA compatible 3E frame, only binary (bulk writing and bulk reading) use is available.

Common general specifications

項目內容
Ambient temperature0 to +55 ℃ +32 to +131 ℉, Storage: -40 to +70 ℃ -40 to +158 ℉
Ambient humidity10 to 95 % RH (at +25 ℃ +77 ℉, no condensation), Storage: 10 to 95 % RH (at +25 ℃ +77 ℉, no condensation)
Vibration resistance5 to 8.4 Hz, single amplitude of 3.5 mm 0.138 in, 1 sweep/min. (IEC 61131-2) ; 8.4 to 150 Hz, constant acceleration of 9.8 m/s2, 1 sweep/min. (IEC 61131-2), 10 times each in X, Y, and Z directions
Shock resistance147 m/s2 or more , 3 times each in X, Y, and Z directions (IEC61131-2)
Noise immunity1,000 V [p-p] with pulse width 50 ns and 1 micro s (using a noise simulator)
Operating conditionFree from corrosive gasses and excessive dust

Individual general specifications

項目內容
Rated voltage range20.4 to 28.8 V DC
Current consumption200 mA or less
Net weight220 g approx. (with terminal block and end unit)
