DV0PM20043｜Noise Filter
Download
*Photo may vary from actual product.
This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.
| Part Number | DV0PM20043 |
|---|---|
| Product | Noise Filter |
| Product Name | Noise Filter |
Contact Us
*Specifications and design of the products are subject to change without notice for the product improvement.
Spec Detail
Specifications and design of the products are subject to change without notice for the product improvement.
| Item | Specifications |
|---|---|
| Part Number | DV0PM20043 |
| [Remarks] | Select a noise filter of capacity that exceeds the capacity of the power source (also check for load condition). |
| Specification | 3-phase 200 V (Driver voltage spec) |
| Remarks | E-frame |
| Applicable Family / Series | AC Servo Motors MINAS A6 Family MINAS A5 Family |

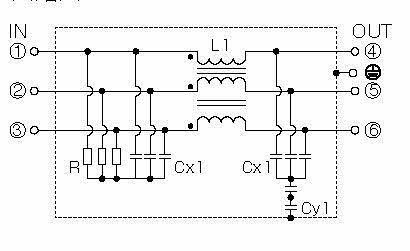

Circuit diagram
Specifications and design of the products are subject to change without notice for the product improvement.

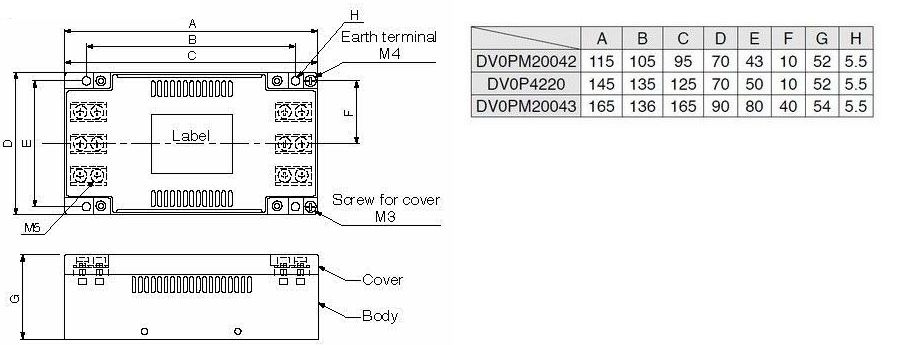

Dimensions
Specifications and design of the products are subject to change without notice for the product improvement.
[Unit: mm]
[Unit: mm]
