DV0PM20094｜Safety bypass plug
Download
Currently, there are no downloadable files related to this product.

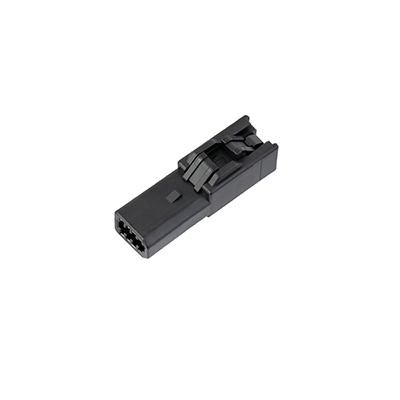

*Photo may vary from actual product.
This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.
| Part Number | DV0PM20094 |
|---|---|
| Product | Safety bypass plug |
| Details | Excluding A6SE, A6SG, A5ⅡE, A5E series |
| Product Name | Safety bypass plug |
Contact Us
*Specifications and design of the products are subject to change without notice for the product improvement.
Spec Detail
Specifications and design of the products are subject to change without notice for the product improvement.
| Item | Specifications |
|---|---|
| Part Number | DV0PM20094 |
| Product details | Excluding A6SE, A6SG, A5ⅡE, A5E series |
| Specification | For Connector X3 |
| Applicable Family / Series | AC Servo Motors MINAS A6 Family MINAS A5 Family |

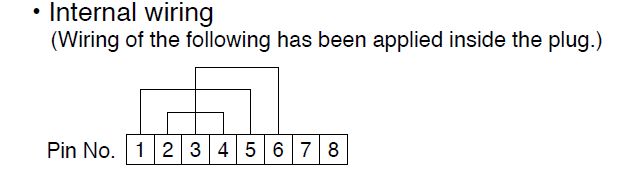

Pin disposition
Specifications and design of the products are subject to change without notice for the product improvement.

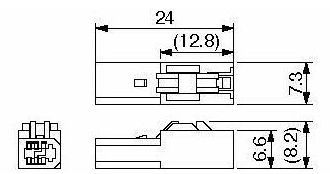

Dimensions
Specifications and design of the products are subject to change without notice for the product improvement.
[Unit: mm]
[Unit: mm]
