DV0P4430｜Battery Box for Absolute Encoder
Download
Currently, there are no downloadable files related to this product.

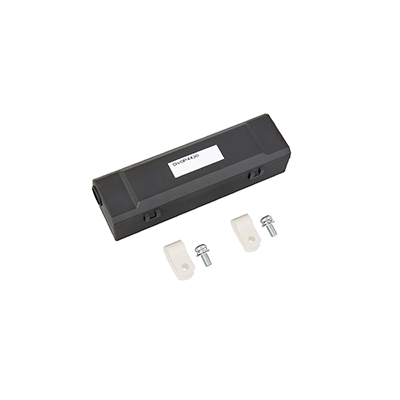

*Photo may vary from actual product.
This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.
| Part Number | DV0P4430 |
|---|---|
| Product | Battery Box for Absolute Encoder |
| Product Name | Battery Box for Absolute Encoder |
Contact Us
*Specifications and design of the products are subject to change without notice for the product improvement.
Spec Detail
Specifications and design of the products are subject to change without notice for the product improvement.
| Item | Specifications |
|---|---|
| Part Number | DV0P4430 |
| [When making a cable for absolute encoder by yourself] | When you make your own cable for 23-bit/ 17-bit absolute encoder, connect the optional battery for absolute encoder, (DV0P2990) as per the wiring diagram below. Connector of the battery for absolute encoder shall be provided by customer as well. |
| Specification | Absolute Encoder cable kit for self producing |
| Remarks | When you make your own cable for 23-bit/ 17-bit absolute encoder, connect the optional battery for absolute encoder, (DV0P2990) as per the wiring diagram below. Connector of the battery for absolute encoder shall be provided by customer as well. |
| Applicable Family / Series | AC Servo Motors MINAS A7 Series MINAS A6 Series MINAS A5 Series MINAS A4 Family |

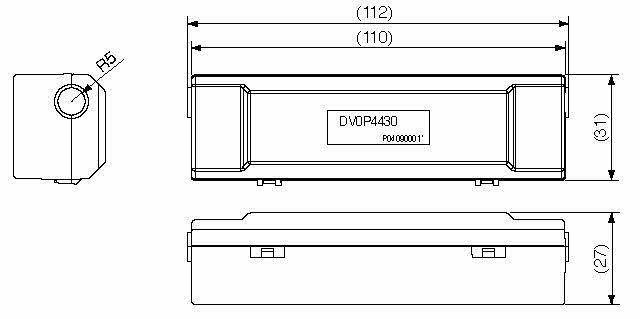

Dimensions
Specifications and design of the products are subject to change without notice for the product improvement.
[Unit: mm]
[Unit: mm]
