MFDDTB3A2P｜MINAS A4 Family Servo Driver(Discontinued)
Download
Discontinued
Last time buy (JST)
*Photo may vary from actual product.
This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.
| Part Number | MFDDTB3A2P |
|---|---|
| Product | Servo Driver |
| Details | A4P Series |
| Product Name | MINAS A4 Family Servo Driver(Discontinued) |
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MFDDTB3A2P |
| Product details | A4P Series Built-in NC function I/O command type servo I/O conbination positioning command Full-closed control serial communication |
| Family Name | MINAS A4 |
| Series | A4P series |
| Frame | F-Frame |
| Frequency response (kHz) | 1.0 |
| Control method | Position, Full-closed control |
| Safety Function | without the safety function |
| I/F Classification of type | I/O input |
| Dimensions (W) (Unit: mm) | 130 |
| Dimensions (H) (Unit: mm) | 220 |
| Dimensions (D) (Unit: mm) | 200 |
| Mass (kg) | 6.0 |
| Environment | For more details, please refer to the instruction manual. |
Basic Specifications
| Item | Specifications |
|---|---|
| Input power: Main circuit | 3-phase 200 V (+10% -15%) to 230 V (+10% -15%) 50/60 Hz |
| Input power: Control circuit | Single phase 200 V (+10% -15%) to 230 V (+10% -15%) 50/60 Hz |
| Encoder feedback | 17 bit (131072 resolution) absolute/incremental encoder 2500 P/r (10000 resolution) incremental encoder |
| About Encoder feedback | * When using it as an incremental system (not using multiturn data), do not connect the battery for absolute encoder. Parameter Pr. 0B must be set to "1" (factory settings). |
| External scale feedback | Serial communication |
| Parallel I/O connector: Control signal Input | 14 inputs CW over-travel inhibit, CCW over-travel inhibit, Home sensor, Emergency stop, Point specifying x6 Servo-ON, Strobe, Multi- function input x2 |
| Parallel I/O connector: Control signal Output | 10 outputs Servo alarm, Brake release signal, Present position output x6, Positioning completion / Output during deceleration, Motor operation condition |
| Parallel I/O connector: Pulse signal Output | 4 outputs Encoder pulse (A, B and Z-phase) or feedback scale signal (A and B-phase)is output by the line driver.For encoder Z-phase signal, an open collector output is also available. |
| Regeneration | Built-in regenerative resistor (external resistor is also enabled.) |
| Control mode | Select Position control or Full-closed control by parameter. |

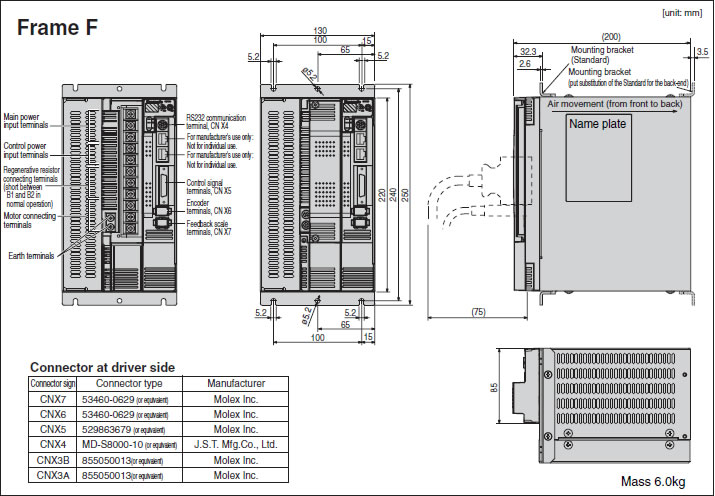

Dimensions
[Unit: mm]
