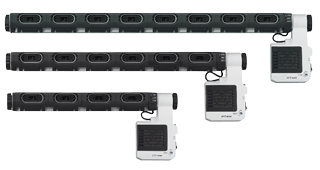

Wide-area Ionizer ER-TF (Discontinued Products)

Download

Discontinued Products
Specifications
Dimensions
Circuit/ Wiring

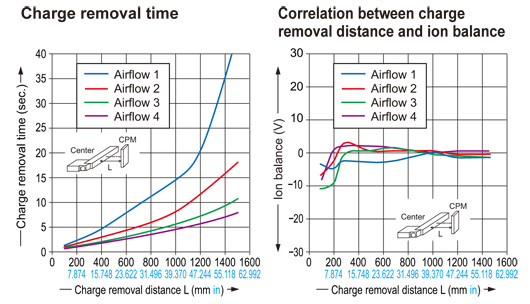

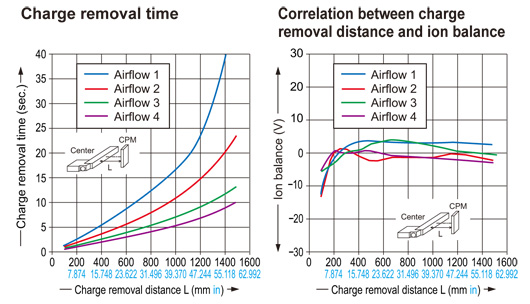

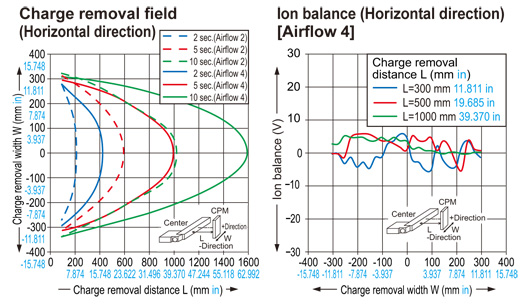

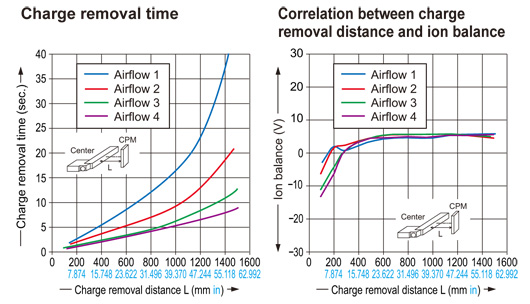

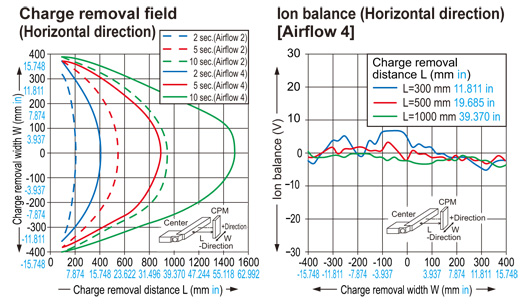

Charge removal characteristics
Cautions For Use

Ⅾiscontinued

Last time buy (JST)

September 30, 2018

We are sorry, the products have been discontinued.
Please refer to the details of the discontinued products and the recommended substitutes list below.

------------------------------ Tab1 showing ------------------------------

Discontinued Products

[Note]The following applicable products and options are available continuously.

Designation	Model No.	Description
Air filter	ER-TFFx10	Air filter for fan air intake part (10 pcs. per set)
Discharge needle unit	ER-TFANT	Unit with tungsten needles (1 pc.)

------------------------------ Tab2 showing ------------------------------

Specifications

Type			Wide-area fan type
Model No.			ER-TF04-EX	ER-TF06-EX	ER-TF08-EX
CE marking directive compliance			EMC Directive, RoHS Directive
Charge removal time (±1,000 V → ±100 V)			1 sec. approx. (Note 2)
Ion balance			±10 V or less (Note 3)
Ozone generation			0.02 ppm or less (Note 3)
Power supply voltage			Accessory AC adapter input: 100-240 V AC ± 10 % 50/60 Hz(Note 4) (Output: 24 V DC)
Power consumption			80 VA or less (at 100 V: 70 VA or less)
Discharge method			Steady-state DC
Discharge output voltage			±6,000 V approx.
Error output			NPN open-collector transistor • Maximum sink current: 50 mA • Applied voltage: 30 V DC or less (between output and 0 V) • Residual voltage: 1 V or less (at 50 mA sink current)
Error output：Output operation			OFF if abnormal discharge, object inserted into discharge window or fan problem detected; normally ON
Error output：Short-circuit protection			Incorporated
Indicators	Bar	POWER	Green LED (Lights up when the power is ON)
		ERROR	Red LED (Lights up when discharge part error or fan error is detected)
		CHECK	Orange LED (Lights up when discharge part check or fan check is detected)
	Fan	Discharge part status	Yellow LED (Lights up when discharge part error or discharge part check is detected)
		Fan status	RYellow LED (Lights up when fan error or fan check is detected)
Ambient temperature			0 to + 50 ℃ + 32 to + 122 ℉ (No dew condensation), AC adapter: 0 to + 40 ℃ + 32 to + 104 ℉
Ambient humidity			35 to 65 % RH (No dew condensation allowed)
Material			Bar unit enclosure: ABS, Fan unit enclosure: ABS, Discharge needles: Tungsten, Mounting bracket: Cold rolled carbon steel (SPCC)
Net weight			1.0 kg approx.	1.2 kg approx.	1.4 kg approx.
Accessories			AC adapter (Note 3), F.G. connection cable: 1 pc., Spare replacement filters: 5 pcs., Three-pronged outlet with ground pin: 1 pc., Blindfold seals: 2 sheets

Notes:
1) Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 °C +68 °F.
2) Typical value at 200 mm 7.874 in from directly in front of air outlet at the unit center at maximum fan speed.
3) Typical value at 300 mm 11.811 in from directly in front of air outlet at the unit center at maximum fan speed.
4)Please prepare an AC cable separately as it is needed. The following cables are available as optionals: CN-ACCN-C2: AC cable (conforming to CCC), CN-ACKR-C2: AC cable (conforming to KTL)

------------------------------ Tab3 showing ------------------------------

------------------------------ Tab4 showing ------------------------------

I/O Circuit and Wiring diagrams

I/O circuit diagram

Note:Please prepare an AC cable separately as it is needed.The following cables are available as optionals:CN-ACCN-C2: AC cable (conforming to CCC)CN-ACKR-C2: AC cable (conforming to KTL)

Symbols・・・

D : Reverse supply polarity protection diode
Z_D : Surge voltage absorption zener diode
Tr : NPN output transistor

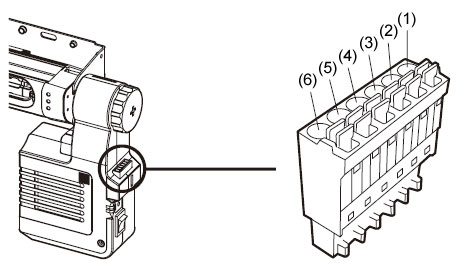

Terminal position

Terminal No.
(1)	N.C. (no connection)
(2)	Error output
(3)	COM(-)
(4)	0V
(5)	+V
(6)	F.G.

Terminal name

------------------------------ Tab5 showing ------------------------------

------------------------------ Tab6 showing ------------------------------

This product is to remove static electricity for industrial use. Never use this product for medical equipment etc. relating to maintenance / supervision of human life or body, for prevention of accidents which damage a human life or properties, or for safety maintenance.
Do not use this product near or around surroundings containing any dangerous materials, such as combustible material and flammable material.
This product emits ozone. In order for this product to be used in an airtight room, be sure to keep the room ventilated.
Do not place any objects that may obstruct the inflow of air within 10 mm 0.394 in of the front of the fan air intake part. Doing so may cause accident or product malfunction.
Be sure to ground the main body of this product via ground terminal to ensure electrical shock prevention and reliable charge removal.
Since the charge needle is applied with high voltage, never touch the discharge needle, or an electric shock may result.
Since the tip of the discharge needle is sharp, take sufficient care in handling the discharge needle, or injuries may result.

Mounting

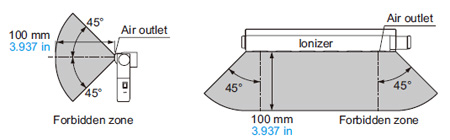

Do not place any objects or any other charge removal equipment within 100 mm 3.937 in of the ionized air outlet front (refer to the illustration below), as they may affect operation and performance of the ionizer.

Maintenance

Always be sure to turn off the power before carrying out any care and maintenance of the product.
The tip of the discharge needle is sharp, so be careful not to touch it while cleaning.
When the product is used for long periods of time, dust and other foreign particles may accumulate on the discharge needle, the area around it, and on the fan filter. Clean regularly (discharge needle: about once a week, air filter: about once every two months), otherwise their charge removal performance will drop and operating problems or accidents may occur.
The discharge needle is a consumable part. If the charge removal performance is not restored after cleaning the discharge needle, the discharge needle unit should be replaced. All of the discharge needle units should be replaced at the same time.

Wide-area Ionizer ER-TF (Discontinued Products)

Discontinued Products

Specifications

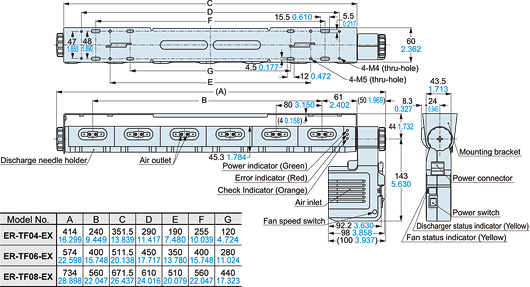

Dimensions

ER-TF04-EX ER-TF06-EX ER-TF08-EX
