Power Supply Unit PS-18V-U (Discontinued Products)

Download

  • Discontinued Products

  • Specifications

  • Dimensions

  • Cautions For Use

Ⅾiscontinued

Last time buy (JST)

March 29, 2024

We are sorry, the products have been discontinued. Please refer to the details of the discontinued products and the recommended substitutes list below.

------------------------------ Tab1 showing ------------------------------

Discontinued Products

------------------------------ Tab2 showing ------------------------------

Specifications

Model No.PS-18V-U
Supply voltage18 V (2 pcs. 006P dry cells, replaceable)/td>
Connectable sensorsPhotoelectric sensor, inductive proximity sensor, etc., with NPN transistor output and PNP transistor output, DC 2-wire type output or relay output
Power indicatorRed LED (lights up when the power is ON)
Operation indicatorRed LED (lights up when the sensor input is ON)
Operation buzzerIncorporated, switchable either effective or ineffective
Ambient temperature0 to +40 ℃ +32 to +104 ℉, Storage: 0 to +40 ℃ +32 to +104 ℉
Ambient humidity35 to 85 % RH, Storage: 35 to 85 % RH
Connecting methodTerminal block
MaterialABS
Net weightNet weight: 100 g approx.(without batteries)

Note:Note that 006P dry cell batteries are not provided with the product. Please purchase them separately.

------------------------------ Tab3 showing ------------------------------

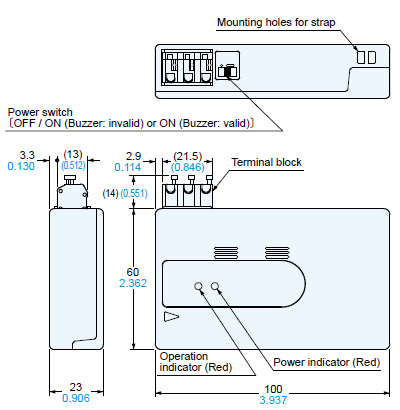

Dimensions

  • Unit: mm in

(Unit: mm in)

TERMINAL ARRANGEMENT

TERMINAL ARRANGEMENT

------------------------------ Tab4 showing ------------------------------

Cautions For Use

  • Never use this product in a device for personnel protection.
  • In case of using devices for personnel protection, use products which meet laws and standards, such as OSHA, ANSI or IEC etc., for personnel protection applicable in each region or country.
