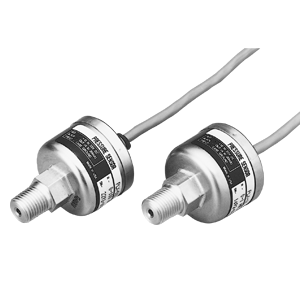

Specifications
| Type | 100 kPa | 1 MPa | 2 MPa | 10 MPa | 50 MPa |
|---|---|---|---|---|---|
| Model No. | PLX-D1L | PLX-1L | PLX-2L | PLX-10L | PLX-50L |
| Type of pressure | Gauge pressure | ||||
| Rated / set pressure range | 0 to 100 kPa | 0 to 1 MPa | 0 to 2 MPa | 0 to 10 MPa | 0 to 50 MPa |
| Pressure withstandability | 200 kPa | 2 MPa | 4 MPa | 15 MPa | 75 MPa |
| Applicable fluid | Gas or liquid which does not corrode stainless steel (SUS302 and SUS304) | ||||
| Supply voltage | 12 to 35 V DC (including ripple) | ||||
| Current consumption | 4 to 20 mA (analog output current) | ||||
| Output | DC 2-wire analog current output ・Output current: 4 to 20 mA (at rated pressure range) ・Zero-point: within 4 mA ± 0.4 mA (at ambient temperature of +25 ℃ +77 ℉) ・Span: within 16 mA ± 0.32 mA (at ambient temperature of +25 ℃ +77 ℉) ・Precision: within ±1 % F.S. (including linearity and hysteresis) ・Load resistance: refer to Note 2 | ||||
| Response frequency | 1 kHz or more | ||||
| Protection | IP40 (IEC) | IP66 (IEC) | |||
| Ambient temperature | -15 to +100 ℃ +5 to +212 ℉, Storage: -15 to +100 ℃ +5 to +212 ℉ | ||||
| Temperature characteristics | Zero point: within ±1 % F.S. (0 to +50 ℃ +32 to +122 ℉), within ±3 % F.S. (-15 to +70 ℃ +5 to +158 ℉), within ±5 % F.S. (-15 to +100 ℃ +5 to +212 ℉) Span: within ±1 % F.S. (0 to +50 ℃ +32 to +122 ℉), within ±3 % F.S. (-15 to +70 ℃ +5 to +158 ℉), within ±5 % F.S. (-15 to +100 ℃ +5 to +212 ℉) | ||||
| Pressure port | R (PT) 1/4 male thread | ||||
| Material | Enclosure: Stainless steel (SUS310) [PLX-10L and PLX-50L: Stainless steel (SUS304)], Pressure port: Stainless steel (SUS302), Diaphram: Stainless steel (SUS304) | ||||
| Weight | Net weight: 200 g approx. | ||||
| Dimensions | ø40 x 53.6 mm ø1.575 x 2.110 in | ||||
| Accessory | Pressure port protection cap: 1 No. | ||||
(Note 1):
Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃ +68 ℉ .
(Note 2):
Set the load resistance and supply voltage so that the voltage produced between the +V and output terminals is maintained within 12 to 35 V.

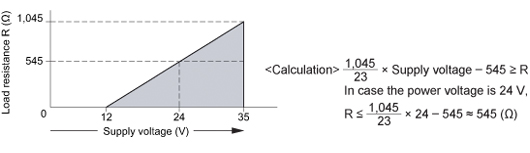

For this, set the load resistance within the range shown in the graph below.
If the load resistance is set outside the indicated range, the voltage produced between the +V and output terminals will not meet the required rating due to voltage drop, and proper operation will not be obtainable.

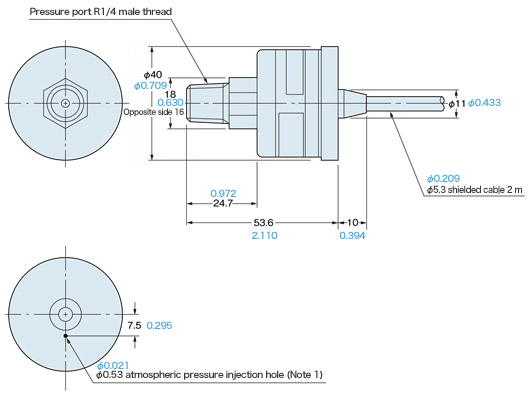

Dimensions
- Unit: mm in
PLX-□
Sensor
Note:1) Only PLX-D1L has an atmospheric pressure injection hole
