Digital Pressure Controller PAD (Discontinued Products)

  • Discontinued Products

  • Specifications

  • Dimensions

Ⅾiscontinued

Last time buy (JST)

March 31, 2011

We are sorry, the products have been discontinued. Please refer to the details of the discontinued products and the recommended substitutes list below.

------------------------------ Tab1 showing ------------------------------

Discontinued Products

pic01-1

------------------------------ Tab2 showing ------------------------------

Specifications

Model No.PAD-D1PAD-1PAD-2PAD-10PAD-50
Applicable pressure sensorPLX-D1LPLX-1LPLX-2LPLX-10LPLX-50L
Supply voltage12 to 24 V DC ± 10 % Ripple P-P 10 % or less
Current consumption260 mA or less
Power supply for sensor12 V DC +10 / 0 %, 70 mA or less
InputsSensor inputRange of input current: 4 to 20 mA (Maximum aliowable current: 50 mA)
Input impedance: 20 Ω approx.
Sampling cycle: 50 ms (20 times/sec.)
Auto-reference inputActivating auto-reference function
・Operation: NPN non-contact input, edge trigger at signal falling
・Signal condition
Low level: 1.5 V or less
Low level output current: 0.6 mA or less
Low level input time: 0.5 ms or more
OutputsComparative outputs
(HI, GO, LO)
NPN open-collector transistor
・Maximum sink current: 100 mA
・Applied voltage: 30 V DC or less (between comparative output and 0 V)
・Residual voltage: 1 V or less (at 100 mA sink current)
0.4 V or less (at 16 mA sink current)

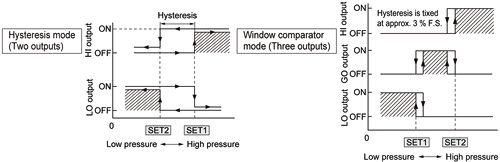

 Output
operation

Response time100 ms or less (150 ms or less during auto-reference active)
DisplayMeasurement value display3 1/2 digit LCD display [Sampling cycle: 250 ms (4 times/sec.)]
 Display range+0.0 to +100.0 kPa+0.000 to +1.000 MPa+0.000 to +1.999 MPa+0.00 to +10.00 MPa+0.0 to +50.0 MPa
Setting value display3 1/2 digit LCD display
 Setting range-199.9 to +199.9 kPa-1.999 to +1.999 MPa-1.999 to +1.999 MPa-19.99 to +19.99 MPa-199.9 to +199.9 MPa
Comparative output display"HI", "GO" or "LO" LCD display
(HI, GO or LO lights up when the corresponding output is activated)
Indication accuracy± (measurement value x 0.15 % + 1 digit) or less at 23 ± 1 ℃ 73.4 ± 33.8 ℉
Ambient temperature0 to +50 ℃ +32 to +122 ℉ (No dew condensation), Storage: -10 to +60 ℃ +14 to +140 ℉
Connection methodTerminal block
Weight230 g approx.
DimensionsW72 x H72 x D88.2 mm W2.835 x H2.835 x D3.472 in

(Note) :

Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃ +68 ℉ .

------------------------------ Tab3 showing ------------------------------

Dimensions

  • Unit: mm in

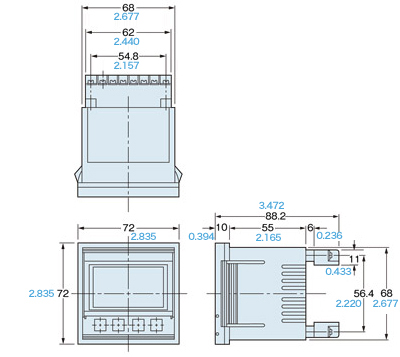

PAD-□

PAD-□

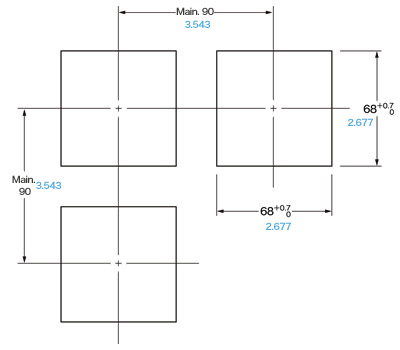

Panel cut-out dimensions

Note:Please consider the thickness of the panel be 1 to 4 mm.
