Discontinued Products
------------------------------ Tab2 showing ------------------------------

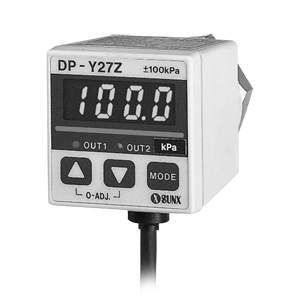

Specifications
| Type | Compound pressure | Positive pressure | |||
|---|---|---|---|---|---|
| ±100kPa type | 1MPa type | ||||
| NPN output | PNP output | NPN output | PNP output | ||
| Model No. | DP-Y27 | DP-Y27ZE | DP-Y28 | DP-Y28ZE | |
| Type of pressure | Gauge pressure | ||||
| Rated pressure range (Note 1) | -98.6kPa (2.7kPa abs) to 100.0kPa | 0 to 1.000MPa | |||
| Set pressure range (Note 2) | -101.2～110.0kPa {-1.032 to 1.122kgf/cm2, -1.012 to 1.100bar -14.68 to 15.96psi, -760 to 826mmHg} | -0.050～1.050MPa {-0.50 to 10.70kgf/cm2, -0.50 to 10.50bar -7.2 to 152.2psi} | |||
| Set pressure resolution | 0.2kPa {0.002kgf/cm2, 0.002bar, 0.02psi, 2mmHg} | 0.001MPa {0.01kgf/cm2, 0.01bar, 0.1psi} | |||
| Pressure withstandability | -98.6kPa(2.7kPa abs) to 200kPa | -98.6kPa(2.7kPa abs) to 2MPa | |||
| Applicable fluid | Gas or liquid which does not corrode stainless steel SUS316 and Hastelloy C | ||||
| Selectable units | kPa, kgf/cm2, bar, psi, mmHg | MPa, kgf/cm2, bar, psi | |||
| Supply voltage | 12 to 24V DC +10/-15% Ripple P-P10% or less | ||||
| Current consumption | 50mA or less | ||||
| Comparative outputs (Comparative Output 1, Comparative Output 2) | <NPN output type> NPN open-collector transistor ・Maximum sink current: 100mA ・Applied voltage: 30V DC or less (between comparative output and 0V) ・Residual voltage: 1V or less (at 100mA sink current) <PNP output type> PNP open-collector transistor ・Maximum source current: 100mA ・Applied voltage: within supply voltage range (between comparative output and +V) ・Residual voltage: 2V or less (at 100mA source current) | ||||
| Utilization category | DC-12 or DC-13 | ||||
| Output modes | Equipped with 3 types of modes: hysteresis mode, window comparator mode, forced output mode (selectable by key operation) | ||||
| Hysteresis | 1 digit or more when using hysteresis mode [DP-Y27(E): 2 digits or more], 1 digit when using window comparator mode [DP-Y27(E): 2 digits] | ||||
| Repeatability | Within ±0.2% F.S. ±2 digits | Within ±0.2% F.S. ±1 digit以内 | |||
| Response time | 5ms or less | ||||
| Short-circuit protection | Incorporated | ||||
| Analog voltage output | Output voltage: 1 to 5V (DP-Y27(E): for -100.0 to 100.0kPa, DP-Y28(E): for 0 to 1.000MPa) Zero-point: within 1V±1% F.S. Span: within 4V±1% F.S. Linearity: within ±1% F.S. Output impedance: 1kΩ approx.
| ||||
| Display | 3 1/2 digit red LED display (Sampling rate: 4 times/sec. approx.) | ||||
| Displayable pressure range | Same as set pressure range | ||||
| Displayable resolution | Same as set pressure resolution | ||||
| Analog bar display | LED bar display in steps of 5% F.S. approx. | LED bar display in steps of 10% F.S. approx. | |||
| Operation indicators | Comparative Output 1 | Orange LED (lights up when Comparative Output 1 is ON) | |||
| Comparative Output 2 | Green LED (lights up when Comparative Output 2 is ON) | ||||
| Environmental resistance | Pollution degree | 3 (Industrial environment) | |||
| Protection | IP40 (IEC) | ||||
| Ambient temperature | 0 to +50℃ (No dew condensation or icing allowed), Storage: -10 to +60℃ | ||||
| Ambient humidity | 35 to 85% RH, Storage: 5 to 95% RH | ||||
| EMC | Emission: EN50081-2, Immunity: EN50082-2 | ||||
| Voltage withstandability | 500V AC for one min. between all supply terminals connected together and polycarbonate enclosure | ||||
| Insulation resistance | 50Ω, or more, with 500V DC megger between all supply terminals connected together and polycarbonate enclosure | ||||
| Vibration resistance | 10 to 150Hz frequency, 1.5mm amplitude, or 10G in X, Y and Z directions for two hours each | ||||
| Shock resistance | 100m/s2 acceleration (10G approx.) in X, Y and Z directions for three times each | ||||
| Temperature characteristics | Over ambient temperature range 0 to +50℃: within±3% F.S. of detected pressure at 25℃ | ||||
| Pressure port | R(PT)1/4 male thread or M5 female thread | ||||
| Material | Enclosure: Polycarbonate, Diaphragm: Hastelloy C, Enclosed liquid: Silicone oil, Pressure port: Stainless steel (SUS316) | ||||
| Cable | 0.2mm2 5-core flame-retardant PVC cabtyre cable, 2m long | ||||
| Cable extension | Extension up to total 100m is possible with 0.3mm2, or more, cable. | ||||
| Weight | 240g approx. | ||||
| Accessory | Pressure unit label: 1 No. | ||||
(Note 1):
The rated pressure range is the range over which the product specifications are satisfied.
(Note 2):
The set pressure range is the range over which the pressure can be set and displayed.
------------------------------ Tab3 showing ------------------------------

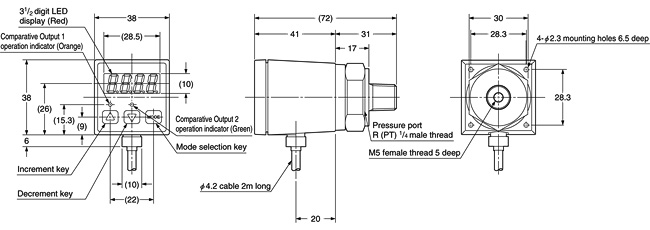

Dimensions
- Unit: mm in
DP-Y27 DP-Y27E
DP-Y28 DP-Y28E
Sensor
