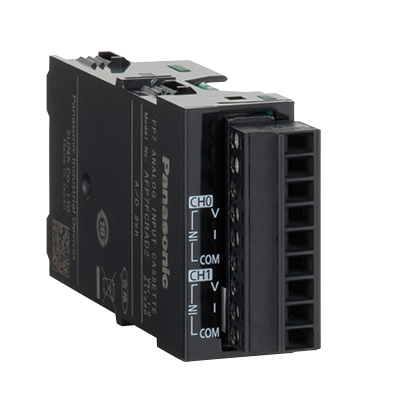

AFP7FCRAD2｜FP7 Add-on cassettes (function cassettes)

Download

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

Product Number

AFP7FCRAD2

Part Number

AFP7FCRAD2

Product

FP7 Add-on cassettes (function cassettes)

Product Name

 FP7 Add-on cassettes (function cassettes)

Contact Us

*Specifications and design of the products are subject to change without notice for the product improvement.

Spec Detail

Specifications and design of the products are subject to change without notice for the product improvement.
ItemSpecifications
Part NumberAFP7FCRAD2
Product NumberAFP7FCRAD2
Products NameFP7 Add-on cassettes (function cassettes)

INPUT SPECIFICATIONS

ItemSpecifications
Number of input points2 channels (non-insulated between channels)
Input range:Voltage0 to 10 V / 0 to 5 V, Switch setting (individual settings possible)
Input range:Current0 to 20 mA
Digital conversion valueK0 to K4000
Resolution1/4000 (12 bits)
Conversion speed1 ms / channel
Overall precisionplus or minus 1 % F.S. or less (0 to +55 degrees +32 to +131 degrees Fahrenheit )
Input impedance:Voltage1 MOhm
Input impedance:Current250 Ohm
Absolute maximum input:Voltage- 0.5 V, +15 V
Absolute maximum input:Current30 mA
Insulation method- Between analog input terminal and internal digital circuit: transformer insulation, isolation IC insulation
- Between analog input terminal and analog output terminal: transformer insulation, isolation IC insulation
External connection methodConnector type terminal block

COMMON GENERAL SPECIFICATIONS

ItemSpecifications
Ambient temperature0 to +55 ℃ +32 to +131 ℉, Storage: -40 to +70 ℃ -40 to +158 ℉
Ambient humidity10 to 95 % RH (at +25 ℃ +77 ℉, no condensation), Storage: 10 to 95 % RH (at +25 ℃ +77 ℉, no condensation)
Vibration resistance5 to 8.4 Hz, single amplitude of 3.5 mm 0.138 in, 1 sweep/min. (IEC 61131-2) ; 8.4 to 150 Hz, constant acceleration of 9.8 m/s2, 1 sweep/min. (IEC 61131-2), 10 times each in X, Y, and Z directions
Shock resistance147 m/s2 or more , 3 times each in X, Y, and Z directions (IEC61131-2)
Noise immunity1,000 V [p-p] with pulse width 50 ns and 1 micro s (using a noise simulator)
Operating conditionFree from corrosive gasses and excessive dust

INDIVIDUAL GENERAL SPECIFICATIONS

ItemSpecifications
Rated voltage range-
Current consumption40 mA or less
(Note) This value is the increase in CPU current consumption.
Net weight25 g approx. (with terminal block)
