AFP7DA4H|FP7 Analog Input and Output units
Download

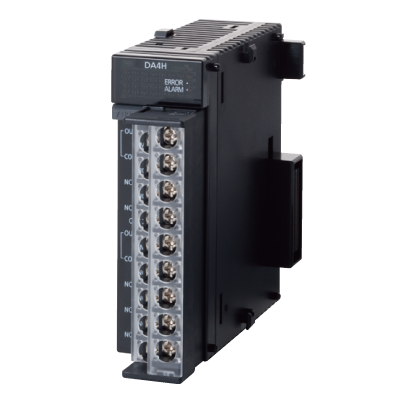

*Photo may vary from actual product.
This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.
Product Number | AFP7DA4H |
---|---|
Part Number | AFP7DA4H |
Product | FP7 Analog Input and Output units |
Details | FP7 Analog Output unit (High-speed and high-accuracy type) |
Product Name | FP7 Analog Input and Output units |
scroll
*Specifications and design of the products are subject to change without notice for the product improvement.
Spec Detail
Specifications and design of the products are subject to change without notice for the product improvement.
Item | Specifications |
---|---|
Product Number | AFP7DA4H |
Part Number | AFP7DA4H |
Products Name | FP7 Analog Input and Output units |
Product details | FP7 Analog Output unit (High-speed and high-accuracy type) |
The price of the product | Please contact our office |
scroll
ANALOG OUTPUT SPECIFICATIONS
Item | Specifications |
---|---|
Number of output channels | 4 channels |
Output range (resolution max. 16 bits):Voltage | -10 to +10 V (resolution: 1/62,500), 0 to 10 V (resolution: 1/31,250), 0 to 5 V (resolution: 1/31,250), 1 to 5 V (resolution: 1/25,000) |
Output range (resolution max. 16 bits):Current | 0 to 20 mA (resolution: 1/31,250), 4 to 20 mA (resolution: 1/25,000) |
Conversion speed:Voltage / Current | 25 micro s/channel |
Overall accuracy | plus or minus 0.1 % F.S. or less (at 25 degrees 77 degrees Fahrenheit ), plus or minus 0.3 % F.S. or less (at 0 to 55 degrees 32 to 131 degrees Fahrenheit ) |
Output impedance (Voltage output) | 0.5 Ohm or less |
Maximum output current (Voltage output) | 10 mA |
Allowable output load resistance (Current output) | 500 Ohm or less |
Insulation method:Between the input terminal and internal circuits | Photocoupler, Insulation type DC/DC converter |
Insulation method:Between channels | Not insulated |
Scale conversion setting | Any value within plus or minus 30,000 |
Offset and gain function:Offset setting | Any value within plus or minus 3,000 |
Offset and gain function:Gain setting | Any value within 9,000 to 11,000 |
Output range change method | Selectable for each channel |
Conversion execution / nonexecution channel setting | Selectable for one channel unit |
Upper and lower output limit clip function | Settable for each channel |
Analog output holding (at PROG mode) | Present value holding / Any value holding / Not holding |
External connection method | Terminal block (M3 terminal screw) |
scroll
COMMON GENERAL SPECIFICATIONS
Item | Specifications |
---|---|
Ambient temperature | 0 to +55 ℃ +32 to +131 ℉, Storage: -40 to +70 ℃ -40 to +158 ℉ |
Ambient humidity | 10 to 95 % RH (at +25 ℃ +77 ℉, no condensation), Storage: 10 to 95 % RH (at +25 ℃ +77 ℉, no condensation) |
Vibration resistance | 5 to 8.4 Hz, single amplitude of 3.5 mm 0.138 in, 1 sweep/min. (IEC 61131-2) ; 8.4 to 150 Hz, constant acceleration of 9.8 m/s2, 1 sweep/min. (IEC 61131-2), 10 times each in X, Y, and Z directions |
Shock resistance | 147 m/s2 or more , 3 times each in X, Y, and Z directions (IEC61131-2) |
Noise immunity | 1,000 V [p-p] with pulse width 50 ns and 1 micro s (using a noise simulator) |
Operating condition | Free from corrosive gasses and excessive dust |
scroll
INDIVIDUAL GENERAL SPECIFICATIONS
Item | Specifications |
---|---|
Rated voltage range | - |
Current consumption | 250 mA or less |
Net weight | 130 g approx. |
scroll
