Communication Unit for Digital Displacement Sensors SC-HG1

Download

  • Basic Information

  • Applications

  • Order guide

  • Specifications

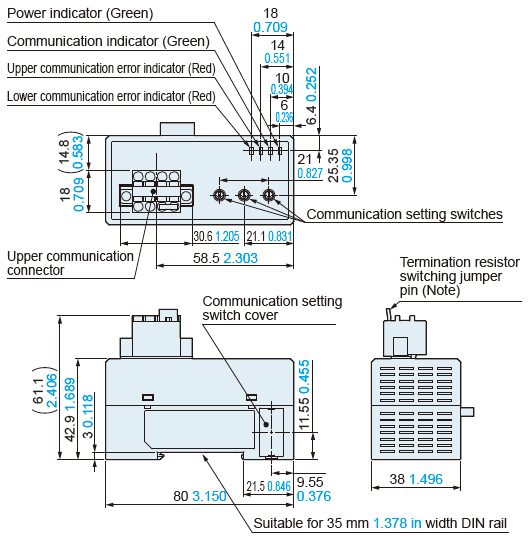

  • Dimensions

  • Cautions For Use

------------------------------ Tab1 showing ------------------------------

Basic Information

Direct transfer of high-precision measurement values
New Communication Unit for the HG-T and HG-S Series!

  • December 2019 Compatible with self-monitoring function.
  • EtherCAT communication unit SC-HG1-ETC : Compatible
  • CC-Link IE Field communication unit SC-HG1-CEF : Units shipped in and after December 2019 are compatible.
  • CC-Link communication unit SC-HG1-C : Units manufactured in and after December 2019 are compatible.
  • RS-485 communication unit SC-HG1-485 : Units manufactured on and after November 18, 2019 are compatible.
  •

Features

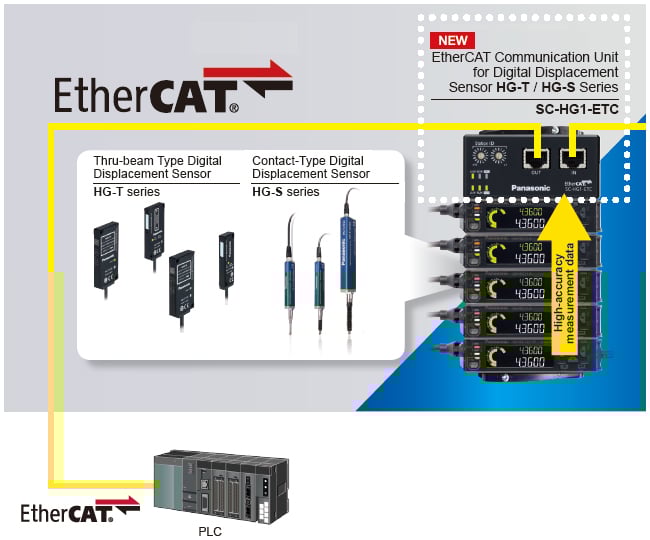

Direct Connection to High-Speed EtherCAT [SC-HG1-ETC]

Acquires various numeric data from thru-beam type digital displacement sensor HG-T series and contact-type digital displacement sensor HG-S series and allows change of their settings.

  • Connects HG-T / HG-S series digital displacement sensors directly to EtherCAT!
  • Enables change of various settings all at once.
    Allows switching of controller's internal banks.
  • Obtains high-accuracy measurement data without a program.

Direct Connection to High-Speed EtherCAT [SC-HG1-ETC]

*EtherCAT® is a registered trademark patent-protected technology, licensed by Beckhoff Automation GmbH of Germany.

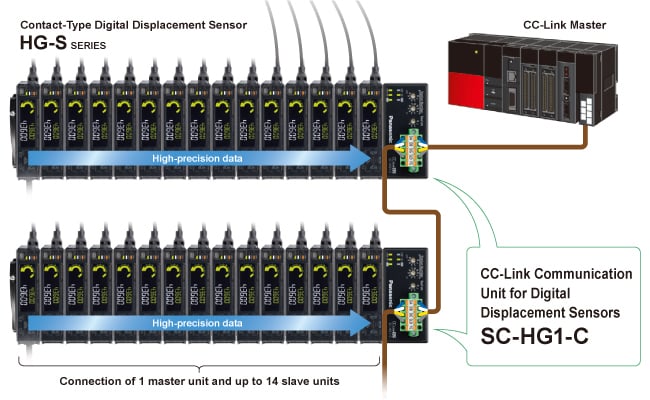

Direct Connection to CC-Link Master
Direct transfer of high-precision measurement values in the order of 0.1 μm 0.004 mil [SC-HG1-C]

Direct connection to CC-Link
Program-less transmission of high-precision data
Batch change of internal settings via CC-Link

CC-Link Communication Unit SC-HG1-C

* When connected to a communication unit for digital displacement sensor, up to 14 slave units can be connected per master unit.

Please refer to "Communication Unit for CC-Link IE Field / CC-Link" for details of SC-HG1-C and SC-HG1-CEF.

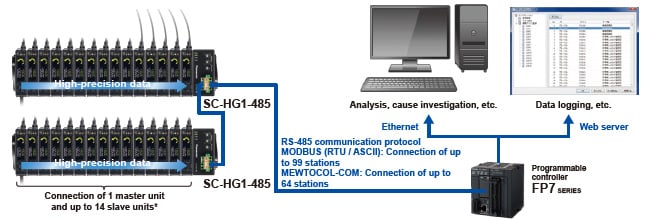

For use of high-precision measurement results as traceability data [SC-HG1-485]

Transfers not only measurements results obtained at multiple points but also setting statuses as digital data in a batch!
Provides powerful support to the management of inspection records and identification of failure causes.

For use of high-precision measurement results as traceability data

*When connected to a communication unit for digital displacement sensor, up to 14 slave units can be connected per master unit.

USB-based PC setting software
HG-T Configuration Tool

When the USB-based PC setting software, "HG-T Configuration Tool," is used together with the USB communication unit SC-HG1-USB or RS-485 communication unit SC-HG1-485, current values and settings in the HG-T series can be confirmed and changed using a PC.
>>Refer to "Thru-beam Type Digital Displacement Sensor HG-T - Software"

------------------------------ Tab2 showing ------------------------------

Applications

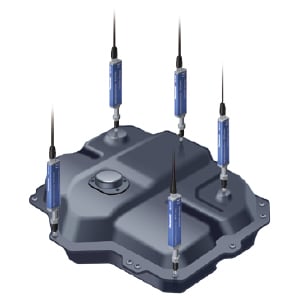

Automotive parts dimension measurement
Automotive parts dimension measurement

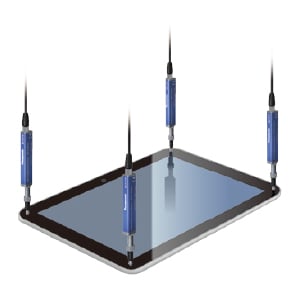

Tablet surface flatness measurement
Tablet surface flatness measurement

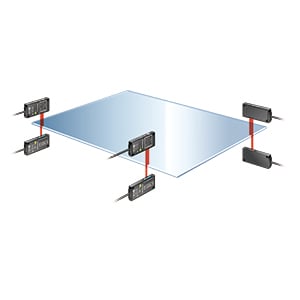

Glass substrate positioning
pic03
The judgment level adjustment function ensures stable detection and measurement of even transparent workpieces.

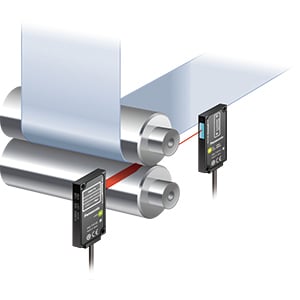

Detection of clearance between rollers
Detection of clearance between rollers
The clearance between rollers can be measured for stabilizing the workpiece quality. The compact head is easy to install.

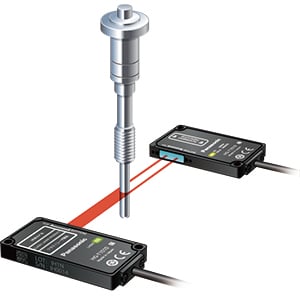

Shaft diameter measurement
Shaft diameter measurement
Shaft diameters can be measured. The original head structure and proprietary algorithm achieve stable detection without being affected by secondary reflections by metal surfaces.

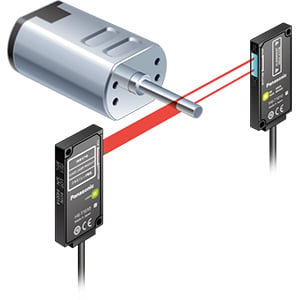

Measurement of motor shaft eccentricity
Measurement of motor shaft eccentricity
Shaft eccentricity can be measured by using the central position detection mode and measuring the distance to the shaft center.

------------------------------ Tab3 showing ------------------------------

Order guide

Product nameShapeModel No.Description
EtherCAT
Communication
Unit		EtherCAT対応通信ユニットSC-HG1-ETCCan directly send high-accuracy measurement values to EtherCAT Master.
• Communication protocol: EtherCAT
• Number of connectable controllers for HG-T / HG-S series Controller: Up to 15 units (1 master unit, 14 slave units) per SC-HG1-ETC unit
CC-Link IE Field
communication unit		CC-Link IE Field対応 通信ユニットSC-HG1-CEFCan directly send high-precision measurement values to a CC-Link IE Field host device.
• Communication method
CC-Link IE Field
• Number of connected units
Host (CC-Link IE Field): Max. 121 units (1 master station, 120 slave stations)
Controllers: Maximum of 15 units (1 master, 14 slaves) per SC-HG1-CEF unit
CC-Link
Communication
Unit		CC-Link対応通信ユニットSC-HG1-CCan directly send high-precision measurement values to CC-Link Master.
• Communication method
Switchable CC-Link Ver.1.10 or 2.00
• Number of occupied station
CC-Link Ver.1.10: 4 stations, CC-Link Ver.2.00: Switchable 2 or 4 stations
• Number of connected units
Controllers: Maximum of 15 units (1 master, 14 slaves) per SC-HG1-C unit
RS-485
Communication
Unit		RS-485対応通信ユニットSC-HG1-485

Can directly send high-precision measurement values by RS-485 communication
• Communication protocol
MODBUS (RTU / ASCII) / MEWTOCOL-COM
• Number of connected units
Host (RS-485): 1 to 99 units when MODBUS (RTU / ASCII) is used, 1 to 64 units
when MEWTOCOL-COM is used
Controllers: Maximum of 15 units (1 master, 14 slaves) per SC-HG1-485 unit

------------------------------ Tab4 showing ------------------------------

Specifications

EtherCAT communication unit

Model No.SC-HG1-ETC
Applicable regulationsCE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations)
Compatible controllersHG-SC□, HG-TC□
Maximum number of
connectable controllers		Maximum of 15 controllers (one master, 14 slaves) per SC-HG1-ETC unit
Supply voltage (Note 2)24 V DC ±10 %, including ripple 0.5 V (P-P)
Current consumption100 mA or less
Communication protocolEtherCAT
ComplianceIEEE 802.3u (100BASE-TX)
Communication speed100 Mbps (100BASE-TX)
Communication connectorRJ-45×2
Node-to-node distance100 m 328.084 ft or less
Supported functionsProcess data object communication (cyclic communication)
Mailbox communication (message communication) CoE
Explicit Device Identification
Station Alias
Pollution degree2
Operating altitude (Note 3)2,000 m 6,561.68 ft or less
Environmental
resistance		Ambient
temperature		-10 to +45 ℃ +14 to +113 ℉ (No dew condensation or icing allowed),
Storage: -20 to +60 ℃ -4 to +140 ℉
Ambient
humidity		35 to 85 % RH, Storage: 35 to 85 % RH
Voltage
withstandability		1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation
resistance		20 MΩ or higher, using 250 V DC megger between all supply terminals connected together and enclosure
Vibration
resistance		10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude (10 to 58Hz),
maximum acceleration 49 m/s2 (58 to 150 Hz) in X, Y and Z directions for two hours each
Shock
resistance		98 m/s2 (10 G approx.) acceleration in X, Y, and Z directions five times each
Grounding methodCasing: Floating type
MaterialEnclosure : Polycarbonate
Communication cableCategory 5e (shielded twisted pair cable recommended)
WeightNet weight: 90 g approx.
Gross weight: 150 g appox.

Notes:

1) Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃ +68 ℉.

2) Power is supplied from a connected controller / master controller.

3) Do not use or store in an environment that has been pressurized to an air pressure higher than the atmospheric pressure at 0 m.

CC-Link IE Field Communication Unit for Digital Displacement Sensors

Model No.SC-HG1-CEF
Applicable regulationsCE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations)
Compatible controllersHG-SC□, HG-TC□
Maximum number of connectable controllersMaximum of 15 controllers (one master, 14 slaves) per SC‑HG1‑CEF unit
Supply voltage(Note 2)24V DC ±10%, including 0.5V ripple (P-P)
Current consumption200 mA or less
Communication methodCC-Link IE Field
Remote station typeRemote device station
Network No. setting1 to 239 (decimal) [1 to EF (hex)] (0 and 240 or more: Error)(Note 3)
Cyclic transmission
(Maximum number of
links per station)		RX/RY:128 points each (128 bits), 16 bytes,
RWr/RWw: 64 points each (64 words), 128 bytes
Transient transmissionServer function only, data size 1024 bytes
Station No. setting1 to 120 (decimal) (0 and 121 or more: Error)
Communication speed1 Gbps
Transmission line typeLine, star, (mixing of line and star types is possible), ring
Maximum transmission distance100 m 328.084 ft
Maximum number of units connectable121 units (1 master station, 120 slave stations)
Cascade connection levelsMaximum 20
Pollution degree2
Operating altitude2,000 m 6561.68 ft or less(Note 4)
Environmental
resistance		ProtectionIP40 (IEC)
Ambient temperature-10 to +45 ℃ +14 to +113 ℉ (No dew condensation or icing allowed)
Storage: -20 to +60 ℃ -4 to +140 ℉
Ambient humidity35 to 85 % RH, Storage: 35 to 85 % RH
Voltage
withstandability		1,000 V AC for one min. between all supply terminals
connected together and enclosure
Insulation
resistance		20 MΩ or more, with 250 V DC megger between all supply
terminals connected together and enclosure
Vibration resistance10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude (10 to 58Hz), maximum acceleration 49 m/s2 (58 to 150 Hz) in X, Y and Z directions for two hours each
Shock resistance98 m/s2 acceleration (10 G approx.) in X, Y and Z directions
five times each
MaterialEnclosure: Polycarbonate
Communication cableEthernet cable that satisfies 1000BASE-T standard Category
5e or higher (Double-shielded / STP, straight cable)(Note 5)
WeightNet weight: 100 g approx., Gross weight: 150 g approx.

Notes:

1) Where measurement conditions have not been specified precisely, the conditions used
were ambient temperature +20 ℃ +68 ℉.

2) Power is supplied from a connected controller / master controller.

3) For the network number setting on this product, convert the network number to hex and
set the hex value.

4) Do not use or store in an environment that has been pressurized to an air pressure higher than the atmospheric pressure at 0 m.

5) Use CC-Link Partner Association recommended cable.

CC-Link Communication Unit for Digital Displacement Sensors

Model No.SC-HG1-C
Applicable regulationsCE Marking (EMC Directive (Note 2), RoHS Directive), UKCA Marking (EMC Regulations (Note 2), RoHS Regulations)
Compatible controllersHG-SC□, HG-TC□
Maximum number of connectable controllersMaximum of 15 controllers (one master, 14 slaves) per SC-HG1-C unit
Supply voltage (Note 3)24 V DC ±10 %, including 0.5 V ripple (P-P)
Current consumption80 mA or less
Communication methodSwitchable CC-Link Ver.1.10 or 2.00
Remote station typeRemote device station
Number of occupied stationCC-Link Ver.1.10: 4 stations, CC-Link Ver.2.00: Switchable 2 or 4 stations
Station No. setting1 to 64 (0 and 65 or more: Error)
Communication speed10 Mbps5 Mbps2.5 Mbps625 kbps156 kbps
Maximum transmission
distance		100 m
328.084 ft		160 m
524.934 ft		400 m
1,312.336 ft		900 m
2,952.756 ft		1,200 m
3,937.008 ft
Pollution degree2
Operating altitude2,000 m 6561.68 ft or less (Note 4)
Environmental
resistance		ProtectionIP40 (IEC)
Ambient temperature-10 to +45 ℃ +14 to +113 ℉ (No dew condensation or icing allowed), Storage: -20 to +60 ℃ -4 to +140 ℉
Ambient humidity35 to 85 % RH, Storage: 35 to 85 % RH
Voltage withstandability1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance20 MΩ or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude (10 to 58 Hz), maximum acceleration 49 m/s2(58 to 150 Hz) in X, Y and Z directions for two hours each
Shock resistance98 m/s2 acceleration (10 G approx.) in X, Y and Z directions five times each
MaterialEnclosure: Polycarbonate
Communication cableSpecified cable (shielded twisted cable) (Note 5)
WeightNet weight: 80 g approx., Gross weight: 130 g approx.

Notes:

1) Where measurement conditions have not been specified precisely,
the conditions used were ambient temperature +20℃+68℉.

2) If our product will be incorporated in a customer product that will comply with the EMC Directive / EMC Regulations , install our product in a conductive box in accordance with "PLC User's Manual [Published by Mitsubishi Electric Corporation]".

3) Power is supplied from a connected controller / master controller.

4) Do not use or store in an environment that has been pressurized to an air pressure higher than the atmospheric pressure at 0 m.

5) Use only a special-use communication cable that is approved by the CC-Link Partner Association.

RS-485 Communication Unit for Digital Displacement Sensors

Model No.SC-HG1-485
Applicable regulationsCE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations)
Compatible controllersHG-SC□, HG-TC□
Supply voltage (Note 2)24 V DC ±10 %, Ripple P-P 10 % or less (Within specified power supply voltage range)
Current consumption40 mA or less
Communication methodTwo-wire half duplex communication
Synchronization methodStart-stop synchronization
Communication protocolMODBUS (RTU / ASCII) / MEWTOCOL-COM
Communication speed1.2 kbps / 2.4 kbps / 4.8 kbps / 9.6 kbps / 19.2 kbps / 38.4 kbps / 57.6 kbps / 115.2 kbps
Electrical characteristicsComplies with EIA RS-485
Number of
connectable
units		Host (RS-485)1 to 99 units when MODBUS (RTU/ASCII) is used, 1 to 64 units when MEWTOCOL-COM is used
ControllersMaximum of 15 controllers (one master, 14 slaves) per SC-HG1-485 unit
Stop bit length1 bit / 2 bits
Parity checkEven / Odd / None
Data bit length8 bits (RTU) / 7 bits (ASCII)
Pollution degree2
Operating altitude2,000 m 6561.68 ft or less (Note 3)
Environmental
resistance		ProtectionIP40 (IEC)
Ambient temperature-10 to +45 ℃ 14 to +113 ℉ (No dew condensation or icing allowed), Storage: -20 to +60 ℃ -4 to +140 ℉
Ambient humidity35 to 85 % RH, Storage: 35 to 85 % RH
Voltage withstandability1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude (10 to 58Hz), maximum acceleration 49 m/s2 (58 to 150 Hz) in X, Y and Z directions for two hours each
Shock resistance98 m/s2 acceleration (10 G approx.) in X, Y and Z directions five times each
MaterialEnclosure: Polycarbonate
Total extension distanceCommunication cable: 1,200 m 3,937.008 ft or less between SC-HG1-485 (terminal) and PLC
WeightNet weight: 75 g approx., Gross weight: 120 g approx.
AccessoriesTermination resistor switching jumper pin: 1 pc.

Notes:

1) Where measurement conditions have not been specified precisely, the conditions used were ambient temperature +20℃ +68 ℉.

2 Power is supplied from a connected controller / master controller.

3 Do not use or store in an environment that has been pressurized to an air pressure higher than the atmospheric pressure at 0 m.

------------------------------ Tab5 showing ------------------------------

Dimensions

  • Unit: mm in

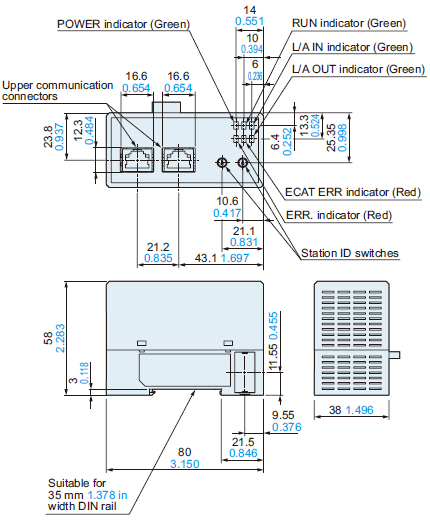

SC-HG1-ETC

SC-HG1-ETC

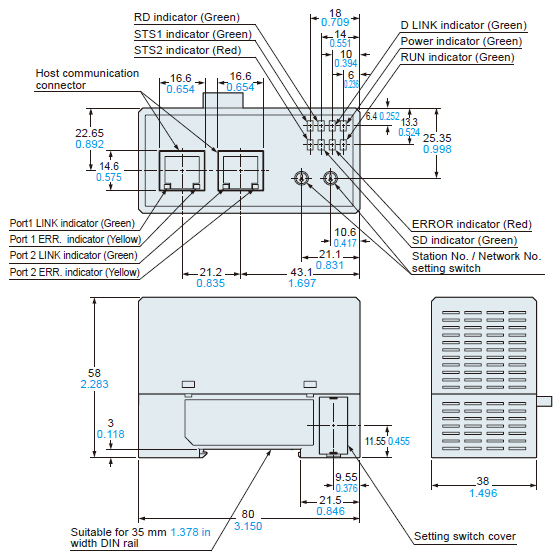

SC-HG1-CEF

SC-HG1-CEF

SC-HG1-C

Communication unit for CC-Link

SC-HG1-C

SC-HG1-485

SC-HG1-485


Note:
 The termination resistor switching jumper pin is not attached to the product at the factory.
Attach the termination resistor switching jumper pin to the unit at the terminating end.
Make sure that the termination resistor switching jumper pin have been removed from all units except the one at the terminating end.

------------------------------ Tab6 showing ------------------------------

Cautions For Use

With regards to the connected use of HG-S and HG-T

Please refer to the page below when using HG-S controllers and HG-T controllers connected.
>>With regards to the connected use of HG-S and HG-T

MENU

Recently checked products

Recently checked product numbers
