With regards to the connected use of HG-S and HG-T

Conditions of connected use of HG-S and HG-T

  • When using HG-TC□ contollers of Thru-beam Type Digital Displacement Sensor HG-T series and HG-SC□ controllers of Contact-Type Digital Displacement Sensor HG-S series connected together, please be sure to use new controllers HG-SC□ and HG-TC□ which are manufactured in or after February, 2019.

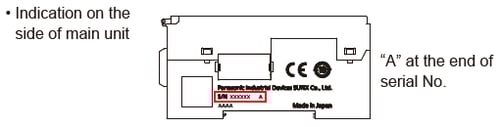

How to identify newer controllers (manufactured in or after February 2019)

hg-s_hg-t_pic01


  • Up to 15 slave units (14 slave units when connecting with communication unit) can be connected to 1 master unit.

When using HG-TC□ contollers of HG-T series and HG-SC□ controllers of HG-S series connected together,

  • Please connect the slave units of the same series to the near side of the main unit and the slave units of the different series to the far side.
  • Calculation, simultaneous input, and copy functions can be used to the slave units of same series as the master unit only.
  • External output (LOCIG2) and connected units count check functions can be used.

Ex: When the master unit is HG-TC□,

hg-s_hg-t_pic02
