AKR2045｜KR20 Wireless Unit (Discontinued)

Download

Discontinued

Last time buy (JST)

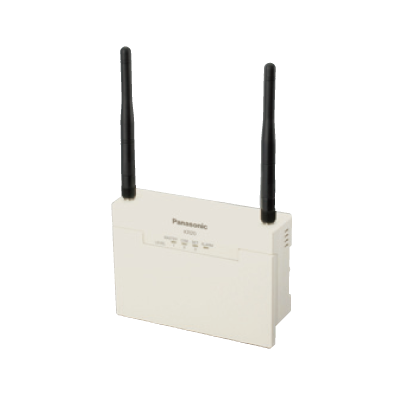

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

    Product Number

    AKR2045

    Part Number

    AKR2045

    Product

    KR20 Wireless Unit

    Details

    I/O type (PNP)

    Order end date for this product varies by country/region.
    Please confirm the remarks for the order end date.

    Product Name

    		 KR20 Wireless Unit (Discontinued)
    Substitute
    Sub Prod No.
    Sub Part No.
    Remark

    Spec Detail

    ItemSpecifications
    Part NumberAKR2045
    Product NumberAKR2045
    Products NameKR20 Wireless Unit
    Product detailsI/O type (PNP)

    Order end date for this product varies by country/region.
    Please confirm the remarks for the order end date.
    The price of the productPlease contact our office

    General specifications

    ItemSpecifications
    Rated voltage12 to 24V DC
    Operating voltage range10.8 to 26.4V DC
    Current consumption200 mA or less (During sending)
    Inrush current23 A (when 24 V DC)
    Ambient temperature-10 to +50 degrees
    Storage temperature-20 to +70 degrees
    Ambient humidity30 to 85 %RH (at 25 degrees non-condensing)
    Storage humidity30 to 85 %RH (at 25 degrees non-condensing)
    Breakdown voltage(initial)500 V AC for 1 min. (Between power terminal and FG / DSUB connector, Between power terminal and input / output terminal, Between input terminal and output terminal)
    Insulation resistance(initial)100 M ohm or more (at 500 V DC)(Between power terminal and FG / DSUB connector, Between power terminal and input / output terminal, Between input terminal and output terminal)
    Vibration resistance10 to 55 Hz 1cycle / min. Double amplitude of 0.75 mm, 10 min. on 3 axes
    Shock resistance98 m / s2 or more, 4 times on 3 axes
    Noise immunity1000 V [p-p] with pulse width 50 ns, 1 micro s (based on in-house measurements)(Power terminal)
    Overcurrent protection of power supplyFuse (Rated current: 3.15A)
    WeightApprox. 160 g

    Wireless specifications

    ItemSpecifications
    Wave typeDirect sequence spread spectrum (DS-SS)
    Transmission distanceApprox. 250 m outdoors (straight, obstacle-free distance), Approx. 50 m indoors
    (Note) The main unit, standard antenna and antenna with cable are designed for indoor use. If they are used outdoors, then take water-proof measures such as using plastic cases, etc.
    Wave output6 mW / MHz or less
    Frequency2403.328 MHz to 2480.128 MHz
    Number of channels76 ch (Select with communication channel switch)
    (Note) Adding to the fixed channel, 76 ch (00 to 4B), 89 group channel can be selected. Group channel is the function that it selects connectable channel from several fixed channels automatically. When using repeater function, use with the fixed channel. When using group channel, settable channel numbers are decreased in the same communication area and the communication time becomes longer.
    Number of channels in same transmission area15 channels recommended (when select fixed channel)
    (Note) It is different according to the mounting conditions, when several channels are used in the same communication area, communication error might occur due to interference radio wave.
    Transmission speed134kbps
    Communication style1: N topology (N: 99 units max.)
    Repeater function8 repeaters (Between master and slave)
    Response timeOFF to ON, ON to OFF: Max. 80 ms
    (Note) There are no error without serial communication at 1: 1 topology. Response time: Time from input signal to input terminal to output from output terminal in connected equipment. When input signal is shorter than response time, there is a possibility not to transfer to output side.

    Serial communication specifications

    ItemSpecifications
    InterfaceConforming to RS232C
    Transmission distance15 m
    Transmission speed1,200, 2,400, 4,800, 9,600, 19,200, 38,400, 57,600, 115,200 bit / s (Selectable with MODE switch)
    Communication methodHalf-duplex
    Synchronous systemSynchronous communication method
    Transmission formatStop bit: 1 bit
    Parity: Not available / Available (odd / even)
    Data length: 7bit / 8bit
    Data buffer2,048 bytes (Max. data byte size for send and receive one time)

    Input specifications

    ItemSpecifications
    Insulation methodOptical coupler
    Rated input voltage12 to 24 V DC (voltage input)
    Operating voltage range10.8 to 26.4 V DC
    Rated input currentApprox. 3 mA / when 12 V, Approx. 6 mA / when 24 V
    Points per common6 points / common (Either positive or negative of input power supply can be connected.)
    (Note) In case simultaneously ON of input and output, input number and output number are restricted according to the ambient temperature.
    Input impedanceApprox. 4 kohm
    Operation indicatorLED display (green)

    Output specifications

    ItemSpecifications
    Insulation methodOptical coupler
    Output typeOpen collector (PNP)
    Rated load voltage12 to 24 V DC
    Allowable load voltage range10.8 to 26.4 V DC
    Max. load current0.3 A
    Max. inrush current1.5 A
    Points per common7 point / common (Signal output, Communication error output)
    (Note) In case simultaneously ON of input and output, input number and output number are restricted according to the ambient temperature.
    Off state leakage current1 micro A or less
    On state voltage drop1.5 V DC or less
    External power supply(+, – terminal):Voltage10.8 to 26.4 V DC
    External power supply(+, – terminal):CurrentMax. 60 mA
    Surge absorberZener diode
    Operation indicatorLED display

    Functions specifications

    ItemSpecifications
    Setting function- Operating mode change (SET, RUN, TEST)
    - Communication channel change (CH switch)
    - Unit No. change (UNIT No. switch)
    - Serial communication setup (MODE switch)
    - Slave registration
    - Initializing (Factory setting)
    - Data holding (When communication error)
    Test functionCommunication test: 3-stage LED display (With setting tool, it can do various communication tests such as changing data amount, including repeaters and so on. And it can measure an approximate communication time.)
    Field intensity monitor: 3-stage LED display (With setting tool, it can display and record a field intensity of each channel by numeric value.)
    LED display- Distinguish master or slave (MASTER)
    - On communication, Power on (COM.)
    - On setting, Complete setting (SET)
    - Error, Alarm, Caution (ALARM)
    - Level indication (1, 2, 3: when using test function)
    - I / O operating display (16 or 12 points + 1 point of communication error)
