KW1M-R Eco-POWER METER (Discontinued Products)

System Configuration

• 1.Example of system configration.
• 2.Power monitoring of lighting, air conditioner and equipment in a factory.

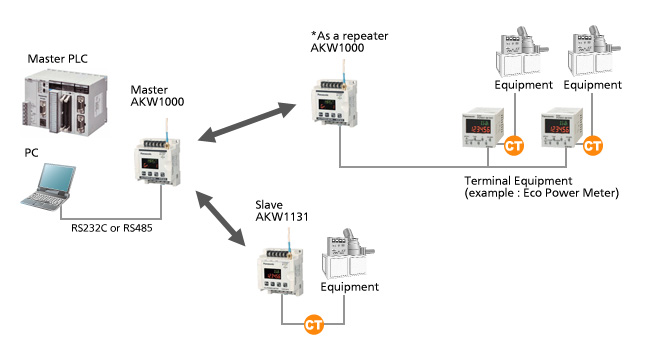

1.Example of system configration.

* AKW1000 can also serve as a repeater by setting in master / slave setting mode.

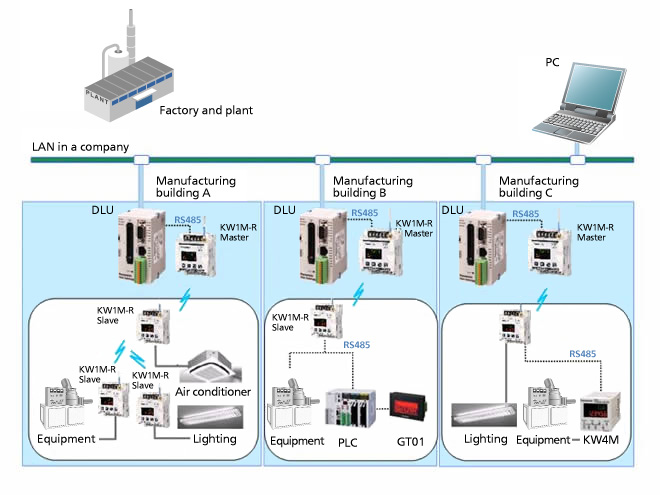

2.Power monitoring of lighting, air conditioner and equipment in a factory.

Rating/ Performance

MEASUREMENT ITEMS

Note 1:

Eco-POWER METER is designed chiefly to manage saving energy. It is neither intended nor can it be legally used for billing.

SPECIFICATIONS

Main unit specifications

Note 1:

Analog input terminals: No.3, No.4, No.5 and No. 6

Electric power input specifications <only AKW1131>

Pulse input specifications (only AKW1131)

Pulse output specifications (Transistor output) <only AKW1131>

Note 1:

We recommend the setting of minimum unit for pulse output for measurement shown as below.

Output pulse: 4 pulses or less per 1sec
Count errors may occur if pulse output unit is set so that 4 or more pulses are output per 1 second.
- How to calculate -
Unit for pulse output: PL-P > Max. measurement power (kW) / 3,600 sec × 4 pulse/sec

Communication specifications

RS232C communication <only AKW1000>

Note 1:

For 1:1 topology of AKW1000, it can communicate regardless the protocol.
(Only communication between AKW1000 and AKW1000)

Note 2:

If flow control is executed, the other device needs to support flow control.

RS485 communication

Note 1:

Please check with the actual devices when some commercial devices with RS485 interface are connected. The number of connected devices, transmission distance, and transmission speed may be different according to using transmission line.

Note 2:

For RS485 converter on the computer side, we recommend SI-35 and SI-35USB.
(from LINE EYE Co., Ltd.)

Note 3:

When using SI-35, SI-35USB or PLC from our company (which can be connected up to 99 units), up to 99 Eco-POWER METER can be connected. In case using this system with the other devices, up to 31 Eco-POWER METER can be connected.

Note 4:

With MODBUS (RTU) protocol, it works only with 8bit.

Note 5:

For 1:1 topology of AKW1000, it can communicate regardless the protocol.
(Only communication between AKW1000 and AKW1000)

Note 6:

AKW1131 can’t be used for data communication from RS485. It may cause malfunctions.

Note 7:

For AKW1131, the maximum number of reading points are 26 (57-byte), the maximum number of writing points is 23 (55-byte).

Wireless communication

Note 1:

There is no setting for letting it work as repeater, comfirm actual number of repeaters by KW Network Monitor.

■Frequency

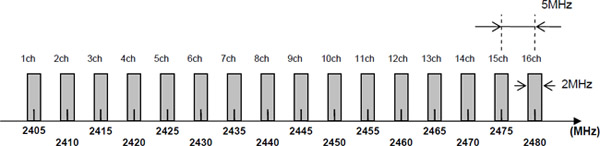

There are 16 channels of communication channel with 5MHz separation.

Communication channelFrequencyAUTOAuto selection from 2405 to 2480MHz1ch2405MHz2ch2410MHz3ch2415MHz4ch2420MHz5ch2425MHz6ch2430MHz7ch2435MHz8ch2440MHz9ch2445MHz10ch2450MHz11ch2455MHz12ch2460MHz13ch2465MHz14ch2470MHz15ch2475MHz16ch2480MHz

Recommended Cable

Use the transmission cables shown below for Eco-POWER METER RS485 communication system.

Note 1:

Use shielded type twist cables.

Note 2:

Use only one type of the transmission cables. Do not mix different types of the cables.

Note 3:

Use twist pair cables under a bad noise environment.

Calendar timer specifications <only AKW1000/AKW1000>

Note 1:

When battery power is reduced,”BATT” is blinking. Replace battery according to the procedures.
Battery life will be shorten if using this under high-temperature.

Software Download

Software are available for download.
*Membership registration is required to access/download this data.

>>Go to Data download.

Cautions For Use

*Please refer to each manual for the precautions in using.

PDF

Avoid locations subject to flammable or corrosive gases, excessive dust, oil, vibrations, or excessive shocks.

Although the case is made from fireproof resin, do not mount it next to flammable materials. Also, avoid placing it directly on top of materials that catch fire easily.

Since the cover for main unit is made of polycarbonate resin, avoid contact with or use in environments containing methyl alcohol, benzene, thinners, and other organic solvents; and ammonia, caustic sodas, and other alkaline substances.

This product is designed to be used only with our options. Options from other companies are not compatible.

Measurement

• Accurate measurement may not be possible if harmonics or waveforms are distorted. Therefore, please test on actual equipment before using.
• Do not use the secondary circuit of the inverter. It causes heat and malfunctions in the main unit.

Surge

• If the operating power supply surge exceeds the following value, the internal circuit could be destroyed, so be sure to use a surge absorption element.

The values in the graph are the surge-voltage resistance at ±(1.2 × 50) μs of single-polarity full-wave voltage.
Surge wave form [±(1.2/50) μs single-polarity full-wave voltage]

• External noise up to the level shown below is treated as noise voltage, but levels higher than this could lead to malfunctioning or damage to the internal circuit.

Noise wave form (noise simulator)
Rise time: 1 ns Pulse width: 1 μs, 50 ns
Polarity: ± Cycle: 10 ms
(Note 1): Accurate measurement may not be possible if excessive noise gets added to the input line.

Self-diagnostic function

If an error occurs, the following displays will be given.

(Note 2):

Includes the possibility that the EEPROM's life has expired.

Power failure memory

• Eco-POWER METER memories integrated electric power and working status to internal EEPROM until when power supply is off. (Power failure guarantee)
  And every time to change each setting, each setting value is memorized to internal EEPROM at the same time. Therefore, change setting frequently makes EEPROM's life short. Avoid to usage like this.

Others

• Eco-POWER METER is designed chiefly to manage saving energy. It is neither intended nor can it be legally used for billing.

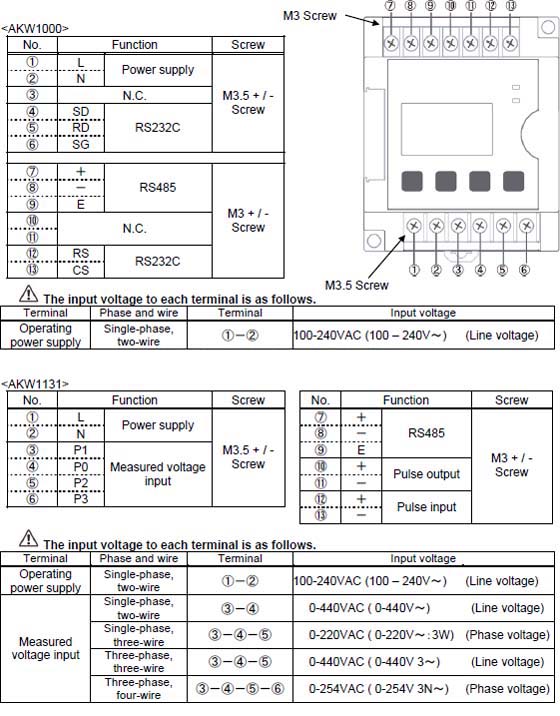

Wiring

Please make sure to check wiring in dimensions page in each product page.

Note:

Please connect a breaker (3 to 15A) to the voltage input part for safety reasons and to protect the device. Grounding the secondary side of VT (Voltage transformer) and CT (Current transformer) is not necessary with low-voltage circuit.

Regarding dedicated current transformers(In AKW8115, dedicated current transformers are not used,therefore, please confirm the respective user's manual.)

HOW to attach the Current Transformer (CT)

• In case the Eco-POWER METER has connectors for CT, connect to the Eco-POWER METER as it is.
• In case the Eco-POWER METER has screw terminals for CT (KW4M and KW8M), cut the connector for Eco-POWER METER side. Refer to the below.

<Process drawings>

• The below number of CT is required.

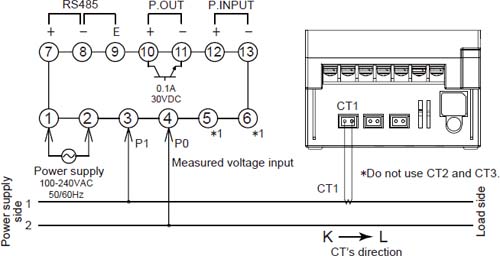

  For single-phase, two-wire system; 1 pc.
  For single-phase, three-wire system; 2 pcs.

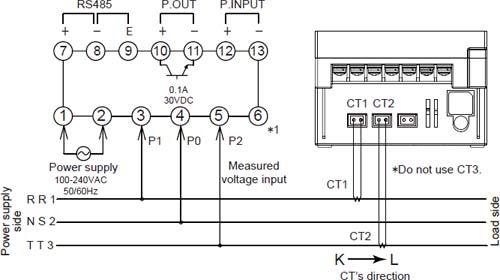

  For three-phase, three-wire system; 2 pcs.

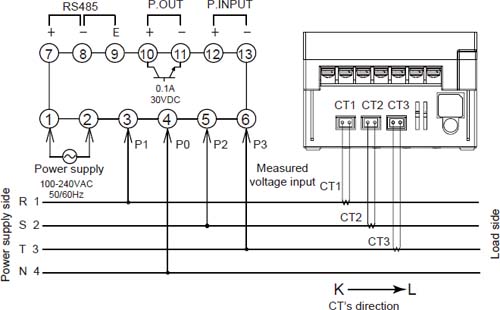

  For three-phase, four-wire system; 3 pcs.
  All using CT for one Eco-POWER METER should have the same rating.
• Check beforehand that the thickness of the load electric wire is smaller than the through hole of the CT.
• Do not attach CT to the part which a conductor is exposed, such as a bus bar in a control box.
  It might cause an electric shock.
• When connecting CT, connect the secondary side to the terminal of the Eco-POWER METER first, and after that wire the primary side to a load electric wire. Incorrect order might cause an electric shock or break CT.
• CT has polarity. Align according to the direction (K → L) written on the CT and install from the power source side (K) facing the load side (L). If the direction is incorrect, accurate measurement is impossible.
• When installing and closing CTs, please confirm there is no dust or foreign matter on the separating surfaces. In addition, verify that the separating surfaces are making perfect contact when the CT is closed. Measurement errors will occur if there is a gap in the separating surfaces. (Only Clamp-on type)
• If there is some distortion by harmonic or waveform, it may not measure correctly. Please check with the actual system before adopting it.
• Separate the wiring (strong electric part) of the measured voltage input terminal (operating power supply terminal) from the CT cable. It may not satisfy the accuracy due to noise.

When CT's cable is extended

• Extension of the cable is possible up to approximately 10 m 32.808 ft if the environment is completely free from noise such as external and line induction noise, and the cable has a thickness of at least 0.75 mm². When extending the cable, use as thick a cable as possible.
  *When extending the cable, please perform testing under actual conditions before using.

To connect CT with secondary side current 5 A

How to connect for measuring by combination with CT (secondary side current 5 A)

• Select 5 A at CT type setting mode (CT-T).
• Set the primary current of measured CT (secondary side current 5 A) at primary side current of CT setting mode (CT-1). If the measured CT is 400 A / 5 A, set to "400".
• Clamp the dedicated CT for 5 A, which is connected to the main unit first, to secondary side of the CT. CT direction (K → L) should be set for the CT direction.
• Please set the CT (secondary side current 5 A CT) and, the dedicated CT for 5A, approximately 1 m 3.281 ft apart. If the two CTs are set too close each other, it may not measure accurately due to magnetic field interference.

(Connection example)
With ammeter etc.

Without ammeter

Input connection [except AKW7111B and AKW1110B]

• Contact input
  Use highly reliable metal plated contacts. Since the contact's bounce time leads directly to error in the count value, use contacts with as short a bounce time as possible. In general, select 30 Hz for max. counting speed.
• Non-contact input (Transistor input)
  Connect with an open collector. Use the transistor with the following specifications.
  V_CEO=min. 20 V, I_C=min. 20 mA, I_CBO= max. 6 μA
  Use transistors with a residual voltage of less than 1.5 V when the transistor is ON.

Note:

Short-circuit impedance should be less than 1 kΩ. (When the impedance is 0 Ω, drain current is approx, 7 mA. The opencircuit impedance should be more than 100 KΩ.)

• Input wiring
  Please use shielded wire or metal wire-ways exclusively and a wire length of 10 m 32.808 ft or less. If the wiring length is longer, the impact due to floating capacitance may result in abnormal operation.

Note:

Operating power supply input part and measured voltage input are not insulated to pulse input parts.So the input equipment must have the power supply transformer in which the secondary side is not grounded with the primary and secondary sides insulated, in order to prevent interference of the power supply circuit when connecting the external input circuit. Be sure not to use an auto-transformer.

Output connection

Since the transistor output is insulated from the internal circuit by a photo-coupler, it can be used both as a NPN output and PNP (equal value) output.

Crimping terminal

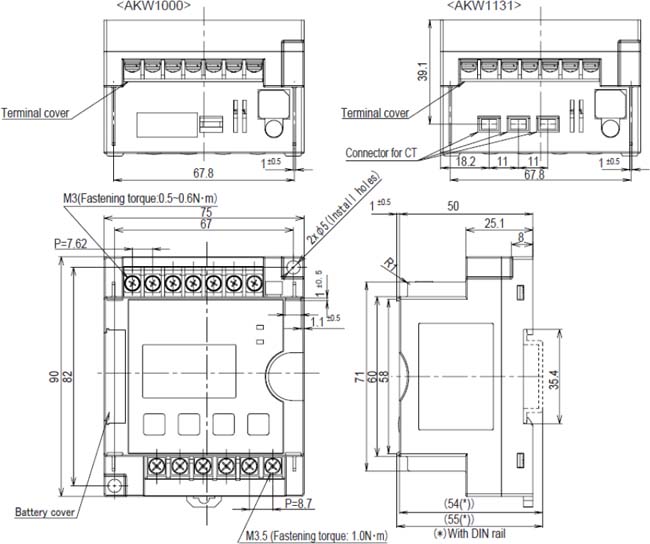

please make sure to check crimping terminal in dimensions page in each product page.

Low Voltage Directive

When using in the application confirming to EN61010-1/IEC61010-1, make sure to satisfy the following conditions.

(1)  Pulse output part secure only basic insulation. In order to secure reinforced (double) insulation demanded by EN 61010-1/ IEC61010-1, secure basic insulation or more with load side and reinforced (double) insulation with communication system side.

(2)  Provide the voltage input part with an EN60947-1 or EN60947-3 compliant circuit breaker. The breaker that connects to the voltage input part must arrange at the position easily reached, and display shows it is the breaker of the equipment.

(3)  Use a wire with basic insulation or more for a wire cramped (or connected) CT.

【Environmental conditions】

• Overvoltage category II, Pollution degree 2
• Indoor use
• An ambient temperature of –10 to 50℃
• An ambient non-condensing humidity of 35 to 85%RH (at 20℃)
• Altitude of 2000m or less

【Mount the product in a place with】

• A minimum of dust, and an absence of corrosive gases
• No flammable, explosive gasses
• Few mechanical vibrations or shocks
• No exposure to direct sunlight
• No large capacity electromagnetic switches or cables through which large current is flowing
