VL Mini Limit Switches (AZ8) (Discontinued Products)

  • Discontinued Products

  • Rating/ Performance

Ⅾiscontinued

Last time buy (JST)

August 31, 2012

We are sorry, the products have been discontinued. Please refer to the details of the discontinued products and the recommended substitutes list below.

------------------------------ Tab1 showing ------------------------------

Discontinued Products

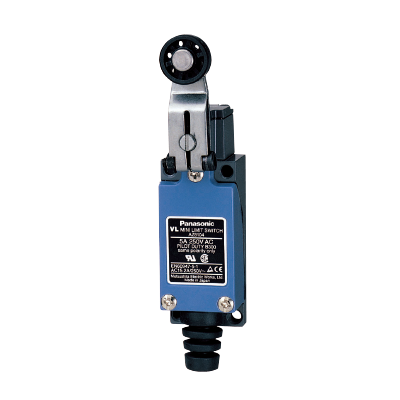

thumbnail

------------------------------ Tab2 showing ------------------------------

Rating/ Performance

1.Rating

1) Standard type

LoadResistive load
(cos ø≒1)
Inductive load
(cos ø≒0.4)
125V AC5A3A
250V AC5A2A
125V DC0.4A0.1A

2) Types with neon lamp and with LED

LoadRated control
voltage
Resistive load
(cos ø≒1)
Inductive load
(cos ø≒0.4)
With Neon lamp125V AC5A3A
240V AC5A2A
With LED24V DC3A-

2.Characteristics

Contact arrangement1 Form A 1 Form B
Initial contact resistance, max.15mΩ (By voltage drop 6 to 8V DC at rated current)
Contact materialGold clad silver alloy (cadmium free)
Initial insulation resistance
(At 500V DC)
Min. 100MΩ
Initial breakdown voltage1,000Vrms for 1 min Between non-consecutive terminals 2,000Vrms for 1 min Between dead metal parts and each terminal 2,000Vrms for 1 min Between ground and each terminal
Shock resistance max.In the free positionMax. 98m/s2 {10G}
In the full operating positionMax. 294m/s2{30G}
Vibration resistanceStandard type: Max. 55Hz Type with indicator: 10 to 50Hz, double amplitude of 1.5mm
Expected life
(Min. operations)
Mechanical107 (at 120 cpm)
Electrical3 x 105 (at rated resistive load) 5 x 106 (Magnetic contactor FC-100 200V AC load)
Life of lampMin. 2 x 104 hours (Neon lamp type)
Ambient temperature/
Ambient humidity
–20 to +60℃ –4 to +140℉/Max. 95%
Max. operating speed120 cpm

3.EN60947-5-1 performance

ItemRating
Rated insulation voltage (Ui)250VAC
Rated impulse withstand voltage (Uimp)2.5kV
Switching overvoltage2.5kV
Rated enclosed thermal current (Ithe)5A
Conditional short-circuit current100A
Short-circuit protection device10A fuse
Protective constructionIP64
Pollution degree3

4.Operating characteristics

CharacteristicsO.F. (N {gf})
max.
R.F. (N {gf})
min.
Pretravel
(P.T.), max.
mm inch
Movement
Diferential
(M.D.), max.
mm inch
Overtravel
(O.T.), min.
mm inch
Totaltravel
(T.T.), min.
mm inch
Push plunger
Roller plunger
Cross roller plunger
8.83 {900}1.47 {150}1.5 .0590.7 .0284 .0285.5 .217
Roller arm5.88 {600}0.49 {50}20°10°75°95°
Adjustable roller arm7.84 {800}~3.35 {342}0.49 {50}~0.21 {21}20°10°75°95°
Adjustable rod7.84 {800}~1.99 {203}0.49 {50}~0.12 {12}20°10°75°95°
Flexible rod spring wire0.88 {90}-30 (1.181)-20 (.787)50 (1.969)

*Characteristics measured at bent condition: min. radius 100mm 3.937inch.

Note 1 :Keep the total travel values in the specified range. Otherwise the actuator force may rise to several times the operating force, resulting in a mechanical failure or much shorter service life.

5.Protective construction

Protective constructionVL Mini limit switchVL Mini limit switch
(with lamp)
IEC
IP60
IP64

6.Lamp rating

TypesRated
operating
voltage
Operating
voltage
range
Internal
resister
Neon lamp100 to 200V AC80 to 240V AC120kΩ
LED6V DC5 to 15V DC2.4kΩ
12V DC9 to 28V DC4.7kΩ
24 to 48V DC20 to 55V DC15kΩ
