SL (AZ3) Micro Limit Switches (Discontinued Products)

Download

  • Discontinued Products

  • Rating/ Performance

  • Dimensions

Ⅾiscontinued

Last time buy (JST)

September 30, 2018

We are sorry, the products have been discontinued. Please refer to the details of the discontinued products and the recommended substitutes list below.

------------------------------ Tab1 showing ------------------------------

Discontinued Products

pic01

------------------------------ Tab2 showing ------------------------------

Rating/ Performance

Rating

Rated control voltage125V AC250V AC30V DC125V DC
Resistive load (cosø≒1)4A4A4A0.1A
Inductive load (cosø≒0.4)2.5A2.5A2.5A0.1A

Characteristics

Contact arrangement1 From C
Initial contact resistance, max.60 mΩ(By voltage drop 5 to 6V DC 1A)
Contact materialAgNi contact
Initial breakdown voltageBetween non-consective terminals1000 Vrms for 1 min
Between dead metal parts and each terminal1500 Vrms for 1 min
Between ground and each terminal1500 Vrms for 1 min
Expected life (min. operations)Mechanical107 (at 60 cpm)
Electrical105 (at 20 cpm, 4A 250V AC resistive)
Ambient temperature–20 to +60℃ -4 to +140℉
Ambient humidityMax. 95% R.H.
Max. operating speed120 cpm

Mechanical characteristics

ActuatorHinge leverRoller leverOne-way roller leverHinge short leverShort roller leverOne-way short roller lever
Operating Force (O.F.)1.18N1.96N1.18N1.96N1.96N2.94N2.94N2.94N
Shock resistance, min.In the free position98m/s2294m/s298m/s2196m/s2147m/s2294m/s2196m/s2147m/s2
In the full operating position294m/s2294m/s2294m/s2294m/s2294m/s2294m/s2294m/s2294m/s2
Vibration resistanceVibration rate10 to 55Hz10 to 45Hz10 to 55Hz10 to 45Hz10 to 55Hz10 to 55Hz10 to 55Hz
Double amplitude1.5mm
0.059in		1.0mm
0.039in		1.5mm
0.059in		1.0mm
0.039in		1.5mm
0.059in		1.5mm
0.059in		1.5mm
0.059in

Operating characteristics

CharacteristicsO.F.(N)
max.		R.F.(N)
min.		Pretravel (P.T.),
max. mm
inch		Movement
Differential (M.D.),
max. mm inch		Overtravel
(O.T.),
min. mm inch		Operating Position
(O.P.) mm inch
Actuator
Hinge lever1.181.960.240.493.0 0.1181.5 0.0596.0 0.23616.7±1.5 0.657±0.059
Roller lever1.181.960.240.493.0 0.1181.5 0.0596.0 0.23630.7±1.5 1.209±0.059
One-way roller lever1.960.493.0 0.1181.5 0.0596.0 0.23640.5±1.5 1.594±0.059
Hinge short lever2.940.592.0 0.0791.0 0.0393.5 0.13813.7±1.5 0.539±0.059
Short roller lever2.940.592.0 0.0791.0 0.0393.5 0.13827.7±1.5 1.091±0.059
One-way short roller lever2.940.592.0 0.0791.0 0.0393.5 0.13836.7±1.5 1.445±0.059

Protective characteristics

Protective constructionRubber cover typeTypes with socket and cord
IEC
IP60○○
IP63-○
IP64-○

------------------------------ Tab3 showing ------------------------------

Dimensions

  • Unit: mm in

1.Rubber cover

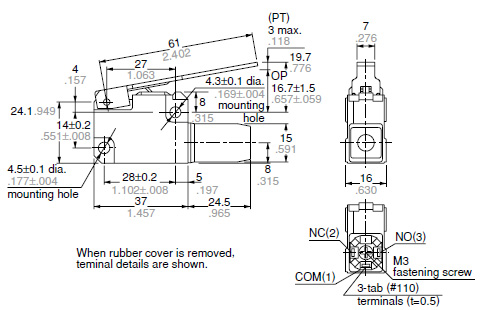

Hinge lever

AZ3512
AZ3522

AZ3512/AZ3522

AZ3522/AZ3512

General tolerance: ±0.4±0.016

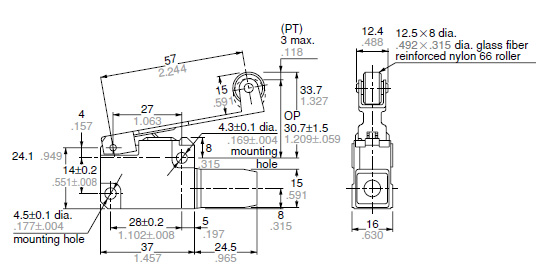

Roller lever

AZ3513
AZ3523

AZ3513/AZ3523

AZ3513/AZ3523

General tolerance: ±0.4±0.016

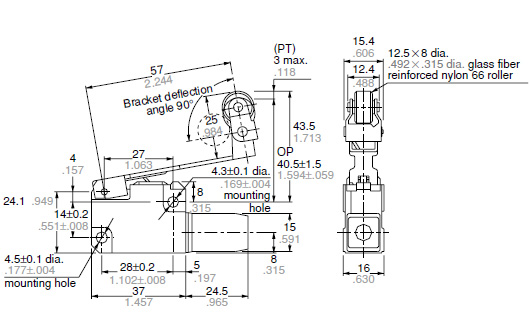

One-way roller lever

AZ3524

AZ3524

AZ3524

General tolerance: ±0.4±0.016

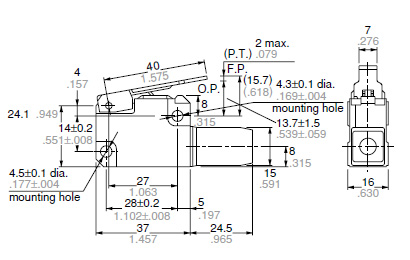

Hinge short lever

AZ3525

AZ3525

AZ3525

General tolerance: ±0.4±0.016

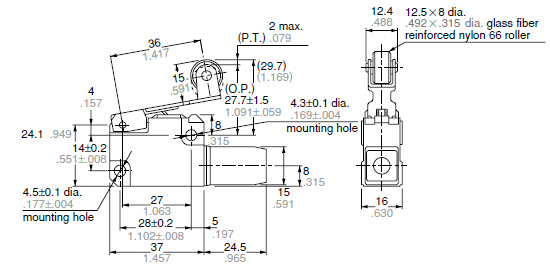

Short roller lever

AZ3526

AZ3526

AZ3526

General tolerance: ±0.4±0.016

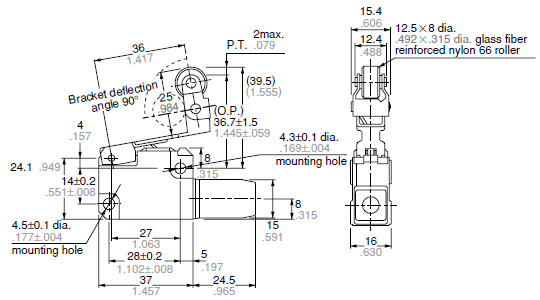

One-way short roller lever

AZ3527

AZ3527

General tolerance: ±0.4±0.016

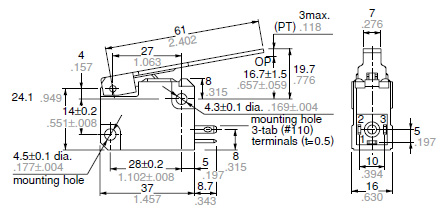

2.Exposed terminal type

Hinge lever

AZ3012
AZ3022

AZ3012/AZ3022

AZ3012/AZ3022

General tolerance: ±0.4±0.016

Note :

The following types are also available.
Roller lever: AZ3013, AZ3023
One-way roller lever: AZ3024
Hinge short lever: AZ3025
Short roller lever: AZ3026
One-way short roller lever: AZ3027

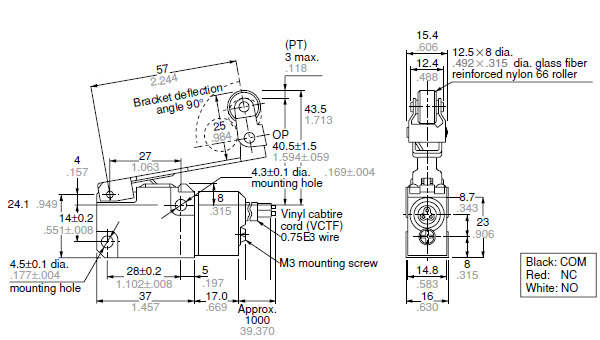

3.Socket with cord type

One-way roller lever

AZ3724
(Combination of the AZ3024 exposed terminal type and the AZ3807 socket with cord type)

AZ3724

AZ3724

General tolerance: ±0.4±0.016

Note :

The following types are also available.
Hinge lever: AZ3712, AZ3722
Roller lever: AZ3713, AZ3723
Hinge short lever: AZ3725
Short roller lever: AZ3726
One-way short roller lever: AZ3727
