Magnelimit (Discontinued Products)

  • Discontinued Products

  • Rating/ Performance

  • Dimensions

Ⅾiscontinued

Last time buy (JST)

June 30, 2023

We are sorry, the products have been discontinued. Please refer to the details of the discontinued products and the recommended substitutes list below.

------------------------------ Tab1 showing ------------------------------

Discontinued Products

------------------------------ Tab2 showing ------------------------------

Rating/ Performance

Ratings

Load typeResistance loadLamp loadGuidance load
125V AC5A1.5A3A
250V AC5A-3A
30V DC5A-1.5A

Note 1:Inductive load is a minimum 0.4 (AC) and time duration is maximum 7ms (DC).

Note 2:Lamp load has 10 times the inrush current.

Nore 3:Minute load ratings: 5mA 6V DC, 1mA 24V DC.

Switch operating features

Pretravel (P.T.)1.8mm 0.071inch max.
Movement differential (M.D.)0.2 to 0.8 mm
Release position (R.P.)4.0mm 0.157inch max.

Characteristics

ContactMaterialAu clud Ag alloy (Cadmium free)
Electrical capabilitiesInsulation resistance (initial)Min. 100Ω (measured at 500V DC insulation resistance)
Voltage resistanceContact distance: 1000V AC/1 min. (initial)
Distance between each pin and uncharged metal parts: 2100V AC/1 min.
Distance between each pin and earth: 2100V AC/1 min.
Mechanical capabilitesVibration resistance10 to 55 Hz, double amplitude of 1.5 mm
Shock resistance294 m/s2
LifeMechanical lifeMin. 100 thousand times (ON/OFF frequency 60 times/min.)
Electrical lifeMin. 50 thousand times (resistance load AC 250V 5A)
Min. 30 thousand times (lamp load AC 125V 1.5V)
ON/OFF frequency 20 times/min.
Protective capabilitiesIP40
Usage conditionsAmbient temperature–20 to +80℃ –4 to 176℉ (but not in a frozen environment.)
Ambient humidityMax. 95% RH
Tolerable operating frequencyMechanical: 60 times/min.
Electrical: 20 times/min.
Sustainability
(when using the enclosed metal plate)
9.8N {1kgf}(Note 2), 29.4N {3kgf}, 49N {5kgf}(Note 1)

Note 1 :5kgf types will be discontinued at the end of September 2019.

Note 2 :1kgf types will be discontinued at the end of September 2021.

------------------------------ Tab3 showing ------------------------------

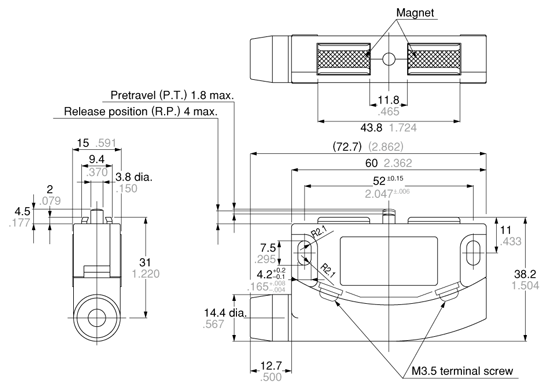

Dimensions

  • Unit: mm in

Magnelimit

Metal plate
