ESB30B103｜ESB30 Push Switches

Download

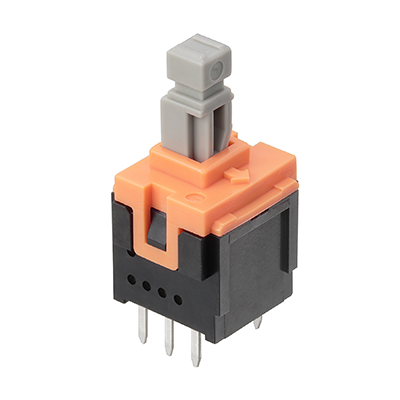

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

Product Number

ESB30B103

Part Number

ESB30B103

Product Name

 ESB30 Push Switches

Features

Long travel

Contact Us

*Specifications and design of the products are subject to change without notice for the product improvement.

Spec Detail

Specifications and design of the products are subject to change without notice for the product improvement.
ItemSpecifications
Part NumberESB30B103
Product NumberESB30B103
Rating50 μA 3 V DC to 0.2 A 14 V DC (Resistive load)
Temperature Range-40℃～+85℃
Heat Resistance+85℃ for 96 hours
Low Temperature Resistance-40℃ for 96 hours
Humidity Resistance+40 ℃, 90 % to 95 % RH for 96 hours
Non-loaded Life (Standard)10,000 cycles (Voltage drop; 0.2 V max.)
Loaded Life (Standard)10,000 cycles (Voltage drop; 0.2 V max.)
Non-loaded Life (Automotive)30,000 cycles (Voltage drop; 0.2 V max.)
Loaded Life (Automotive)30,000 cycles (Voltage drop; 0.2 V max.)
External dimensions (WxDxH)10.9 x 10 x 20.5 mm
Mounting Height12.5 mm
Lever Height20.5 mm
Lock Travel2.5 mm
Full Travel3.5 mm
Poles and Throws2-poles 2-throws
Operating ModeSelf-lock
Switching ModeNon-shorting
Operating Force3.5 N ±1.5 N
Mounting typeDip type
Terminal typeStraight terminal
PackagingTray Pack
Minimum Quantity/Packing Unit200 pcs.
Quantity/Carton1,000 pcs.
