Two circuits detection Switches | Seal Type Micro Switches

Download

  • Lineup

  • Basic Information

------------------------------ Tab1 showing ------------------------------

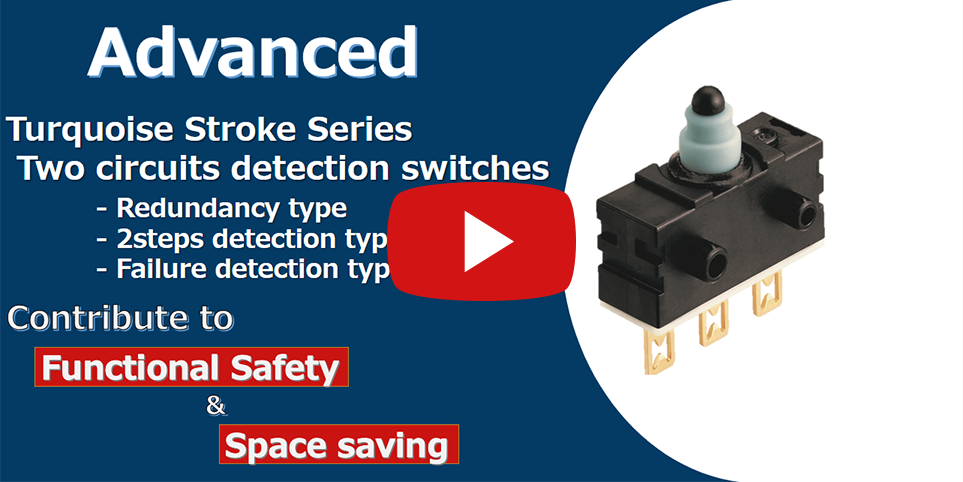

One switch has two sliding contact structures inside

asqd1

No foreign certifications are acquired as of now.

Please refer to "the latest product specifications" when designing your product.
Please refer to "Cautions For Use" in the catalog, and "Related Information" on our website.

    • Features

      • Three types are available
        1. Failure detection type: Not only ON / OFF but also all failures can be detected
        2. Two Steps detection type: Just one switch can detect 2 steps movement
        3. Redundancy type: Even if a failure happen on one circuit, other one can keep on working
      • Contact force does not depend on the operation stroke
      • High contact reliability to support low switching loads
      • Highly effective sealing for resistance against adverse environments(IP67)
      • Silent operation with sliding contacts

    • Typical Applications

      • Automobiles：Detection of door open / close, Position detection for closer assist function starts
      • Home appliances：Detection of door open / close
      • Others：For functional safety

    ------------------------------ Always showing ------------------------------

    • Lineup
    • Discontinued Products
    Two circuits detection Switches Product number list
    No matching products found.
    • Please review your search criteria and try again.
    • If you have any questions, feel free to contact us.

      • Note

        Please refer to the product number detail page for the operating force (OF2) required for two-step detection type.
