EVQPAG05R｜5N Type(Discontinued)

Download

Discontinued

Last time buy (JST)

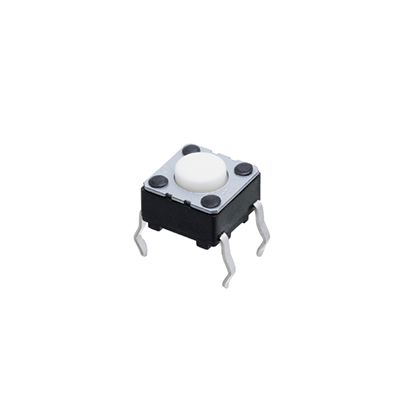

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

    Product Number

    EVQPAG05R

    Part Number

    EVQPAG05R

    Product Name

    		 5N Type(Discontinued)

    Features

    Wide mounting height variety: 4.3 to 9.5mm. Vertical operational type with snap-in terminals.
    Substitute
    Sub Prod No.
    Sub Part No.
    Remark

    Spec Detail

    ItemSpecifications
    Part NumberEVQPAG05R
    Product NumberEVQPAG05R
    Type:EVQPA
    External dimensions (LxW) (mm)6.0 x 6.0
    External dimensions (H) (mm)5.00
    Mounting Height (mm)5.00
    Dimensions excluding push plate (mm)3.90
    Operating directionTop push
    Applicable solderingDIP
    TypeSnap action / Push-on type SPST
    Rating10μA 2V DC to 20mA 15V DC (Resistive load)
    Contact Resistance (mΩ max.)50
    Insulation Resistance (MΩ min. at 100V DC)50
    Dielectric Withstanding Voltage 250 V AC (for 1minute)
    Bouncing3ms max. (ON)
    8ms max. (OFF)
    Operating Force (N)2.6
    Travel TypeShort Push Travel
    Travel (mm)0.25
    Operating Life50,000 cycles
    Operating Temperature-20℃ to +70℃
    Storage Temperature-40℃ to +85℃ (Bulk)
    Terminal typeBulk
    Push Plate
    (Actuator)    		With
    Push Plate ColorRed
    Ground TerminalWithout
    BossWithout
    PackagingPolyethylene Bag (Bulk)
    Minimum Quantity/Packing Unit500 pcs.
    Quantity/Carton10,000 pcs.
