AQC145｜AQ-C Solid State Relay(Discontinued)
Download
Discontinued
Last time buy (JST)

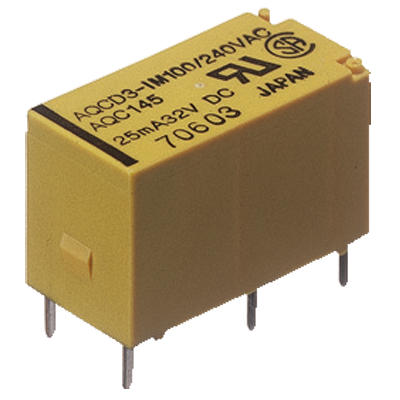

*Photo may vary from actual product.
This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.
| Product Number | AQCD3-IM100/240VAC |
|---|---|
| Part Number | AQC145 |
| Details | AC input |
| Product Name | AQ-C Solid State Relay(Discontinued) |
| Features | Miniature DIL SSR |
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | AQC145 |
| Product Number | AQCD3-IM100/240VAC |
| Product details | AC input |
| Type of load | AC input |
| Method | Random |
| Package | DIL4pin |
| Terminal shape | Standard PC board terminal |
| Packing style | Carton |
| Packing: Carton (pcs.) | 50 |
| Packing: Case (pcs.) | 500 |
| Input voltage | 80 to 250V AC |
| Snubber circuit | Without snubber circuit |
Ratings
| Item | Specifications |
|---|---|
| Input side: Input voltage | 80 to 240V AC |
| Input side:Drop-out voltage | Min. 10V AC |
| Output side: Max. load current | 0.1 to 25mA |
| Output side: Load voltage | 4 to 32V DC |
| Output side: Max. OFF-State leakage current | 5μA |
Characteristics
| Item | Specifications |
|---|---|
| Operate time, Max. | 20ms |
| Release time, Max. | 20ms |
| I/O isolation voltage | 2,500 V AC between input and output |
| Ambient temperature | -30℃ to +80℃ -22°F to +176°F |
| Storage temperature | -30℃ to +100℃ -22°F to +212°F |
Information on Compliance with Standards
| Status | Status | Information on Compliance | ||
|---|---|---|---|---|
| UL | Approval | File No. | E43149 (UL508) | |
| Rating | 25mA 32V DC Input 80 to 250V AC | |||
| Remarks | AC input Please contact us for TÜV certification. | |||
| Last update | ||||
| CSA | Approval | File No. | LR26550 (C22.2 No.14) | |
| Rating | 25mA 32V DC Input 80 to 250V AC | |||
| Remarks | AC input Please contact us for TÜV certification. | |||
| Last update | ||||
| TUV | N/A | File No. | - | |
| Rating | - | |||
| Remarks | Standard product do not have marking. | |||
| Last update | - | |||
| Mark on products* | ||||
* The "Mark on products" field shows the standards' certificate type marked to products. Note that not all certified products have a certificate mark affixed to them.
