AEP17012｜EP Relays

Download

Discontinued

Last time buy (JST)

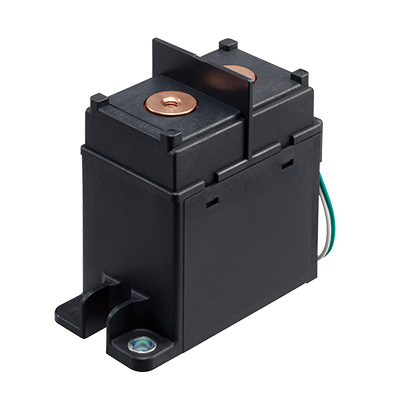

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

Product Number

AEP17012

Part Number

AEP17012

Product Name

 EP Relays

Features

High capacity of Max. 1,000 V DC Cut-off possible
Substitute
Sub Prod No.
Sub Part No.
Remark

Spec Detail

ItemSpecifications
Part NumberAEP17012
Product NumberAEP17012
Protective constructionSealed capsule
Operating functionSingle Side Stable Type
Terminal shapeLead wire type
AccessoriesTwo dedicated M6 bolts
Rated coil voltage12V DC
Operate voltageMax. 75% V of rated coil voltage (initial) (at 20℃)
Release voltageMin. 8.3% V of rated coil voltage (initial) (at 20℃)
Rated operating power6W
Contact arrangement1 Form A
Contact materialCopper alloy
Contact rating (resistive)200A 400V DC
Max. switching voltage1,000V DC
Max. switching current200A
Min. switching load (reference value)1A 12V DC
Dielectric strength (initial)
Between open contacts		2500Vrms
Dielectric strength (initial)
Between contact and coil		2500Vrms
Expected life; Mechanical lifeMin. 200x103 ope.
Expected life; Electrical life60 A 1,000 V DC Min. 103ope. (switching frequency: 6 times/min) (Resistive load)
200 A 400 V DC Min. 3x103ope. (switching frequency: 20 times/min) (Resistive load)
Conditions for usage, transport and storageAmbient temperature: -40° to +80°C (storage: Max. +85°C)
Humidity: 5 to 85% RH (Avoid icing and condensation)
